Tweco Victor Thermal Dynamics Power Module Upgrade Kit User Manual
Page 5
Manual 0-5326
5

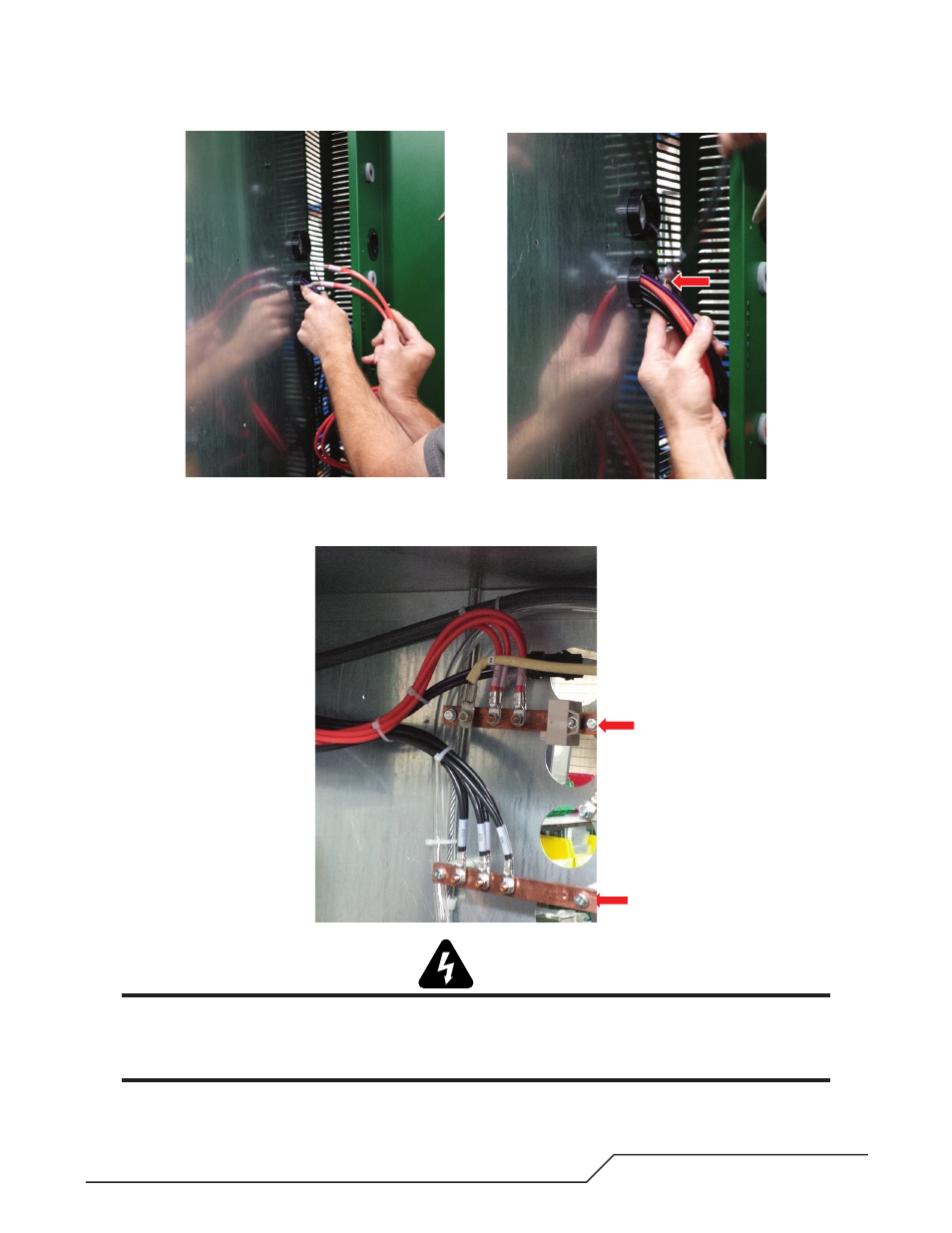

12. Pass orange and black power cables through center panel to the coolant side as in the lower holes and wire
tie the bundle together.
Art # A-12329
13. Attach orange and black power cables to the buss bars using a 10mm nut driver. Tighten the cables in place
making sure they are not touching the buss bars.
Art # A-12330
WARNING
Ensure that the orange cables are attached to the top bar and Black to the bottom.
NOTE
Depending on the current range, wires maybe routed from the center up or from the top down. Either is
acceptable as long as the color code is correct and the wire is not touching the buss bar
