Tweco Victor Thermal Dynamics Power Module Upgrade Kit User Manual
Page 14
14
Manual 0-5326

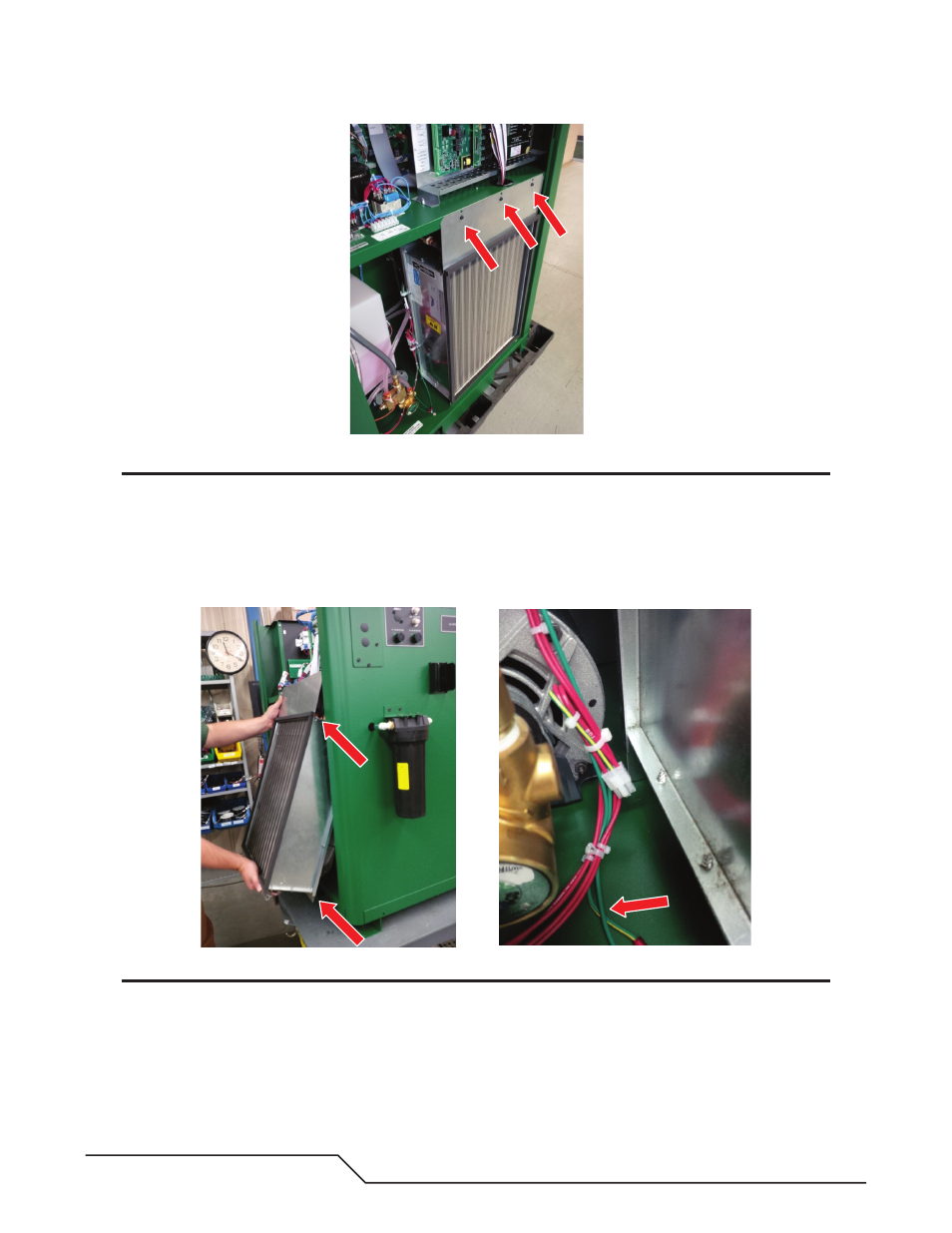

35. Carefully lift the sheet metal shelf with the CCM on it and rock the radiator back into position. Ensure that
the ground wires are not pinched under the radiator and reinstall the same screws.
Art # A-12362
NOTE
If the fins on the radiator appear to be damaged after installation they can be combed out using a standard
hair comb found at any local store.
For a 300 and 400A upgrade
36. Insert the top of the radiator into the top shelf allowing the lower tabs to be lined up and drop into place.
Ensure that the ground wires are not pinched under the radiator and reinstall the same screws.
Art # A-12363
NOTE
If the fins on the radiator appear to be damaged after installation they can be combed out using a standard
hair comb found at any local store.
