4-10 SM-RDM-2000 ReplAceMent pARtS
SECTION 4:
REPLACEMENT PARTS
4
2
1
3

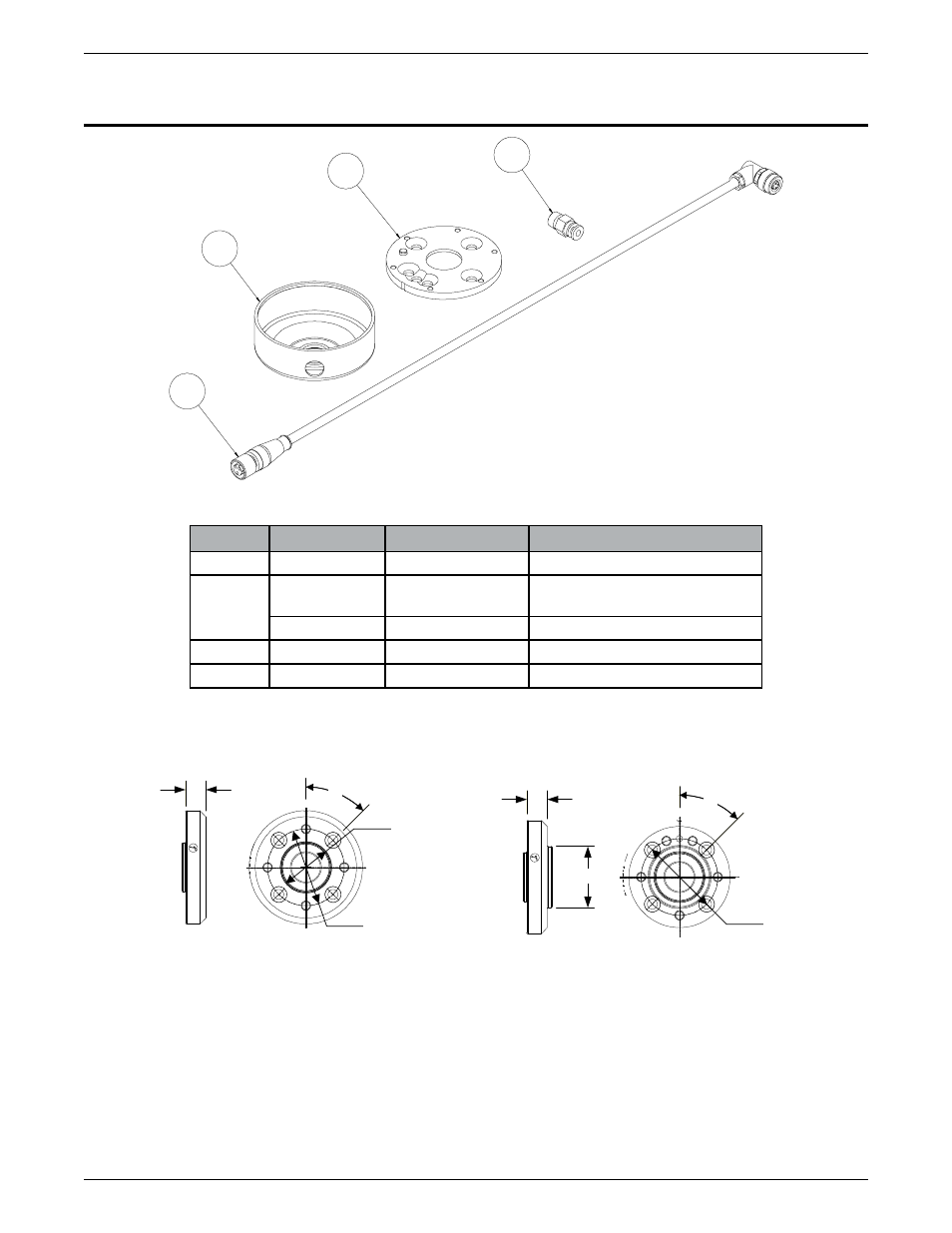

Replacement Parts for RDM-2000
Item No. Part No. Stock No. Description
1 RDM-2000-b 3500-1197 RDM-2000 Deflection Mount Assembly
2 RDM-2000-Jc 3044-1842 e-Stop cable Assembly - 18”
(457.2mm)***
RDM-2000-ec 3500-1172 e-Stop cable Assembly – 20’ (6,10m)
3 RDM-2000-Ap 3500-1174 Rear Adapter plate (Aluminum)
4 Af532-18npt-S 3500-1385 Air fitting (Accepts 5/32” tubing)
*** Standard on all RDM Deflection Mounts
C B°
Ø A
Ø D
R
D
M
-A
P-X
C B°
Ø D
Ø A
R
DM
-A
P-X
TYPE A
TYPE B
Adapter Plates for RDM-2000
Tweco Robotics offers many different adapter plates to use
with the RDM-2000 Series deflection mount. The adapter
plate acts as an additional insulator to protect the robot
arm as well as a mechanical breakaway in the event the
switching does not stop the robot or peripheral motion.
The following table will aid in determining the proper
adapter plate required too install the deflection mount to
your robot arm.
