TRANSTIG 300Pi
KEY SPARE PARTS 6-2 Manual 0-5309
A-12121

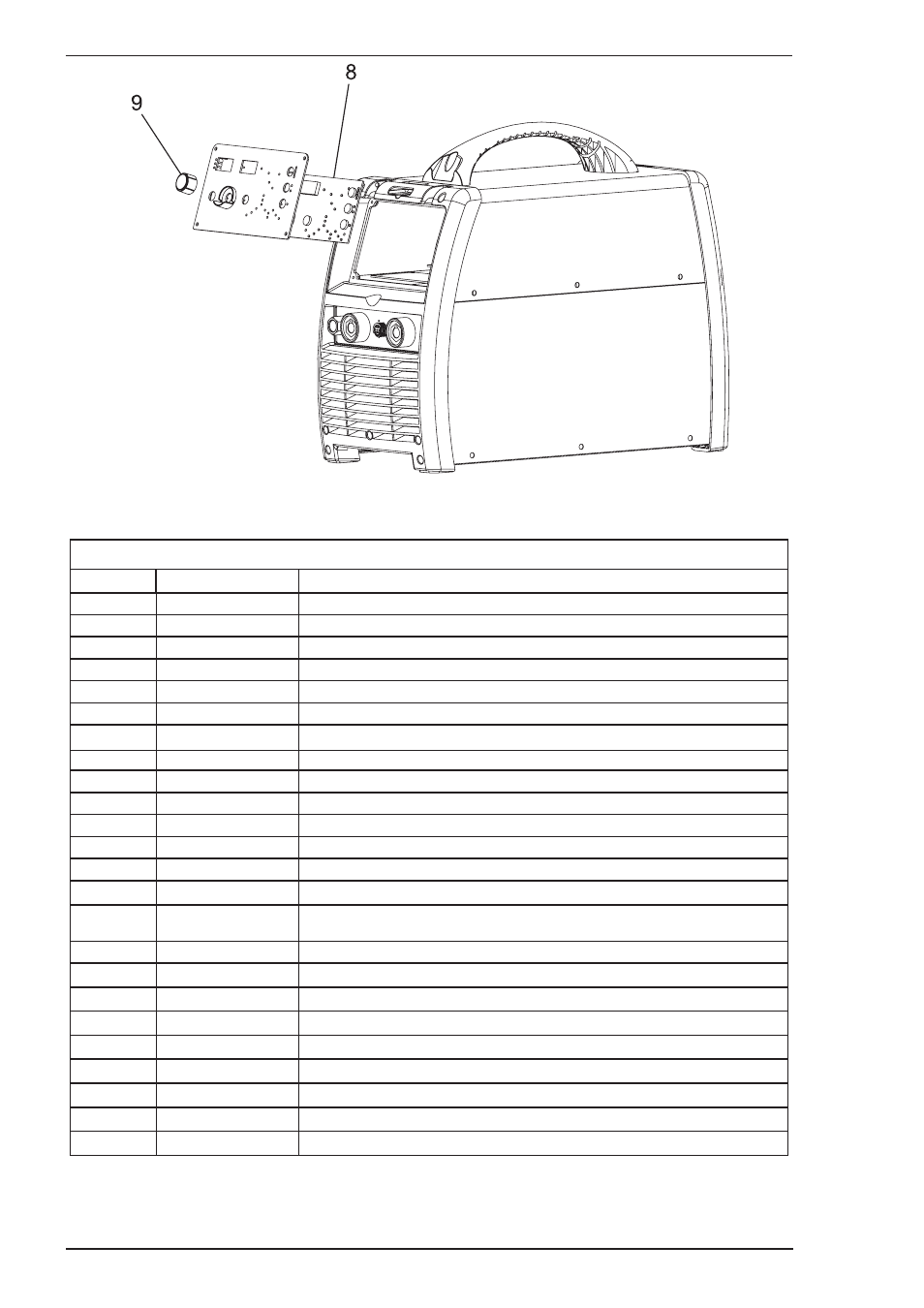

Figure 6-1
TRANSTIG 300Pi POWER SOURCE SPARE PARTS
ITEM PART NUMBER DESCRIPTION
1 W7006400 PCB Assembly, Power Inverter
2 W7006401 PCB EMC Filter
3 W7006402 PCB Filter Control
4 W7006403 PCB Aux Power Supply
5 W7006404 PCB Control
6 W7006405 PCB Assembly, Input Rectifier / DC Bus
7 W7006406 PCB HF
8 W7006407 PCB Display
9 W7006408 Knob Control
10 W7006416 Fan Assembly
11 W7006417 Shielding Gas Inlet Quick Connect
12 W7006409 Mains Supply Switch 3 Pole
13 W7006418 Shielding Gas Outlet 5/8-18
14 W7006419 Dinse Socket 50mm 2
15 W7006420
Control Socket 8 pin (Note that 8 pin control plug is part number
UOA706900)
16 W7006410 Inductor, Welding
17 W7006411 Coil, Coupling, HF
18 W7006412 Transformer, Welding
19 W7006421 Gas Solenoid Assembly
20 W7006413 PCB Output Diode
21 W7006414 Output Diode
22 W7006415 Control Socket 4 Pin
23 W7006422 CT Output(not shown)
24 704461 Dinse Plug Male 50mm 2 (not shown)
Table 6-1
