ASSEMBLY PROCEDURES 8-6 Manual -5282
TRANSARC 130i

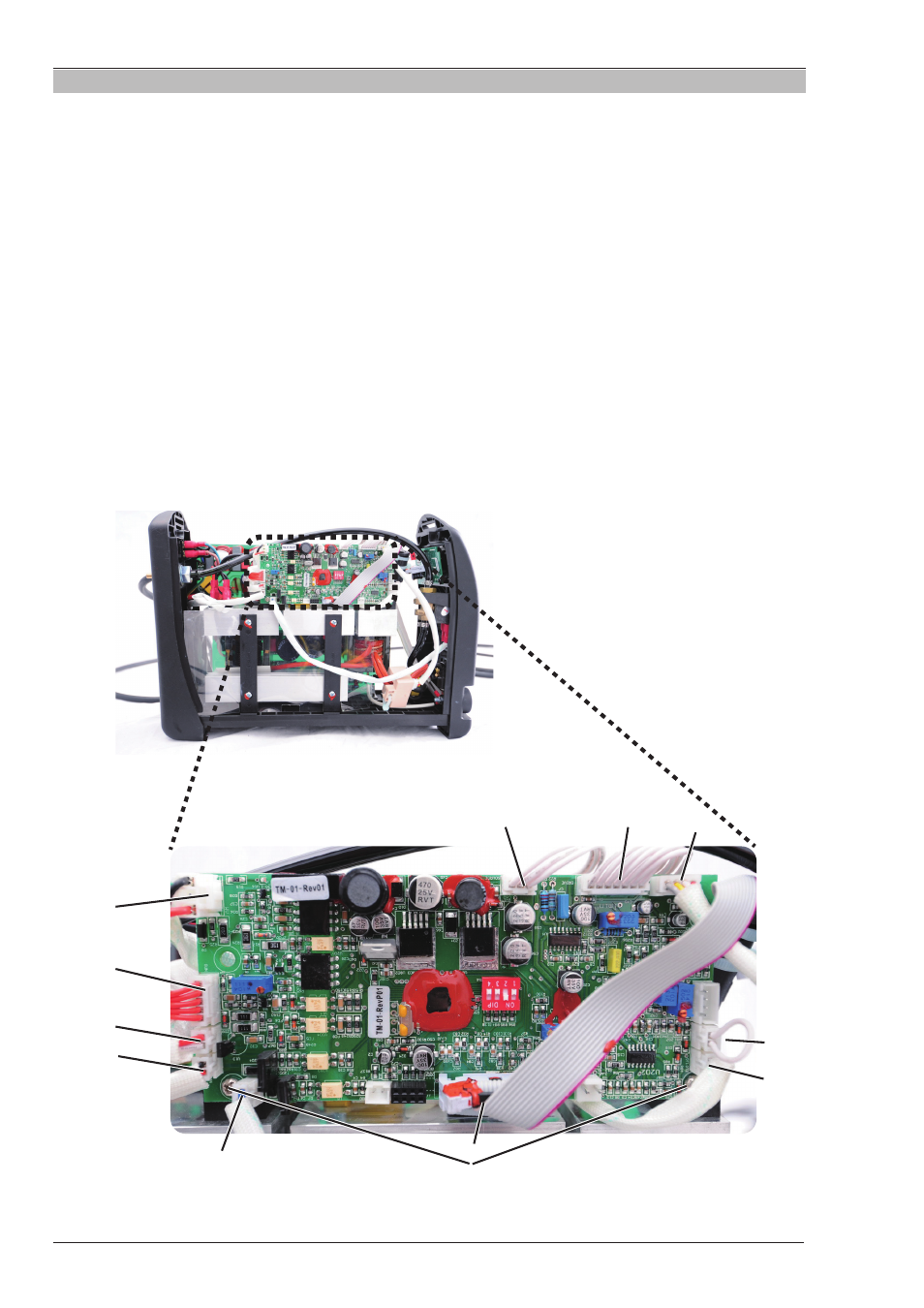

8.06 Installing Control PCB
1. Install 2 screws on control PCB.
2 Plug WV harness to WV connector.
3. Plug GUN harness to GUN connector
4. Plug DY harness to DY connector.
5. Plug FAN harness to FAN connector.
6. Plug QF harness to QF connector.
7. Plug MB harness to MB connector.
8. Plug OT2 harness to OT2 connector.
9. Plug OT1 harness to OT1 connector.
10. Plug IFB harness to IFB connector.
11. Plug DRIVE harness to DRIVE connector.
12. Plug SOURCE harness to SOURCE connector.
Ensure to plug all harness to the control PCB.
2
3
4
6
1
8
9
10
12
5
7
11
A-11856
