FABRICATOR 281
April 10, 2006 3-5
3.07 Mount the A2281 Wire Feeder
1. Mount the A2281 wire feeder unit on top of the
Fabricator 281 power supply by engaging its
swivel receptacle into the turret on top of the
Fabricator 281. Refer to Figure 3-2.
NOTE
To minimize the lifting weight of the A2281
wire feeder unit, do not install the wire spool
on it until it has been mounted.
Turret
Art # A-07454

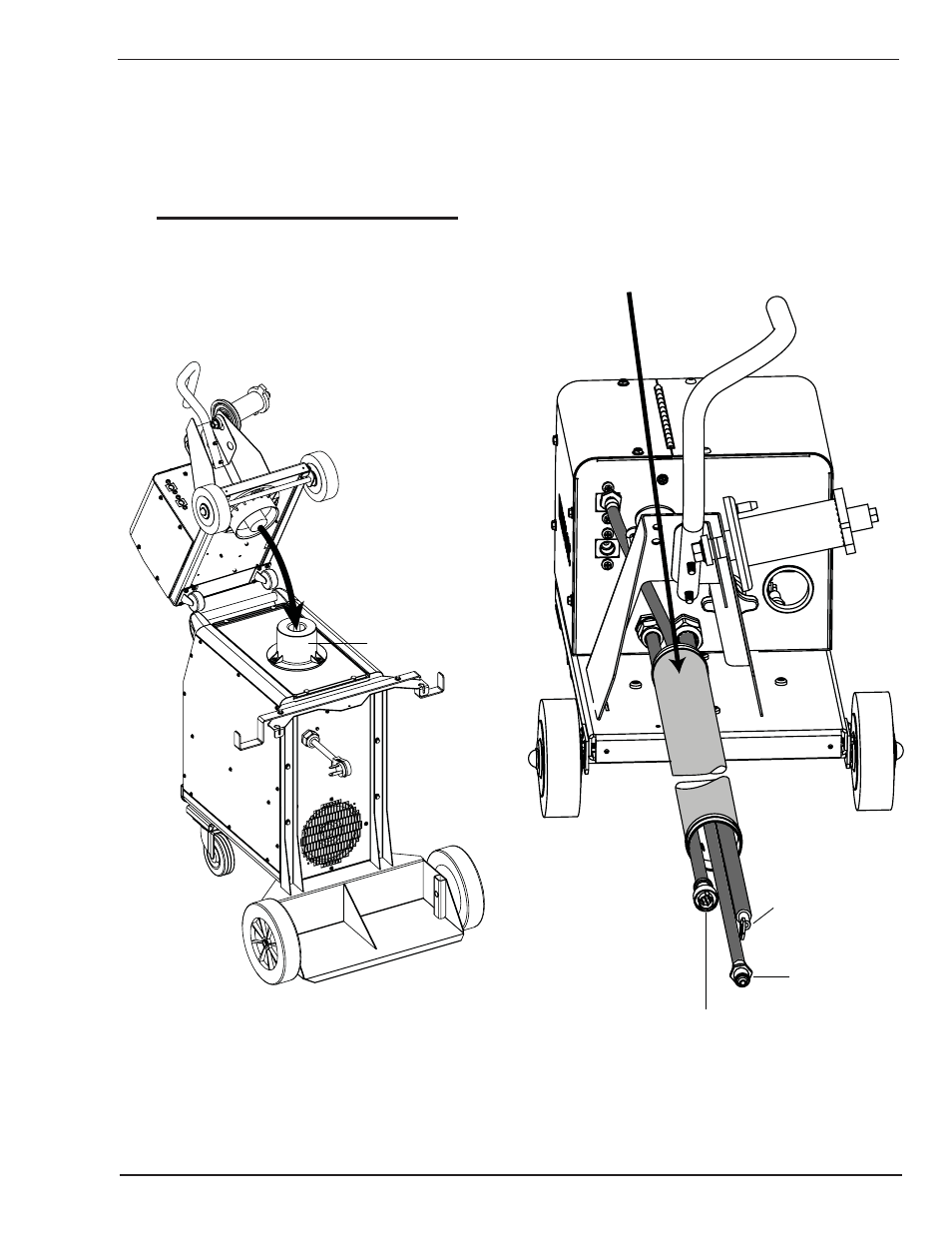

Figure 3-2: Mount the Wire Feeder on to the Turret
2. Attach the supplied 26 ft (8m) Interconnection
Cable Assembly to the the A2281 wire feeder's
rear panel by firmly threading each of the three
cables' connectors to their mating sockets. Use
the power supply end of the cable as a reference
guide as shown in Figure 3-3.
To Positive Welding
Terminal
To Gas Regulator
26ft (8m) Interconnection Cable Assembly
To 7-pin Amphenol Socket on Front Panel
Art # A-07455
Figure 3-3: Attach the Interconnection Cable Assembly
