FABRICATOR 251
APPENDIX A-4 Manual No. 0-4847

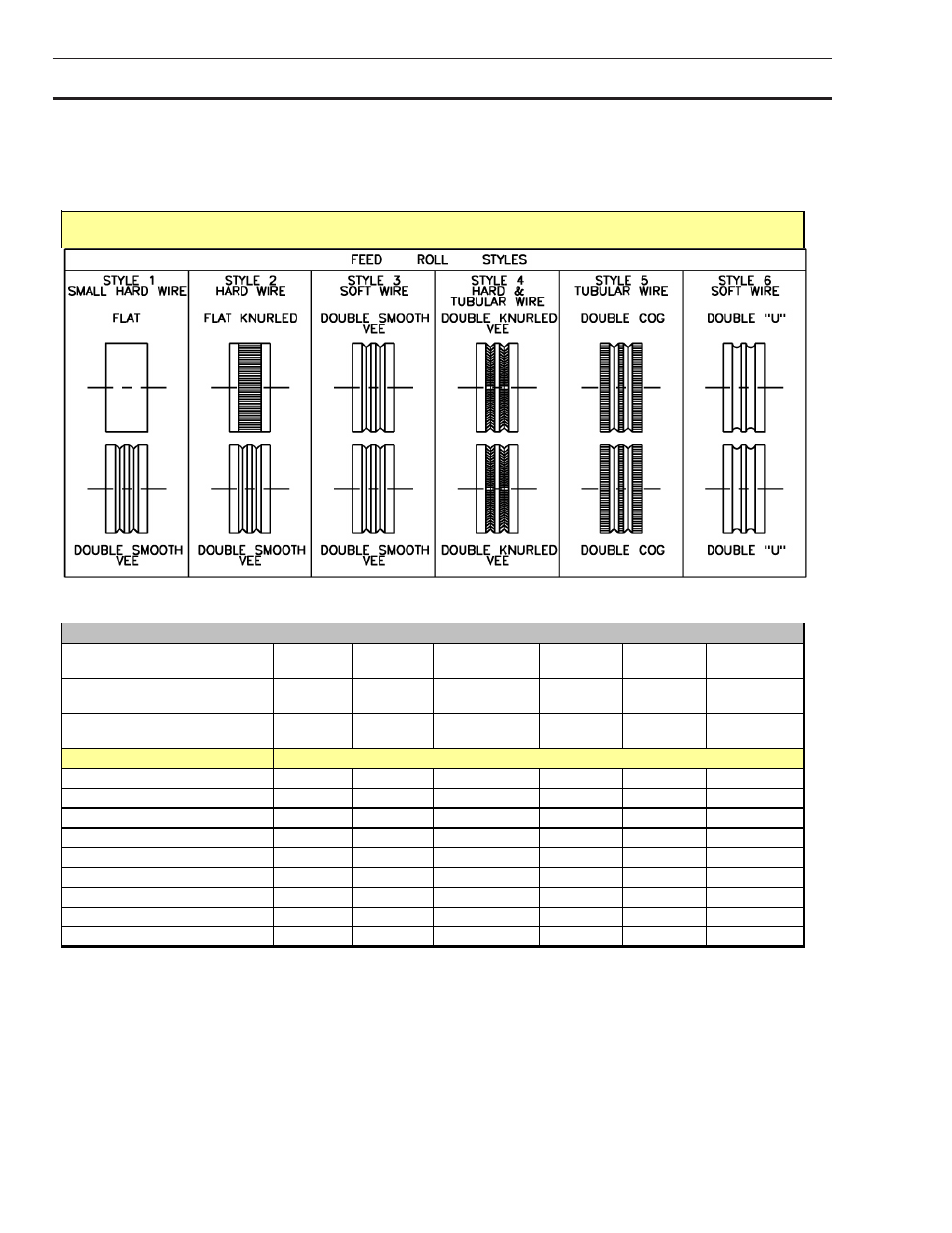

Style 1 Style 2 Style 3 Style 4 Style 5 Style 6
Top Flat Flat Knurled
Double Smooth
"V"
Double
Knurled "V" Double Cog Double "U"
Bottom
Double
Smooth "V"
Double
Smooth "V"
Double Smooth
"V"
Double
Knurled "V" Double Cog Double "U"
Wire Type Hard Hard Soft/Hard/Tubular Hard/Tubular Tubular Soft (Aluminum)
Wire Size
.023" / 0.6mm 375980-031 - - - - -
.030", .035" / 0.8, 0.9mm 375980-001 375980-003 375980-010 - - -
.030", .035", .045" / 0.8, 0.9, 1.2mm 375980-028* 375980-029 - - - -
.035" / 0.9mm 375980-040* - - - - 375980-032
.035", .045" 3/64" / 0.9, 1.2, 1.2mm - - 375980-030 - - -
.045" / 1.2mm 375980-002* 375980-004 - 375980-092 375980-022 -
3/64 / 1.2mm - - 375980-011 - - 375980-033
.052" / 1.3mm 375980-090* - 375980-012 - - -
.052", 1/16" / 1.3, 1.6mm - - 375980-017 375980-023 -
Notes: 1) One Kit (# 375980-028) is supplied standard w ith each w ire feeder.
2) Drive Roll Kits include: Drive Rolls; Input & Output Guides
3) Narrow 30° "V"
DRIVE ROLL KITS (#375980-Series) 2 ROLL
APPENDIX 3: FEEDROLL KITS
