FABRICATOR 251

Manual No. 0-4847

3-13

INSTALLATION

3.15 Spool Gun Attachment

A spool gun can readily be used with the Fabricator 251 power supply.

1. Attach appropriate input gas to the Spool Gun input gas connection on the rear of the unit. (Refer to Figure. 3-

13)

2. Attach the Spool Gun control cable and gas hose to the 10 pin socket and the Spool Gun Gas Outlet on the

front of the unit. (Refer to Figure. 3-13)

Front Panel

Rear Panel

Spool Gun
Gas Input
Connection

Main Gun
Gas Input
Connection

Spool Gun
10 Pin
Socket

Spool Gun
Gas Outlet
Connection

Art # A-07345_AC

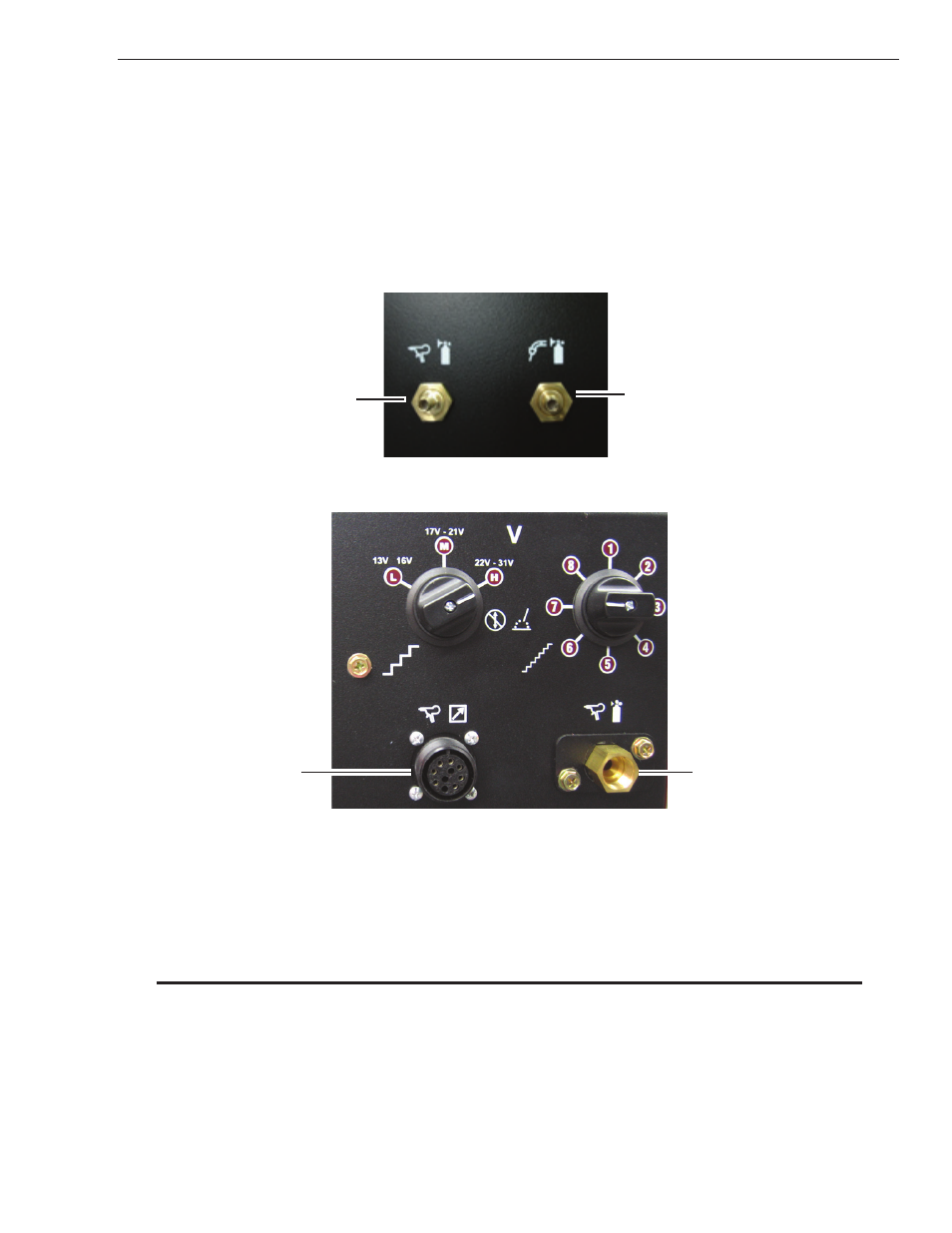

Figure 3-13 Spool Gun Connections

NOTE

When the SPOOL GUN is properly attached and the trigger is depressed, the system automatically dis-
ables the internal wire feed and gas controls and selects the SPOOL GUN feeder and gas control.
