arcmaster 175 te instaLLation
Installation
3-2 Manual 0-5116
Refer to Figure 3-1:
1. Connect end of ground (GREEN or GREEN/YELLOW) conductor to a suitable ground. Use a grounding
method that complies with all applicable electrical codes.
2. Connect ends of line 1 (BLUE) and line 2 (BROWN) input conductors to a de-energized line disconnect
switch.
3. Use Table 3-1 as a guide to select line fuses for the disconnect switch.
Input Voltage
Fuse Size
230V
40 Amps
Table 3-1: Electrical Connections
Fuse size is based on not more than 200 percent of the rated input amperage of the welding power source
(Based on Article 630, National Electrical Code).
Ground Terminal
Primary Power Cable
Line Fuse
Line Disconnect Switch
Ground Conductor
Art #: A-08462_AB

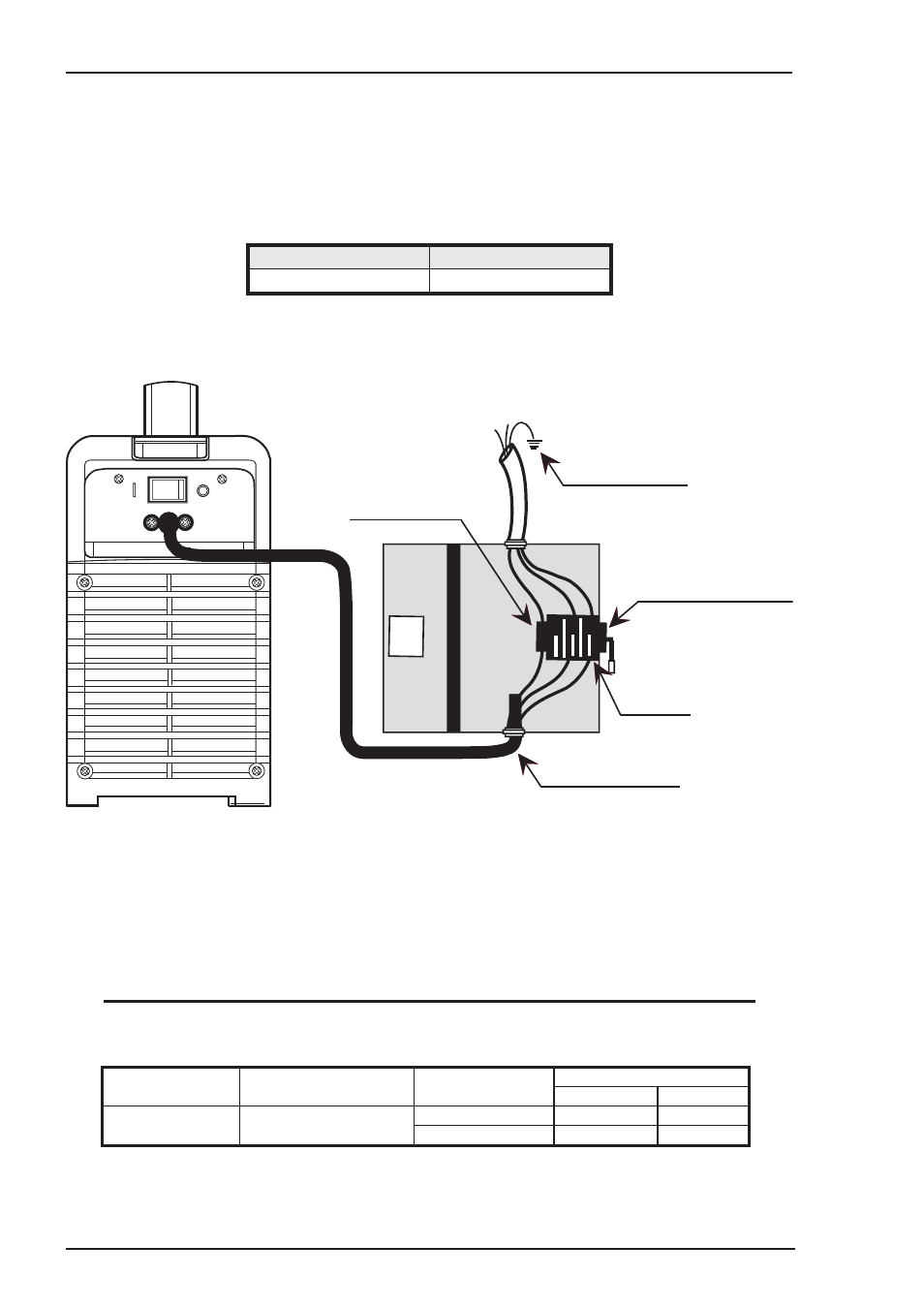

Figure 3-1: Electrical Input Connections
Input Power
Each unit incorporates an INRUSH circuit. When the MAIN CIRCUIT SWITCH is turned on, the inrush circuit
provides pre-charging for the input capacitors. A relay in the Power Control Assembly (PCA) will turn on after
the input capacitors have charged to operating voltage (after approximately 5 seconds)
NOTE
Damage to the PCA could occur if 265 VAC or higher is applied to the Primary Power Cable.
TIG
STICK
230V/25A
175A@20%
-
230V/40A
-
175A@20%
Arc Master 175 TE
13 AWG (1.5mm2)
Model
Primary Supply Lead Size
(Factory Fitted)
Minimum Primary
Current Circuit Size
Current & Duty Cycle
Table 3-2: Primary Supply Lead
