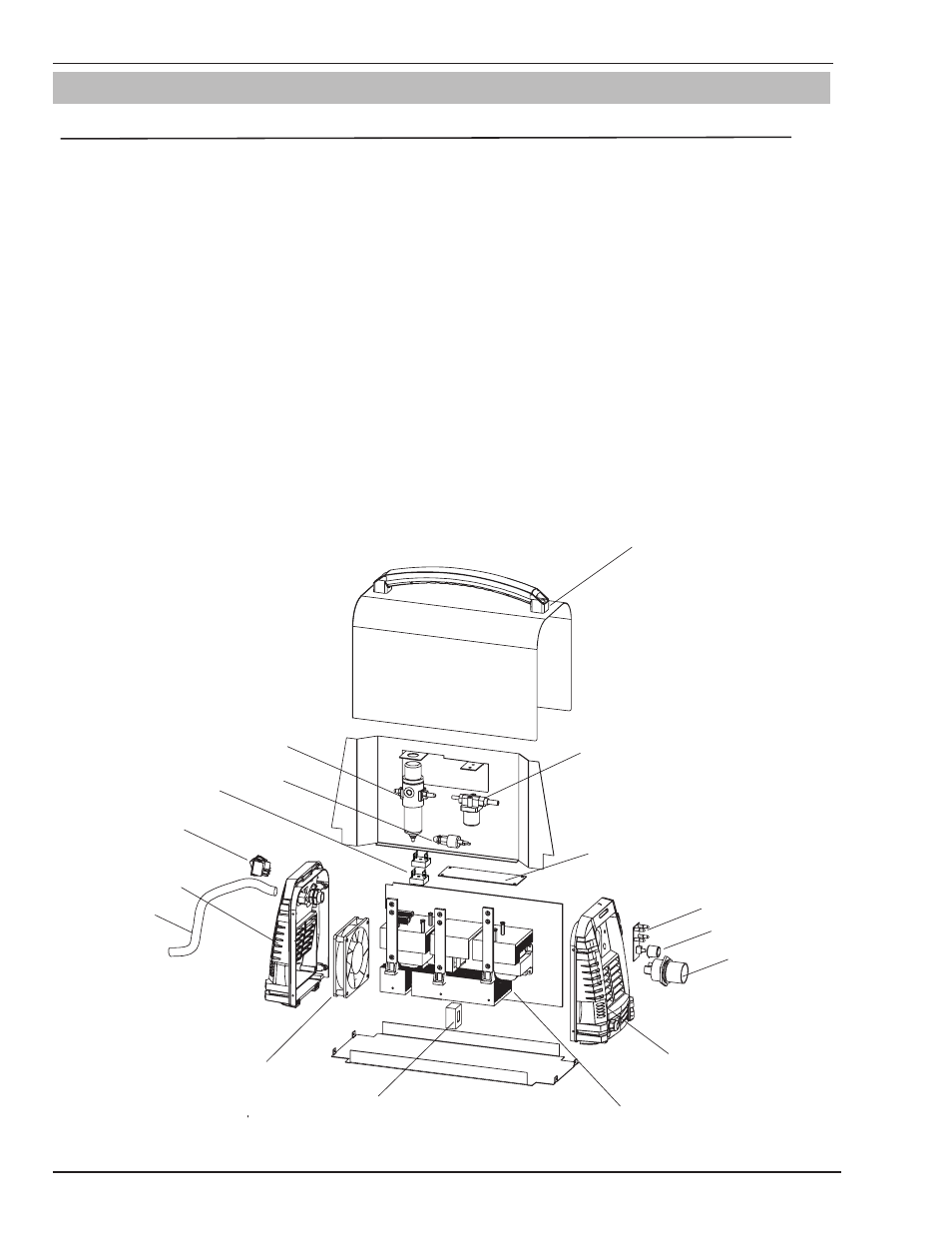

6.02 Power Supply Replacement Parts
Item # Qty Description Catalog #
1 1 Control PCB assembly 9-0077
2 1 Front Control PCB assembly 9-0076
3 1 Main PCB assembly 9-0079
4 1 Regulator 9-0081
5 1 Solenoid assembly 9-0082
6 1 Pressure Switch 9-0075
7 1 Front Panel with Label 9-0071
8 1 Rear Panel with Label 9-0072
9 1 Cover with Labels 9-0080
10 1 Hall Current Sensor 9-0088
11 1 CM15mm Cutting Control Knob 9-0073
12 1 CM15mm On/Off Switch 9-0074
13 1 ATC Connection 9-0083
14 1 Fan 9-0042
15 1 AC/DC Rectifier 9-0049
16 1 Power Cord 9-0025
17 1 CM15mm Carry Bag (not shown) 9-0085
18 1 Gloves (not shown) 9-0086
19 1 Glasses (not shown) 9-0087
9
5
1
2
11
13
7
3
15
10
14
8
12
6
4
Art# A-09387-AE
16
