Cutmaster 15mm
INTRODUCTION 2-4 Manual 0-5178
2.05 Torch Specifications

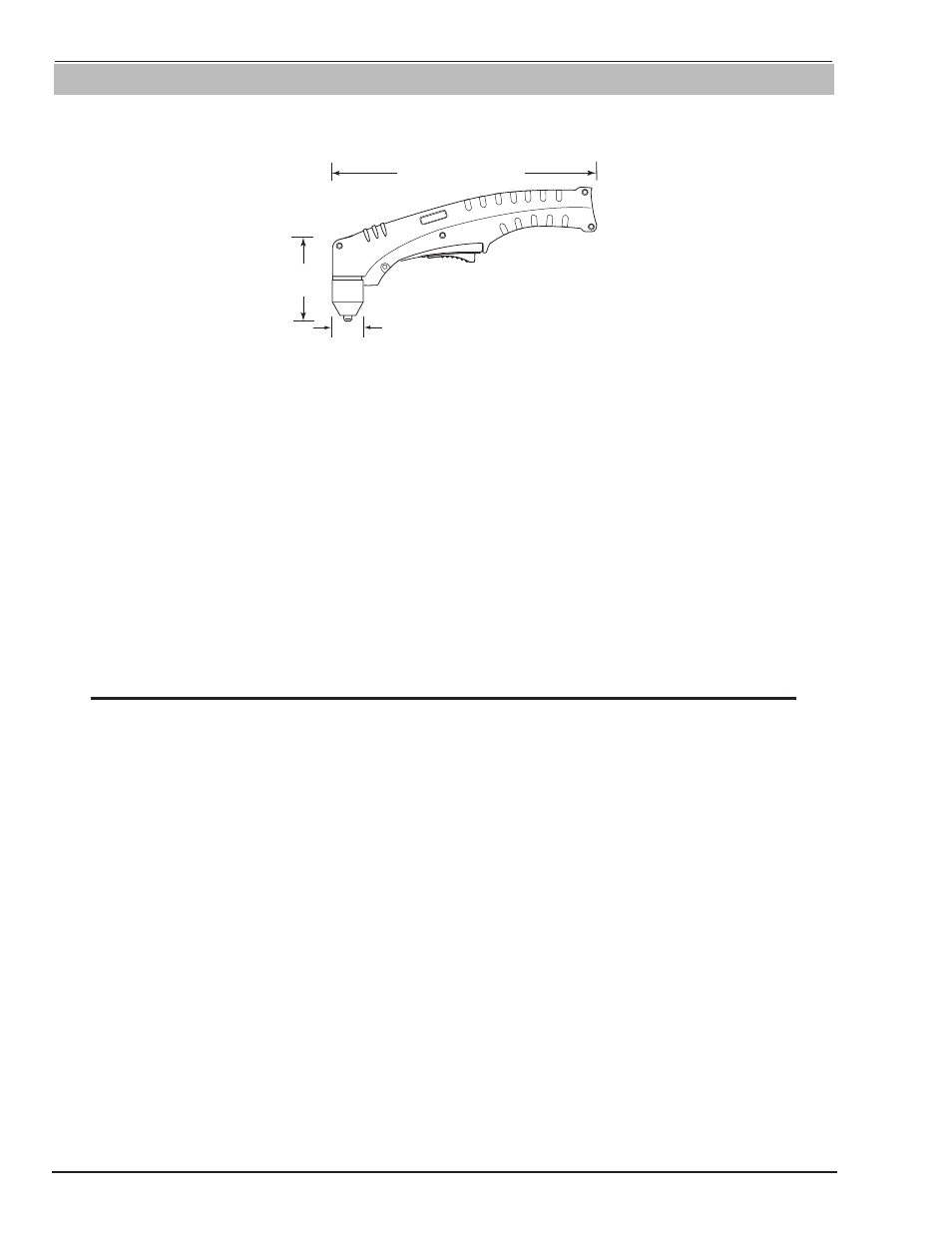

A. Torch Configuration and Dimensions
The torch head is at 75° to the torch handle. The torch includes a torch handle and torch trigger assembly.
10.125" (257 mm)
3.75"
(95 mm)
1.17" (29 mm)
Art # A-03322_AB
Torch Configuration and Dimensions
B. Torch Leads Lengths
Leads are available in 10 ft (3 m) lengths .
C. Parts-In-Place (PIP)
Torch has built-in switch.
12 vdc circuit rating
D. Type of Cooling
Combination of ambient air and gas stream through torch.
E. SL60 Torch Ratings (Refer to Note)
NOTE
Ratings shown apply to the SL60 Torch only. Refer to the Specifications chart on page 2T-1 for CutMaster
15mm data.
F. Plasma Power Supply Used With
• Thermal Dynamics CutMaster 15mm
