cutmaster 15mm
INSTALLATION 3-2 Manual 0-5178
3.03 Primary Input Power Connections
Power Cord and Plug
This power supply comes installed with a input power cable with no plug, single-phase input power.
CAUTION
Check your power source for correct voltage before plugging in or connecting the unit. The primary power
source, fuse, and any extension cords used must conform to local electrical code and the recommended
circuit protection and wiring requirements as specified in Section 2.
Input Voltage (VAC) Rated Output
Amps (RMS) input at rated
output, 60 Hz, single-phase
kVA
115V, 16A Circuit 20A, 88V 21.3 2.5
115V, 32A Circuit 27A, 91V 21.3 3.5
230V, 16A Circuit 40A, 96V 23-21.4 4.8
3.04 Air Supply Connections
A. Connecting Air Supply to Unit
The connection is the same for compressed air or industrial compressed air in gas cylinders.
1. Connect the gas line to the compressed air inlet port at the appropriate pressure.

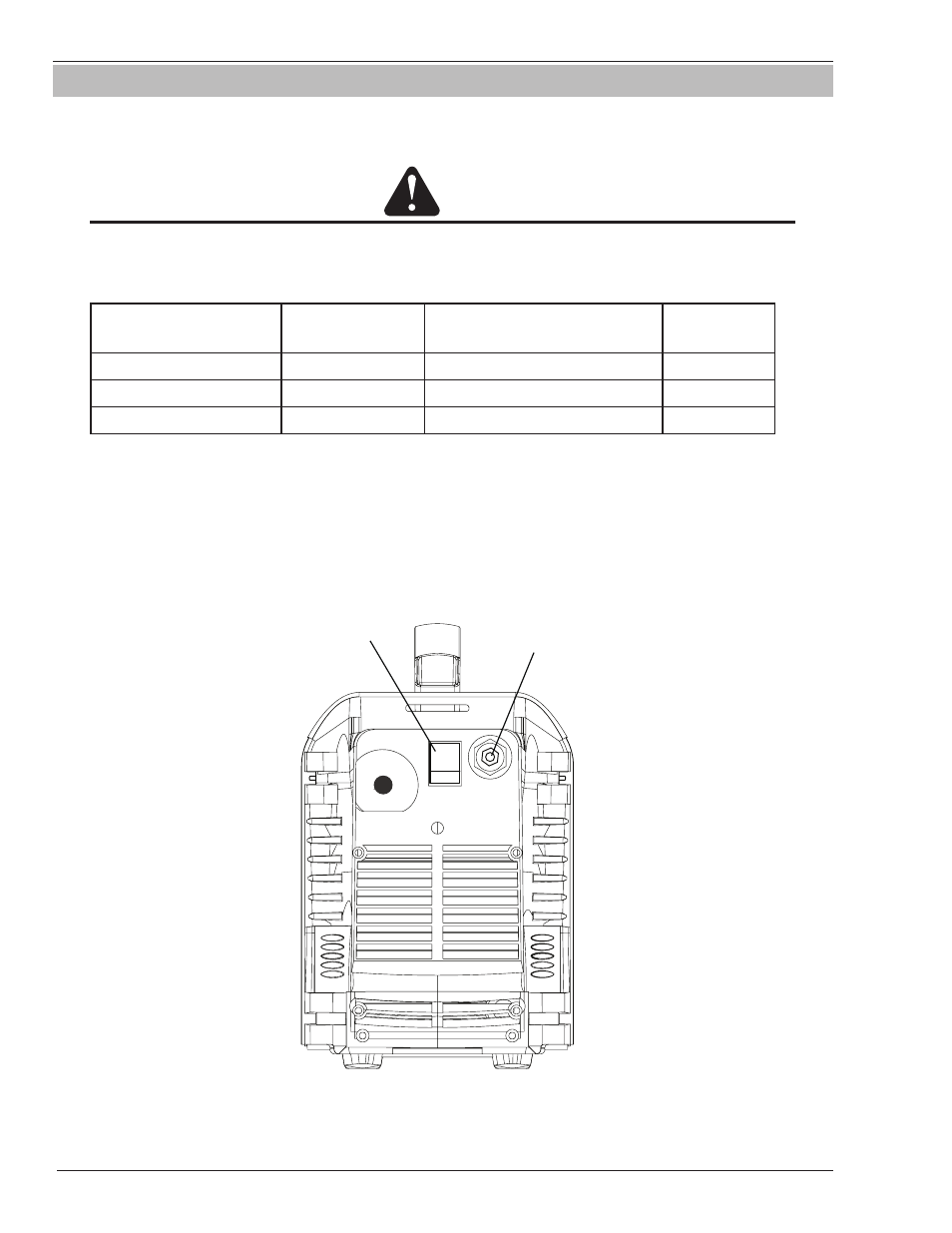

Art# A-09337
Air Inlet
On/Off
Switch
Figure 3-2 Gas Connection to Compressed Air input
