cutmaster 15mm
Manual 0-5178 4-5 OPERATION
NOTE
The tip should never come in contact with the
workpiece except during drag cutting opera-
tions.
B. Depending on the cutting operation, do one of
the following:
a). For drag cutting, place the tip on the plate
holding the torch at a angle to the plate so
that only one edge of the tip is in contact
with the plate. This prevents damage to the
tip during the piercing process.

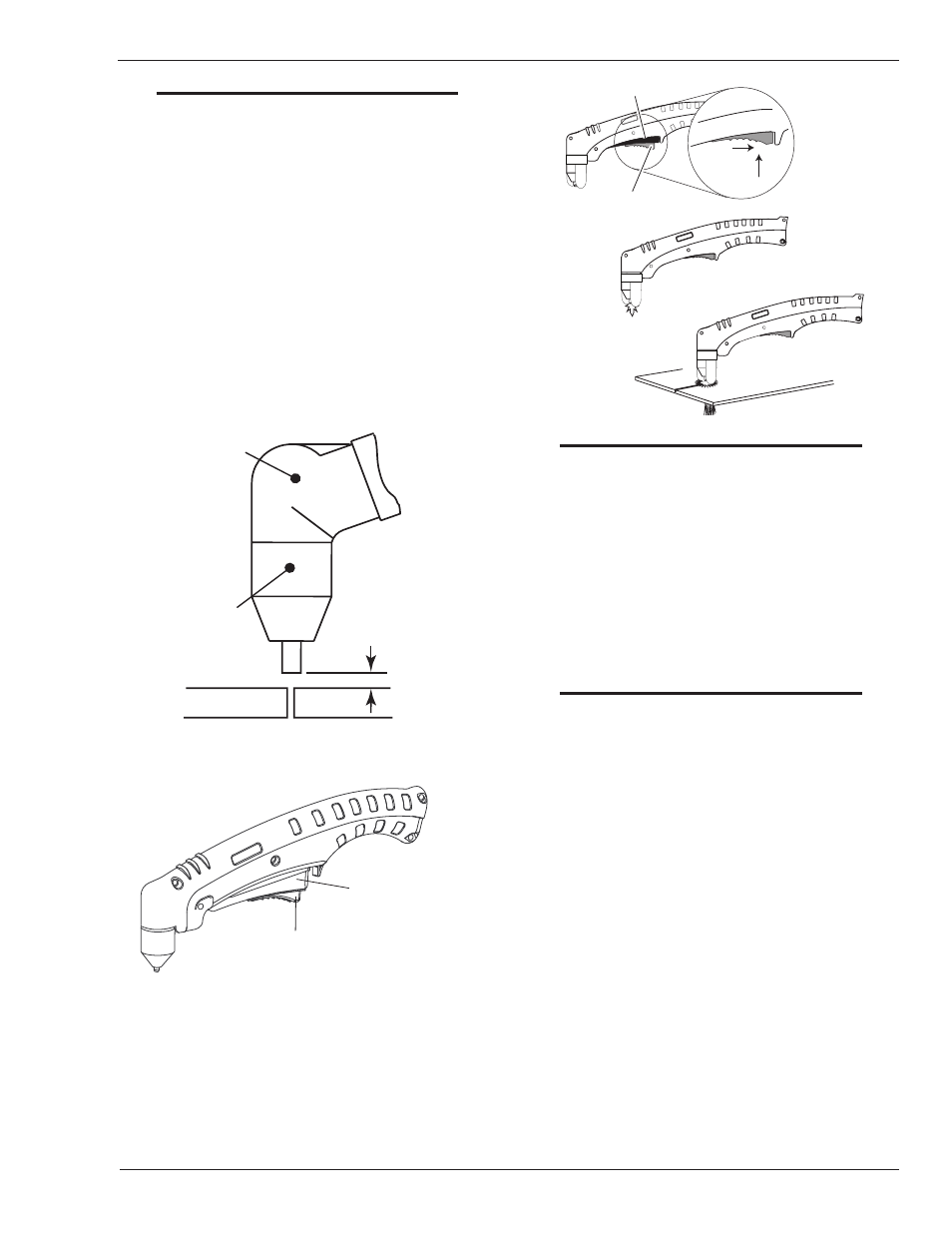

b). For standoff cutting, hold the torch tip
on the work piece, pull the trigger. After
the arc is initiated lift the tip to 1/8" - 3/8"
(3-4mm) off the work.
A-00024_AB
Shield Cup
Torch
Standoff Distance
1/8" - 3/8" (3 - 9mm)
Standoff Distance
Art # A-03962
Trigger
Trigger Release
3
4
Trigger
2
1
Trigger Release
Art # A-11504
NOTE
When the shield cup is properly installed, there
is a slight gap between the shield cup and the
torch handle. Gas vents through this gap as
part of normal operation. Do not attempt to
force the shield cup to close this gap. Forcing
the shield cup against the torch head or torch
handle can damage components.
• Drag Cutting With a Hand Torch
Drag cutting works best on metal 1/4"(6 mm) thick
or less.
NOTE
For best parts performance and life, always use
the correct parts for the type of operation.
A. Install the drag cutting tip and set the output
current.
B. The torch can be comfortably held in one hand
or steadied with two hands. Position the hand
to press the Trigger on the torch handle. With
the hand torch, the hand may be positioned
close to the torch head for maximum control
or near the back end for maximum heat protec-
tion. Choose the holding technique that feels
most comfortable and allows good control and
movement.
C. Keep the torch in contact with the workpiece
during the cutting cycle.
