PAGE 8 CHAMPION SL20 PUMP OPERATION / MAINTENANCE MANUAL

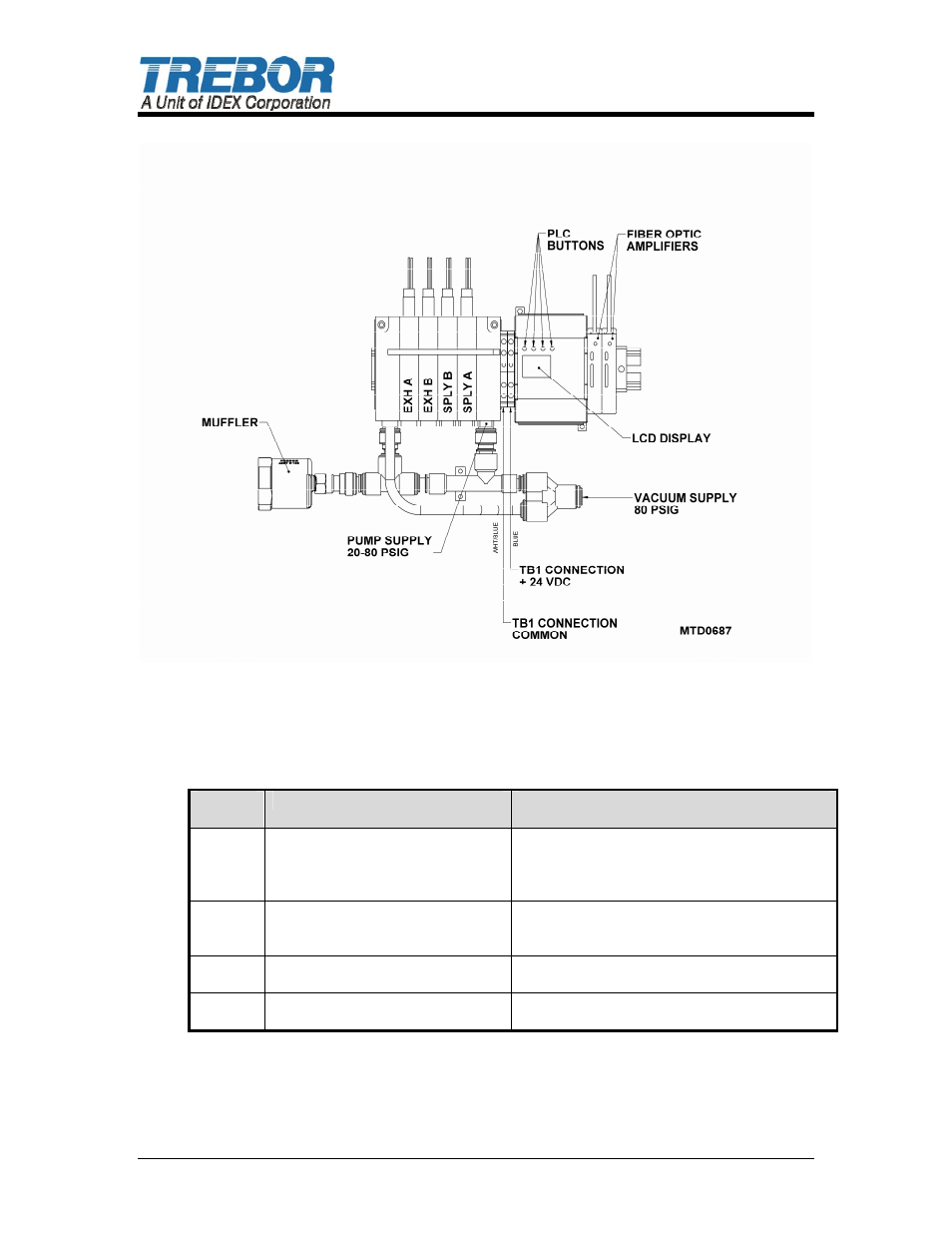

Figure 3-11
3.1 CONTROLLER OPERATION
The controller is operated using the display and buttons on the PLC. See Table
11 for a description of the PLC button functions.
Button Normal mode Numeric value change mode
(while digit is flashing)
3
Enables numeric value change
mode. (hold for ~3 sec)
Activates desired device change
(hold for ~3 sec) - Activates desired change when pressed
and held for >3 seconds.
- Cancels change when pressed and held
for < 3 seconds
V
Scroll backward through devices
to select the desired device - Decreases value of flashing digit.
-Toggles the “current device value” (“off” to
“on” or from “on” to “off.”)
U
Scroll forward through devices to
select the desired device Increases value of flashing digit
⇔ Selects a device type (left side of
display) “DM” “RLY” Allows selection of digit to be changed
Table 11: PLC Buttons
