CHAMPION SL20 PUMP OPERATION / MAINTENANCE MANUAL PAGE 13

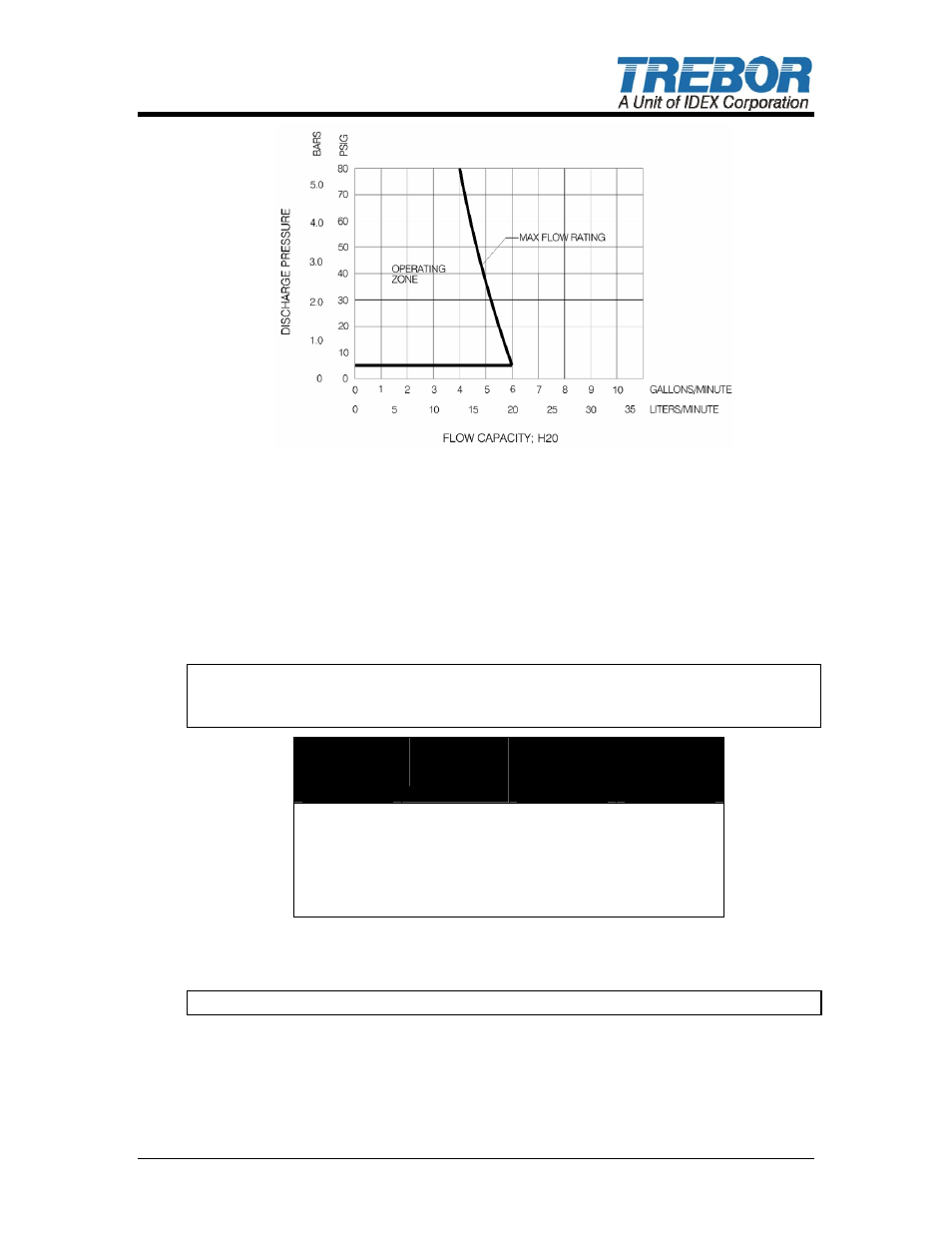

Figure 3-33: Pressure & Capacity Chart
The SL20 can be tuned to operate in virtually any area of the operating zone;
however, pulsation may become more pronounced in flow rates less than 1 GPM
(3.8 LPM) due to the very low stroke rate. Check set up instructions for optimal
tuning.
NOTE: Test information is based on specific conditions using DI water and
limited sampling. Use for general reference only.
3.3 PERFORMANCE CHARTS – BOOSTER PUMPING
Pumping capacity is a function of air supply pressure and volume, suction head,
suction line restrictions, discharge head, discharge line restriction, and fluid
specific gravity and viscosity.
Air Supply
Pressure
(PSIG)
Discharge
Fluid Pressure
(PSIG)
Discharge
Flow
Maximum
(GPM)*
Air
Consumption
@ 80 psig
(SCFM)
20 0 8.0 2.8
30 0 9.3 4.1
40 0 11.4 5.2
50 0 11.9 6.8
60 0 12.3 8.1
70 0 12.5 8.8
80 0 12.7 9.6
Table 44: Consumption / Efficiency
*@ 15-psi fluid inlet pressure.
NOTE: Specification to be used to size regulators and control valves.
