Display and DIP Switches

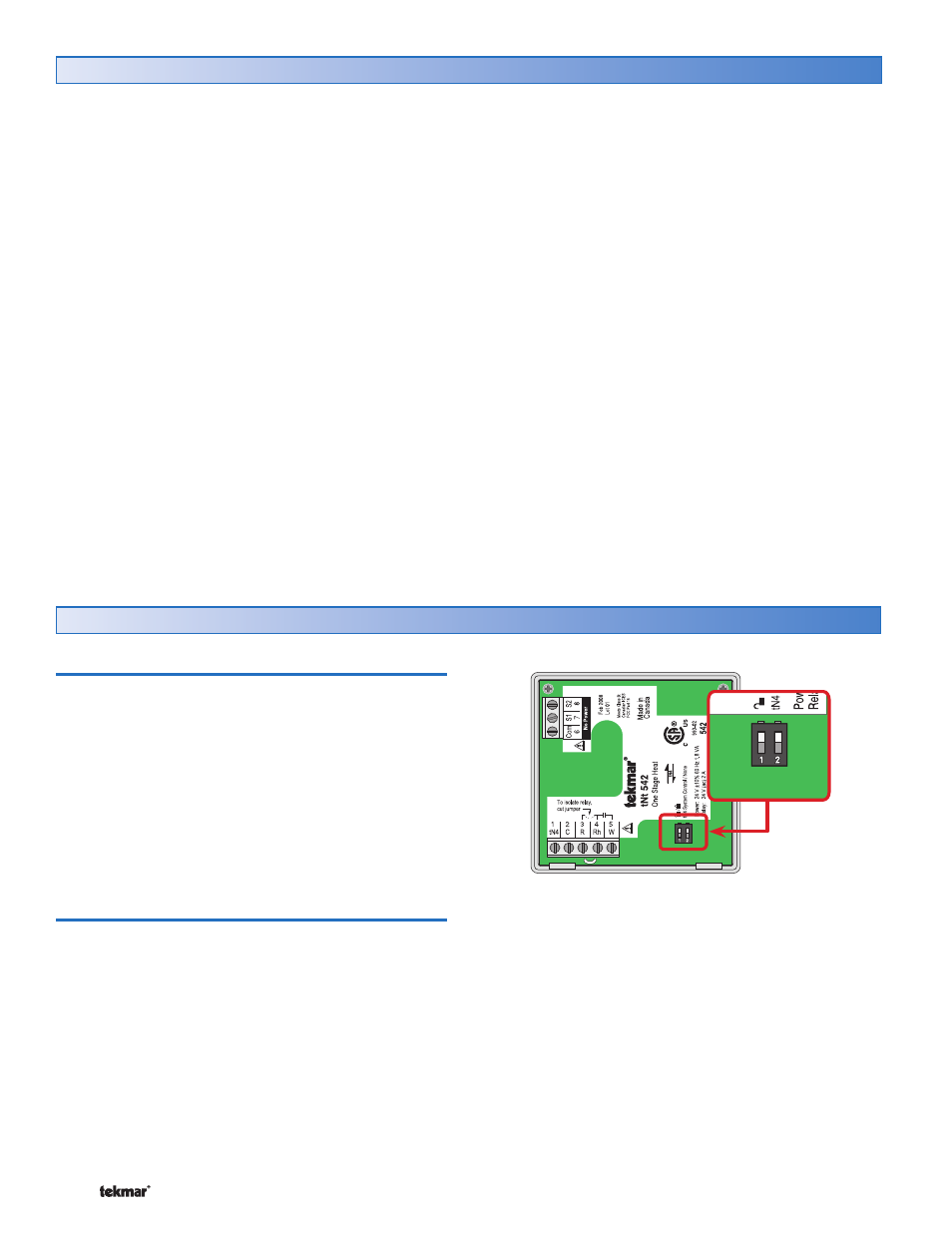

Dip Switches

tN4 System Control (DIP Switch #2)

A tN4 System Control is a control, not a thermostat, that
the 542 thermostat connects to through the tN4 bus. All
tN4 compatible Outdoor Reset Modules are tN4 System
Controls.

• If the thermostat is connected to a tN4 System Control,

set the tN4 System Control DIP switch to tN4 System
Control (down position).

• If the thermostat is not connected to a tN4 System

Control, set the tN4 System Control DIP switch to None
(up position).

Lock / Unlock (DIP Switch #1)

Use the Lock / Unlock DIP switch to lock or unlock the
Access Level of the 542.

• To unlock the Access Level, set the DIP switch to the

unlocked (down) position.

• To lock the Access Level, set the DIP switch to the locked

(up) position. Once locked, a padlock is displayed in the
lower right corner of the display and the Access Level
cannot be changed.

Note: The tN4 System Control’s Lock / Unlock DIP switch
overrides the Lock / Unlock DIP switch on the 542. Set
the tN4 System Control’s Lock / Unlock DIP switch to the
Unlock position before Access Levels can be changed on
the thermostat.
