tekmar 361 Mixing Control - Manual (Page 3)

Copyright © D 361 -
03/09
3 of 20

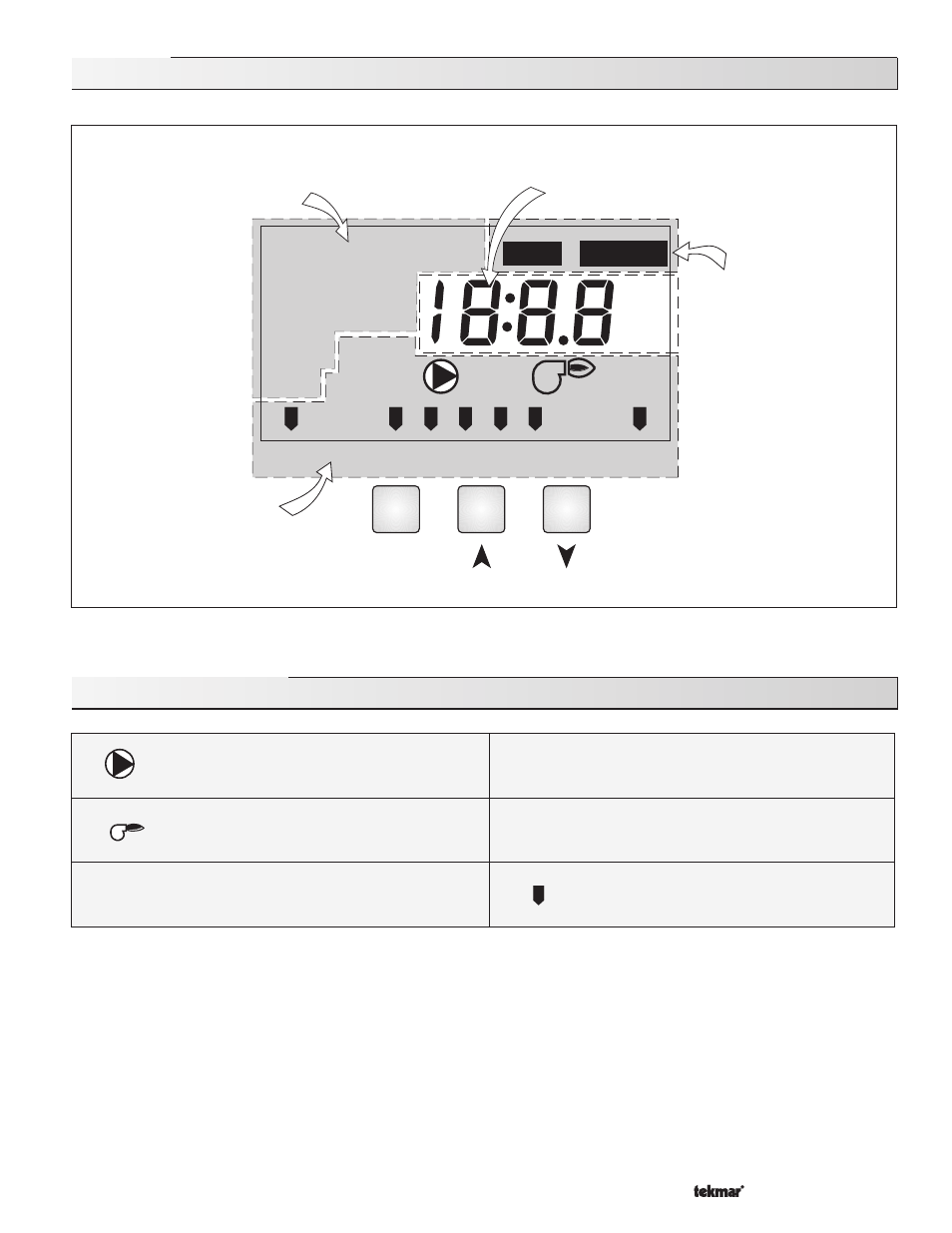

Display
Symbol Description
VIEW
TARGET
INDR
DSGN DIFF
BOIL
MIX
OUTDR
ROOM WWSD
ADJUST
°
F
°
C
MAX MIN
UNOCC
Terminal
Unit
30 10 70 50 Mixing
Demand
90
% Out
Item
Number Field
Displays the current value of
the selected item
{
Buttons
Selects Menus, Items and
adjusts settings
Menu Field
Displays the
current menu
Status Field
Displays the current
status of the control’s
inputs, outputs and
operation
Item Field
Displays an abbreviated
name of the selected item
Pump
Displays when the mixing system pump is in
operation.
Burner
Displays when the boiler relay is turned on. °F, °C
°F, °C
Displays the unit of measure that all of the
temperatures are to be displayed in the control.
OCC
Occupied Schedule
Displays when the control is in occupied (Day)
mode.
UNOCC
Unoccupied Schedule
Displays when the control is in unoccupied
(Night) mode.
Pointer
Displays the control operation as indicated by
the text.
