Step five — electrical connections to the control, Test the outputs, Powered input connections – tekmar 257 DHW Control User Manual

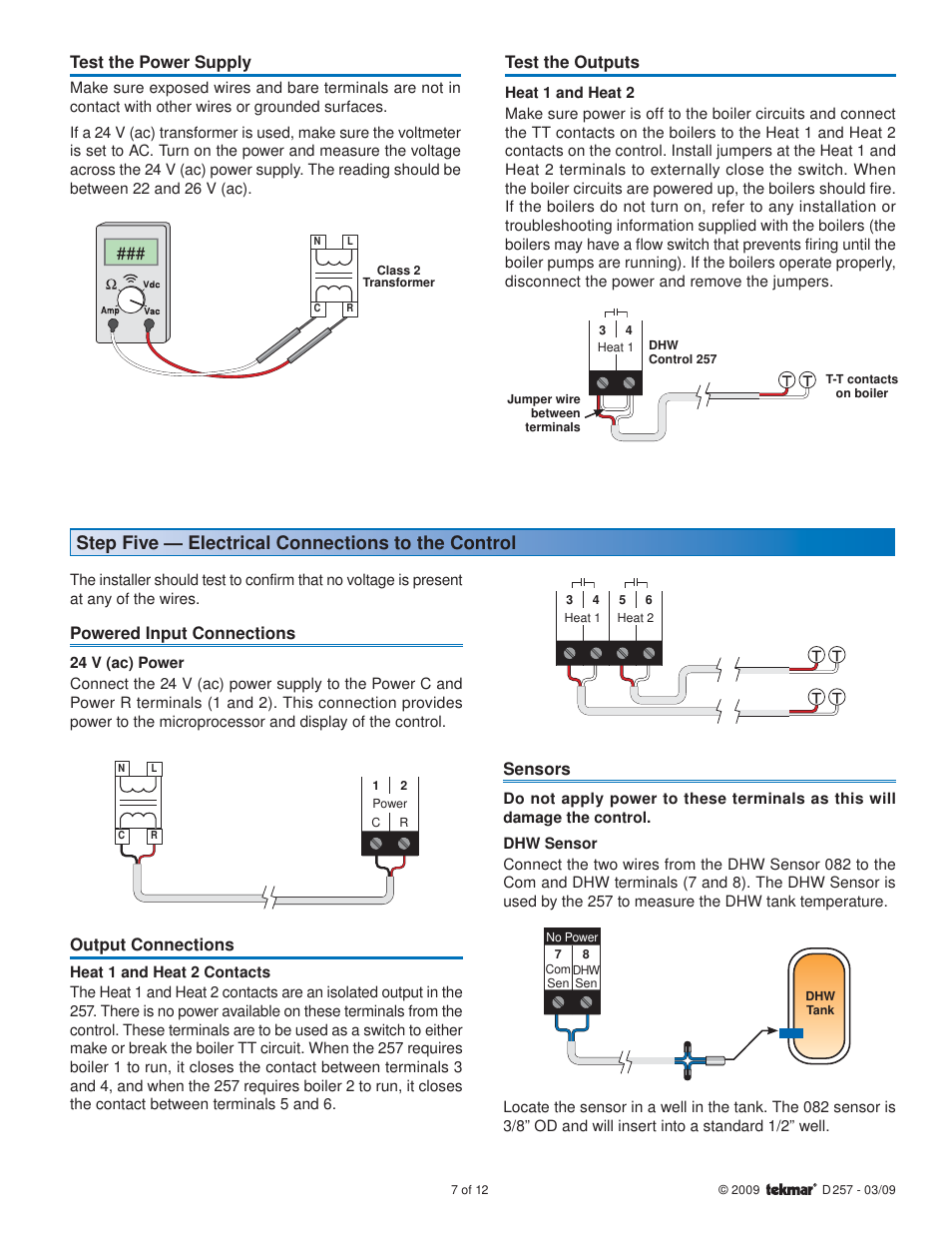

Page 7: Output connections, Sensors, Test the power supply
