Kessler MOTION CONTROL: Second Shooter - Manual (Page 5)

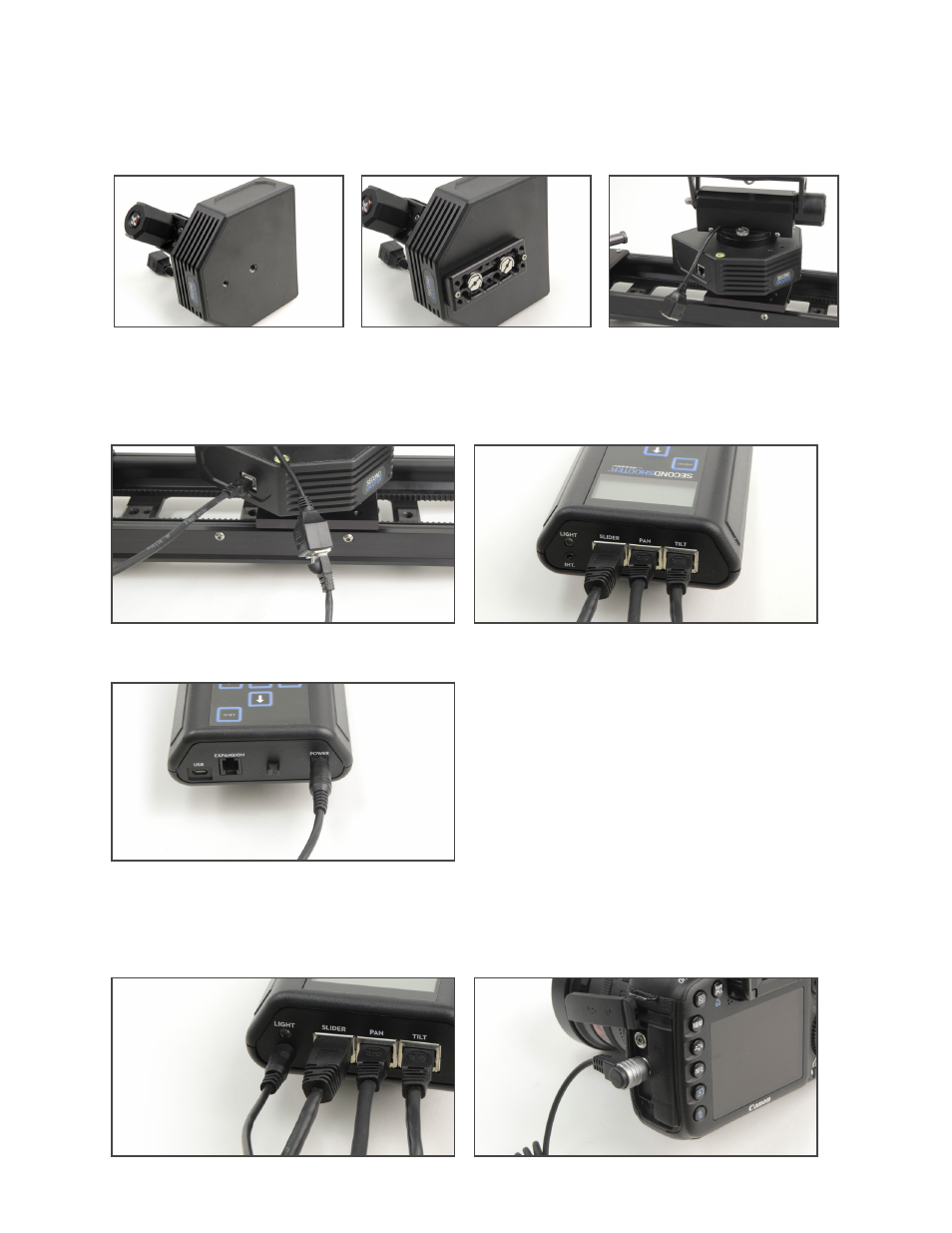

Pan & Tilt Axis
1. Mount your Pan & Tilt head utilizing the 3/8”-16 and ¼” – 20 holes on the underside of
the Head. (Recommended Mounting: Kessler Kwik Release + 3/8”-16 Kwik Short Plate)
2. Connect CAT5 cable from the side of the Pan base to the PAN port on the controller.
3. Connect CAT5 cable from the Tilt axis to the TILT port on the controller.
4. Plug in power supply.
Intervalometer Connect
1. For time lapse or stop motion, connect a Camera Control Cable to the INT. port on the
controller to the camera.
