Kessler MOTION CONTROL: Second Shooter - Manual (Page 2)

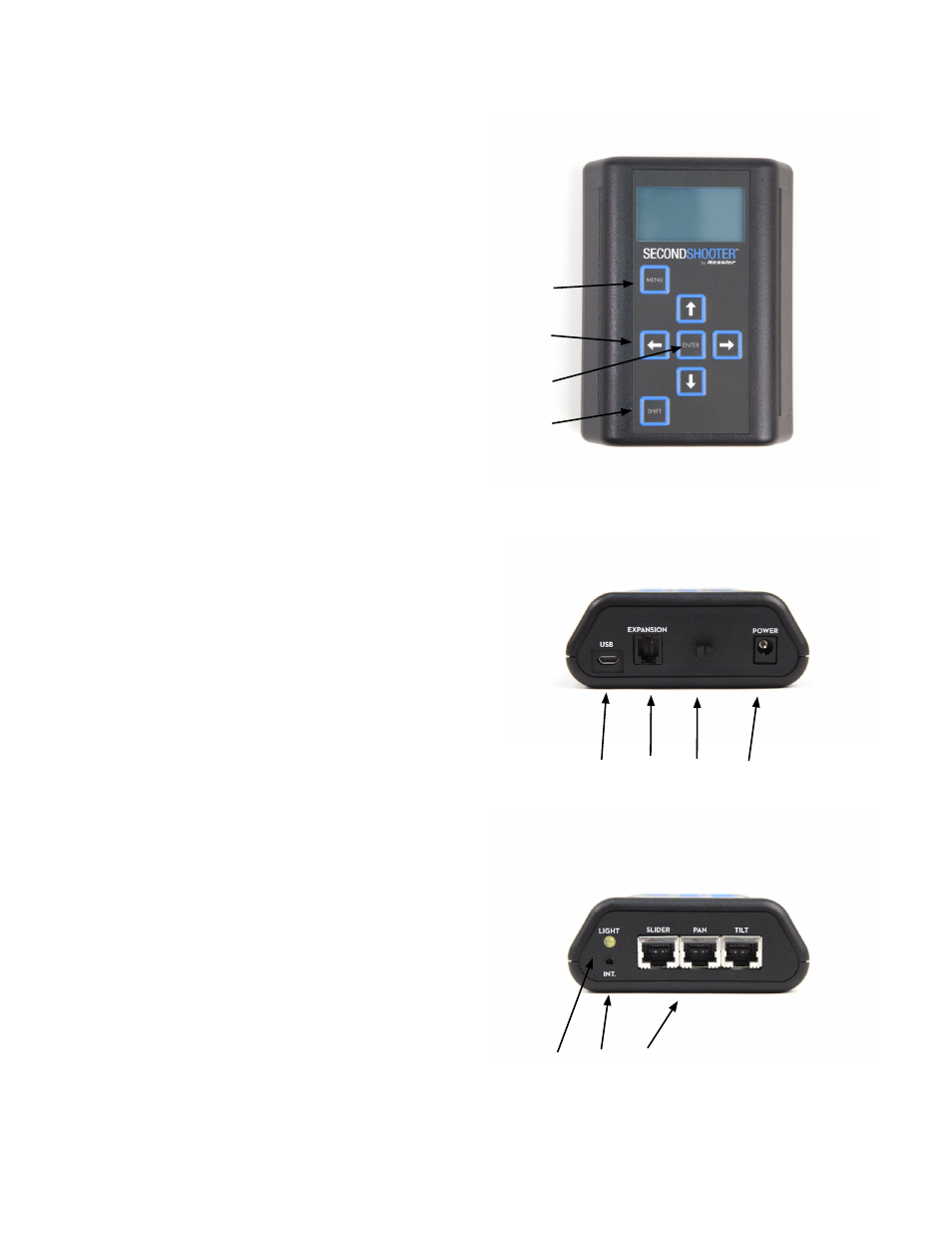

THE CONTROLLER
a) Menu Button
Navigate backwards to the previous menu
with this button.
b) Directional Arrows
The directional arrows can be used to navi-
gate through the menu and also control the
Left/Right movement of the Slider motor or
the Up/Down movement of the tilt axis. By
pressing the Shift Button + Left/Right arrow,
this will control the Pan Axis.
Press and hold (for 3 seconds) Left/Right or
Up/Down to swap move orientations.
c) Enter Button
Use this button to select options through the
menu.
d) Shift Button
This button in conjunction with other buttons
allows for secondary controls.
Shift + Left/Right arrow controls the Pan axis
Shift + Enter turns the LED Light on/off
Shift toggles backlight on/off during
time lapse move
e) USB Port
Connect the Controller to a computer via the
supplied USB cable to update firmware.
f) Expansion Port
Connect peripherals like joystick controllers,
jog wheels, etc. (for future release).
g) Wire Clip
Connect the power cord through this clip to
prevent unwanted disconnection.
h) Power Port
Connect the supplied AC wall power cord or
a 12V DC cable for battery power.
i) LED Light
Press Shift + Enter to turn off/on.
j) Intervalometer Port
Connect a camera via Camera Control Cable
to this port for intervalometer control.
k) Cat5 Ports (Slider, Pan, Tilt)
Connect each axis to corresponding port via
provided CAT5 cable.
a)
b)
c)
d)
e) f) g) h)
i) j) k)
2
