Kessler MOTION CONTROL: Second Shooter - Manual (Page 3)

GETTING STARTED: HARDWARE SET-UP

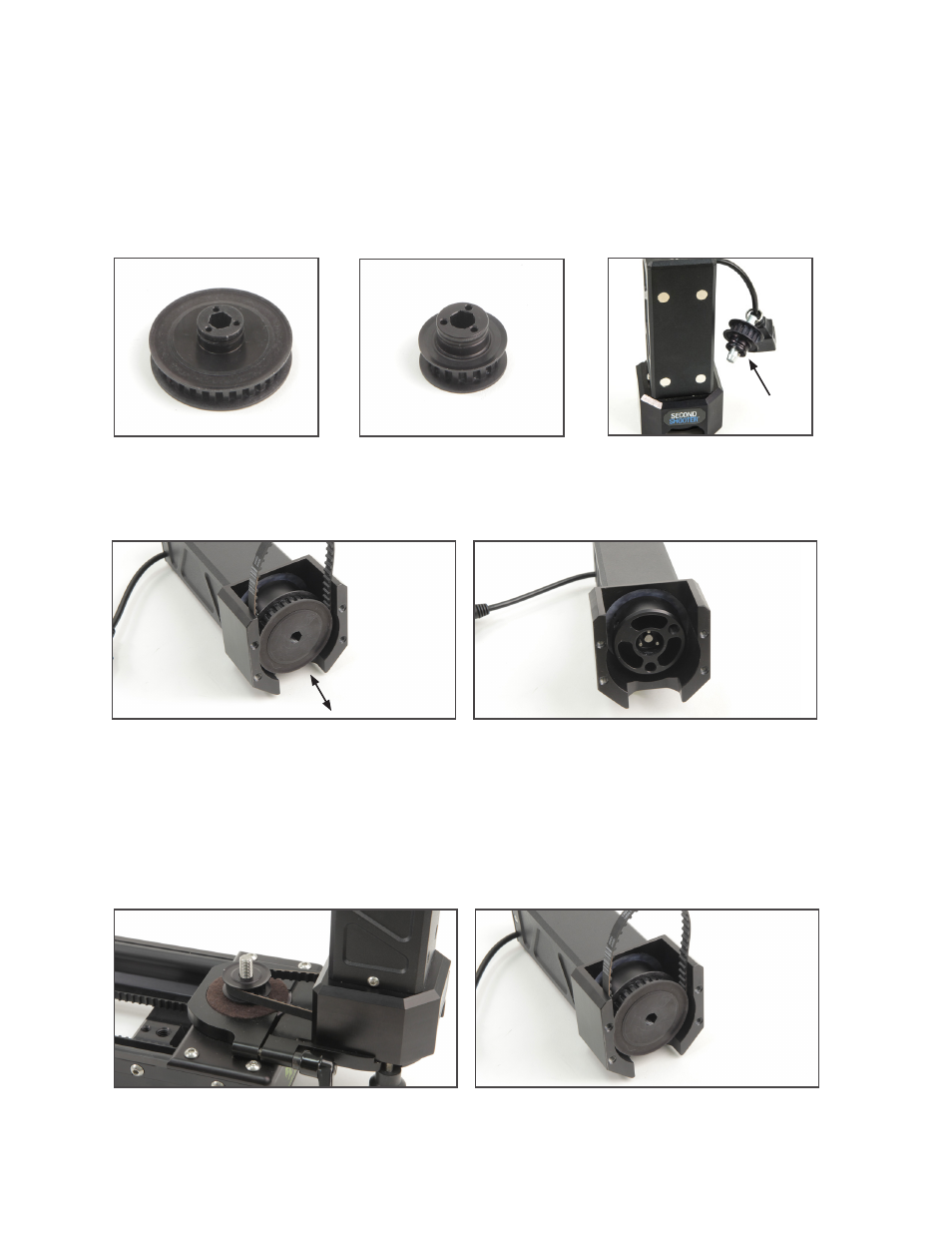

Slider Motor
1. Choose your desired motor speed by arranging the proper combination of motor
pulleys. The metal pin on the Slider motor is to be used for storing the extra pulley.
Small Pulley
2. To remove the pulley installed on the Slider motor, simply pull outward away from the
motor.
2. To install the pulley, simply push the pulley onto the motor shaft while aligning the
holes. Be sure to hold the belt in place while installing.
3. Choose between the following pulley combinations: Fast, Normal and Slow.
Fast (Low Torque)
*This combination is only compatible with CineSlider, Philip Bloom and Stealth sliders.
3
Pulley Storage Pin Large Pulley
