STEP 19

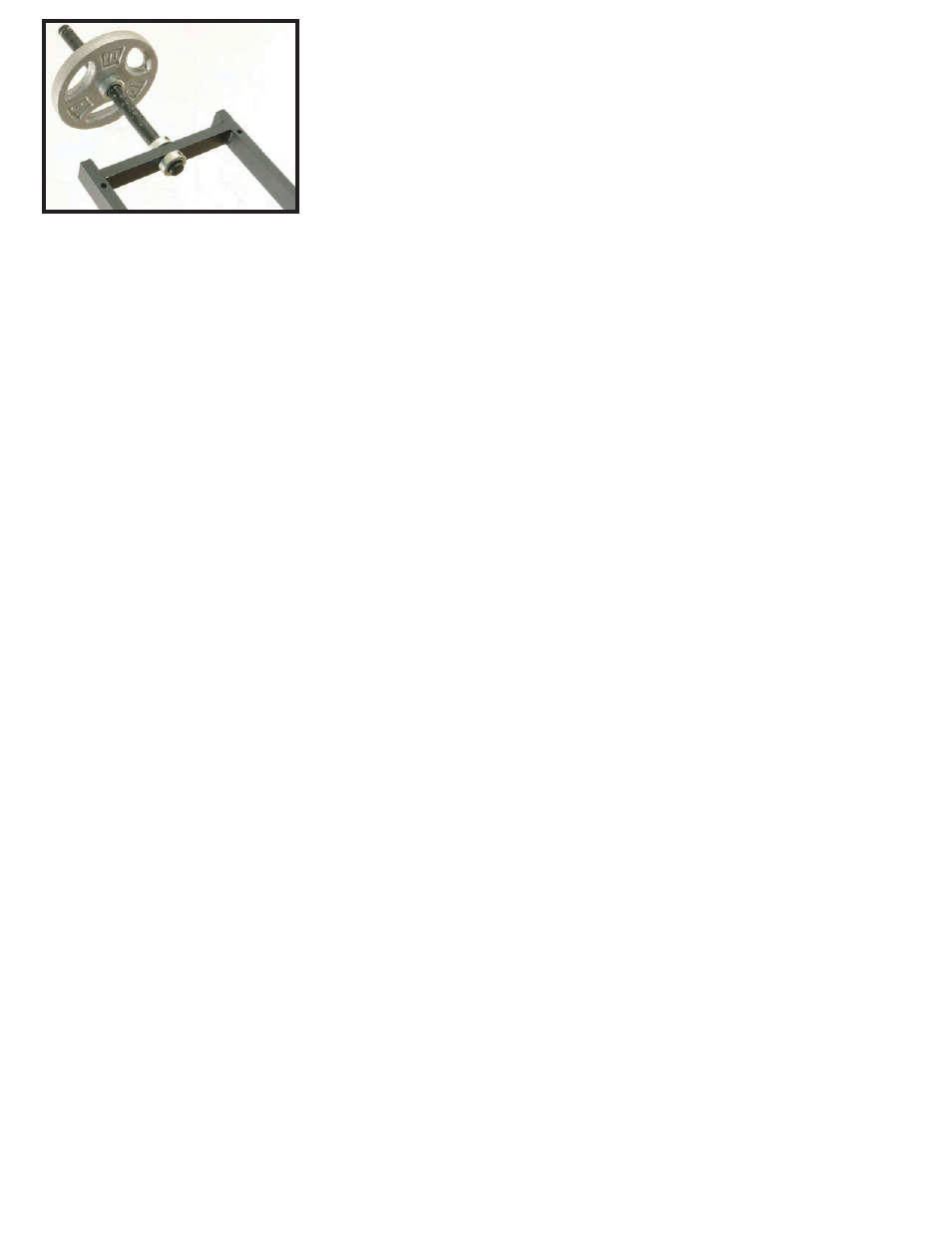

After the camera is securely mounted, begin adding your
counter balance weights (not included but can be pur-
chased at any sporting goods store – standard weights
with 1” hole). Weights should be applied so that they are
sandwiched by two of the collars anywhere on the weight
bar.
Page 6
NOTE
You will want to balance the crane PERFECTLY for best results. This can be achieved by
getting the amount of weight as close as possible and then changing the weights positions
on the weight bar. Balance may also be achieved by sliding the bar inside the frame and
positioning the weights there. NEVER exceed 45lbs on the weight bar on either side of
the crane's frame.
To use the crane in automatic mode, simply lock the tripod’s fluid head tilt at any angle. The
angle of the head will reflect the angle of the camera so if you lock the fluid head level, the
camera will remain level as you operate the crane.
To put the crane in manual mode simply leave the tilt lock on the fluid head loose. This will
allow you to tilt the head/camera independently from the travel of the boom.
If your camera weights more than 10lbs., it is advisable to put the camera basket in the
under slung configuration. This will allow easier manual operation of the tilt lever, as the
camera basket will not be so top heavy.
