Kenco Engineering KMD Transmitter - Manual (Page 3)

Mounting Instructions / Transmitter Dimensions
________________________________________________________________________________________________
The KMD Transmitter is mounted directly to the housing of the Magna-
Site. In a typical application, the magnetic flag assembly is attached to
the gauge housing chamber with hose clamps which have been welded to
the back of the flag assembly, typically 180° from the flanged or threaded
connections to the tank. Install the transmitter at least 90° to the right or
the left of the flag assembly (your choice) by placing the outer pipe of the
transmitter body adjacent to the gauge housing. Tighten the hose clamp of
the flag assembly around the outer pipe of the transmitter. Allow for the
inactive zone of 3 inches at the bottom of the transmitter by placing
transmitter bottom 3 inches below the zero setting. Your application will

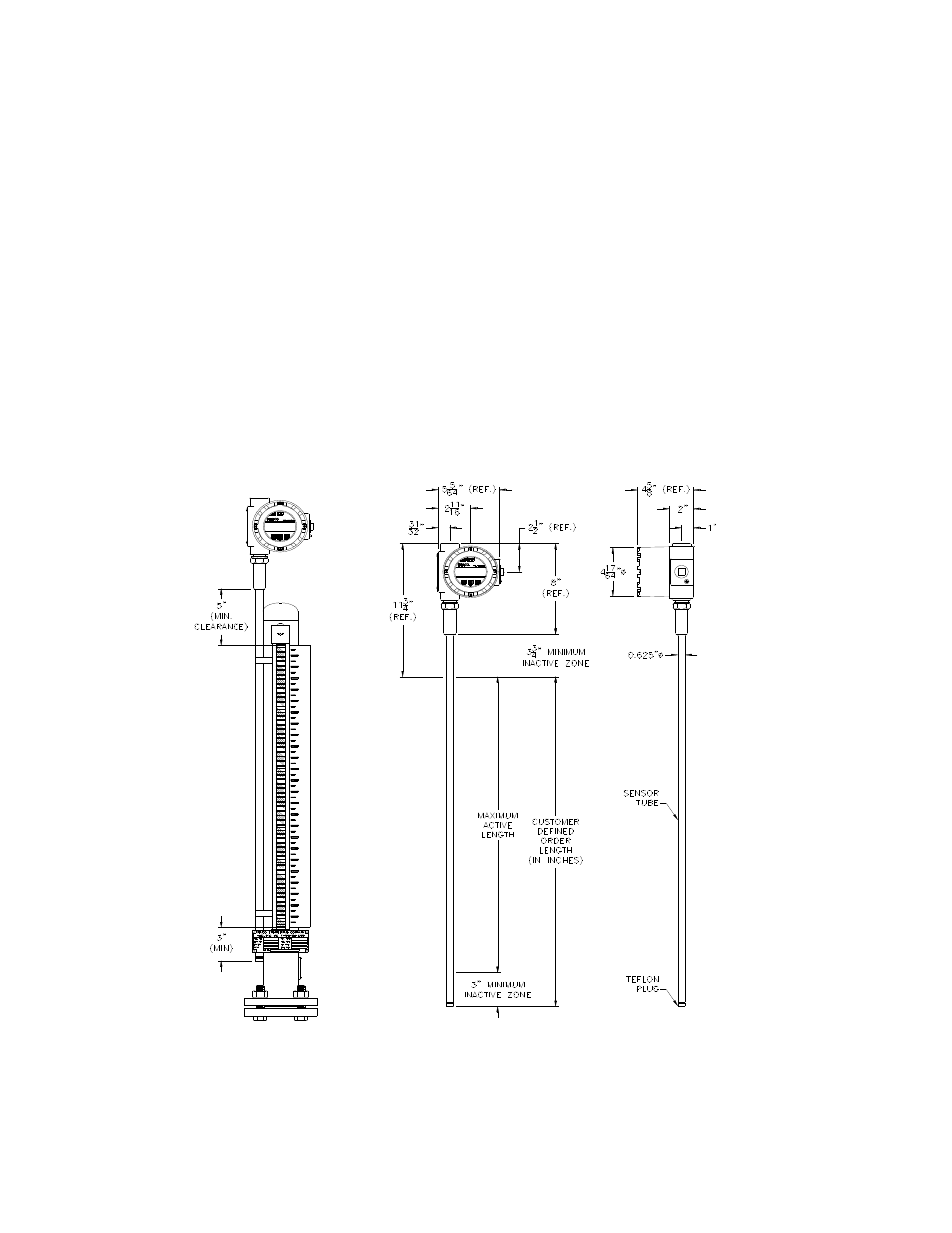

allow for 5 inches of clearance at the top of the outer pipe. See dimensional
information below.
Note: In a typical application, KENCO adds 2 inches to the order length so
that the customer has additional mounting flexibility. Units are factory
calibrated with the additional 2 inches at the top of the gauge, bringing the
total inactive zone at the top to 7”.
