Table of Contents

I.

Pre-Installation .......................................7

II. Knockdown Boiler Assembly ................9
III. Water Piping and Trim .........................12
IV. Venting .................................................18
V. Electrical and Sequence of Operation ..20

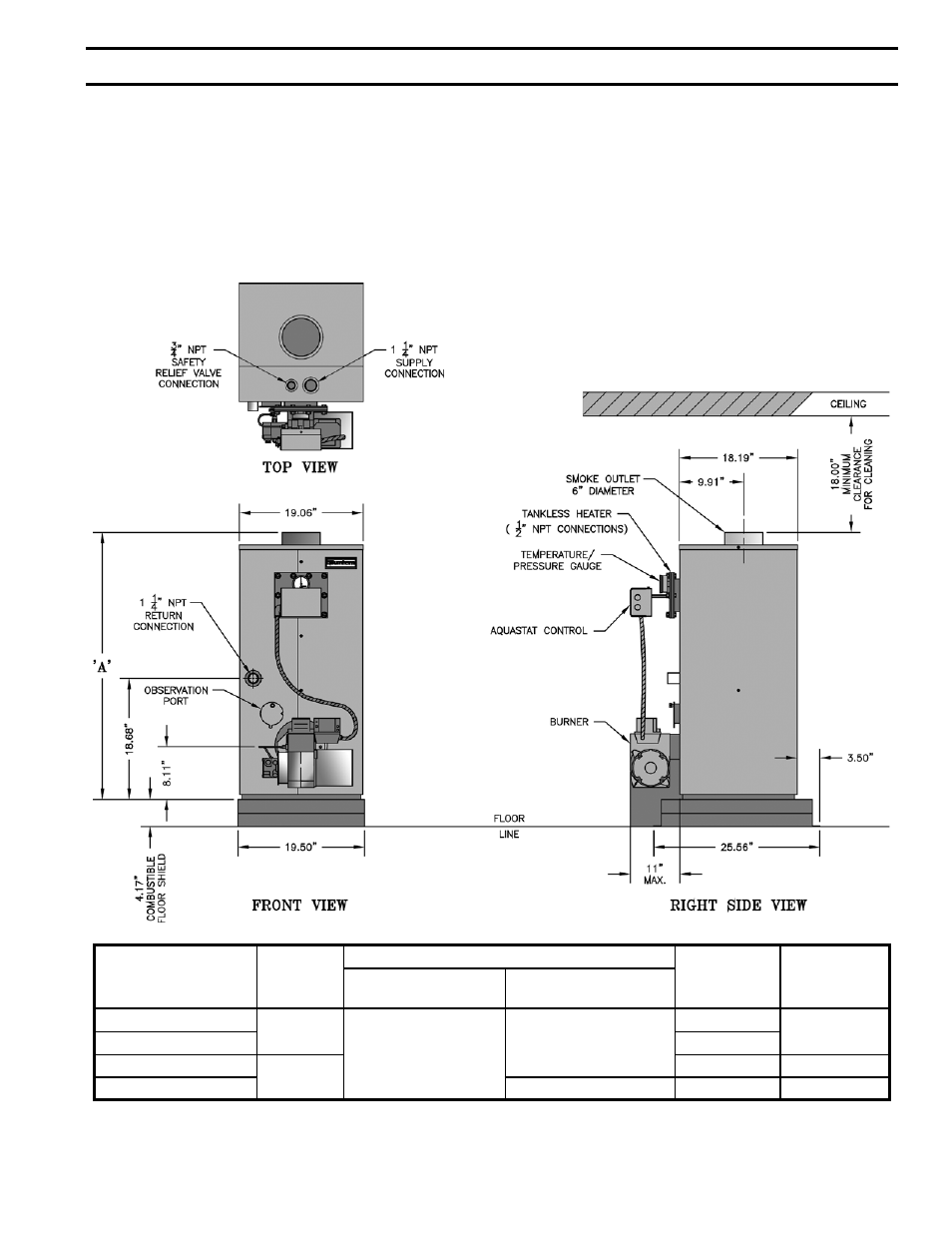

Figure 1: RSA Packaged Boiler (RSA85 / RSA135)

VI. Oil Piping .............................................28
VII. System Start-Up ...................................30
VIII. Service and Cleaning............................38
IX. Repair Parts ..........................................40
X. Appendix

Low Water Cut Off ...............................50

Boiler Model Number

Dim. ‘

A

Minimum Recommended Chimney Sizes

Water

Capacity

(gallons)

Approx.

Shipping

Weight (lb.)

In. x In. x Ft. (ht.)

In. (dia.) x Ft. (ht.)

RSA85

34¾

8 x 8 x 20

6 x 15

9.1

300

RSA110

8.5

RSA125

41¼

13.9

340

RSA135

7 x 15

13.0

355
