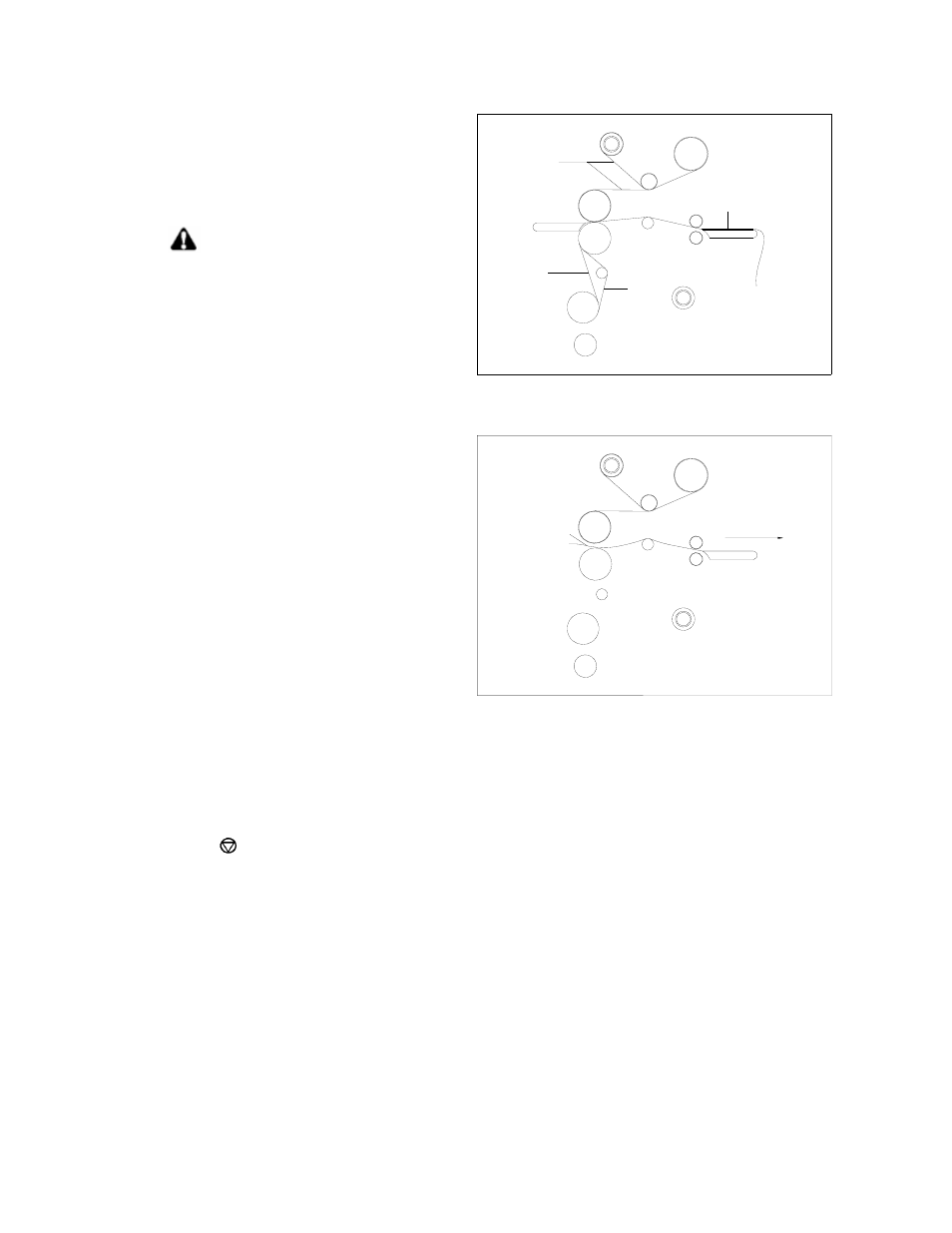

FIGURE 28

FIGURE 29

To unweb the laminator

Unweb the laminator if you are changing film
widths, cleaning the rollers or have finished using
the machine for the day.

CAUTION: Do not cut yourself

1. Using a slitter, cut (1) the output from the web

(Fig. 28).

2. Cut (2) remaining top film web between the

idler bar and heat roller. PSA film cut the
release liner too.

3. Cut (3) the film web between the lower film

supply and the idler bar (Fig. 28).

CAUTION: Be careful not to cut any of the
rollers!

4. Remove the feed table.

5. Gap the main rollers and pull rollers.

6. Carefully grab hold of the web (top and bottom

film), from the back operating position and pull
towards you (Fig. 29).

7. Do not allow the adhesive side of the film to

contact the heat or pull rollers.

Clearing a Film Jam (Wrap-up)

Film jams (wrap-ups) may occur if the film is loaded
backwards or if the area at which film exits the
equipment is blocked. The film, when jammed,
wraps around the heat rollers or pulls rollers during
webbing if webbing, if a Thread Card is not used.

To clear a jam:

1. Immediately stop the laminator by pressing

STOP ( ).

2. Set motor direction to rear.

3. Use the footswitch to reverse the web until the

wrap up is clear.

4. Raise the main roller and pull rollers.

5. Manually guide the web from the main rollers

and pull rollers.

6. Once the film jam has been cleared, lower the

main roller and pull rollers.

7. Refer to the section titled START

LAMINATING.
