FEATURES GUIDE (DETAILED DESCRIPTION)

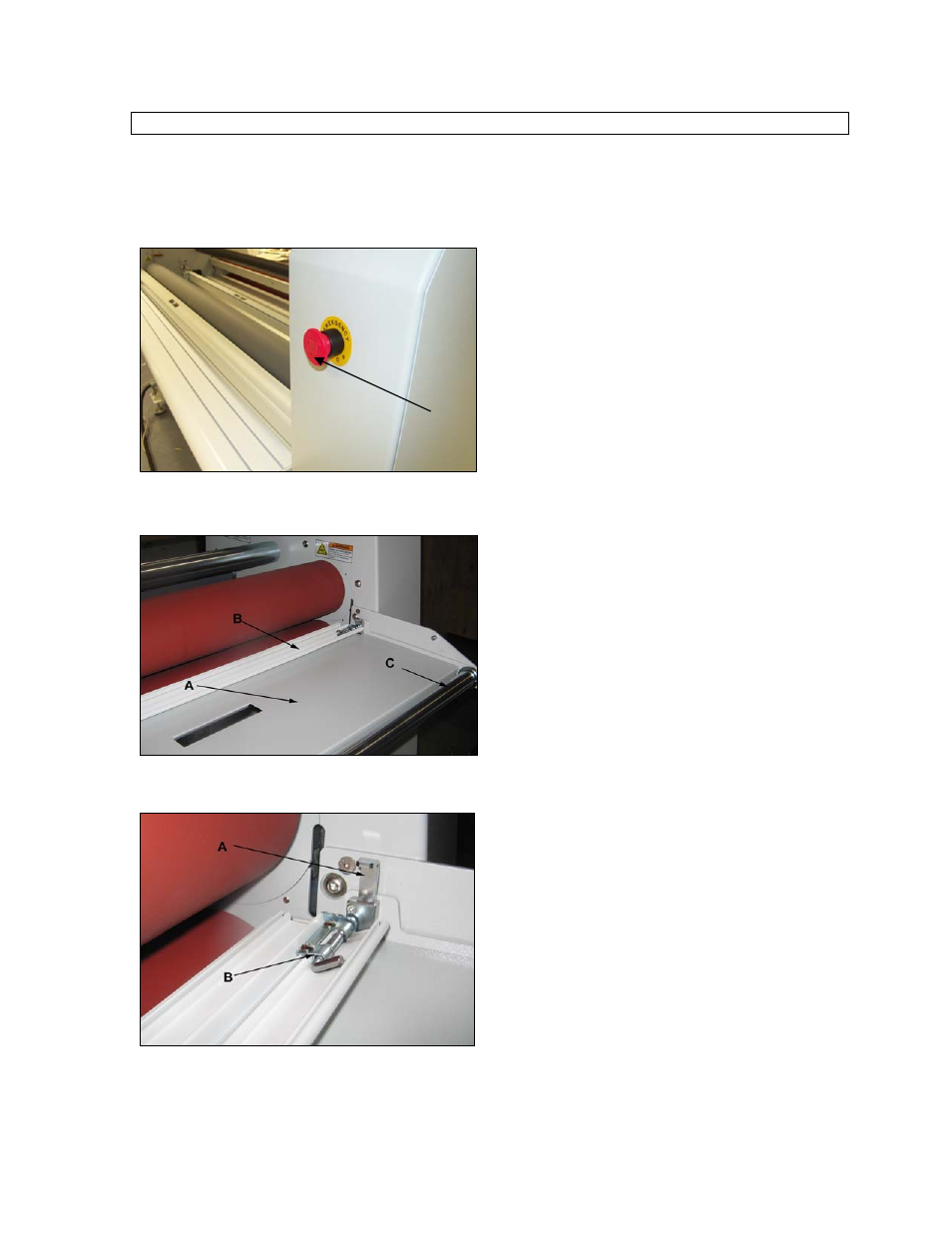

FIGURE 1

FIGURE 2

FIGURE 3

EMERGENCY STOP BUTTONS:
(Fig. 1– Item A)

Four Emergency Stops buttons are available
on the Laminator on the top four corners of
the Laminator.

To engage Emergency -stop button, press any
emergency -stop safety push button to stop
the roller movement

To disengage turn the push button clockwise
after the emergency condition has been
resolved

Front Media Table:
The Media Table (Fig.2A) is used to position
items for Lamination. There are two media
tables on the machine one on the front & one
on the rear of the Laminator. The Front
Media table incorporates an Idler on the
leading edge of the table.

Infeed Idler:
The Infeed Idler (Fig.2C) is used for roll to
roll applications during lamination.

Pressure Plate:
The Pressure Plate (Fig. 2B) helps to keep
images flat and assists when feeding images.

Safety Interlock Switch:
On both the Front Media & Rear Media
tables, the Safety Interlock Switch (Fig.3A)
will not allow the Laminator to operate at full
speed unless the tables are properly installed.

Pressure Plate Release Lever:

The Pressure Plate Release Lever (Fig.3B)
will allow the operator to remove the Pressure
plate by pulling the lever out, releasing the
locking pin, and remove the Pressure Plate.

Note:
The Laminator will operate only when the
Media Table and Media Table Latch are
Properly Installed
