GBC 2064WF-1

Operation Manual

THERMAL

LAMINATE

THERMAL

LAMINATE

THERMAL

LAMINATE

THERMAL

LAMINATE

THERMAL

LAMINATE

Webbing Thermal Film Using Threading Card

CAUTION: The laminator rollers will be hot and
can burn you. For pressure sensitive film (PSA),
refer to the section titled

WEBBING: USING FILM THREADING CARD
FOR PSA FILM.

1. Turn the Main Power ON /OFF to On.

2. Set top and bottom temperature with regards to the

film type used.

3. Ensure no brake tension is applied to the film shafts.

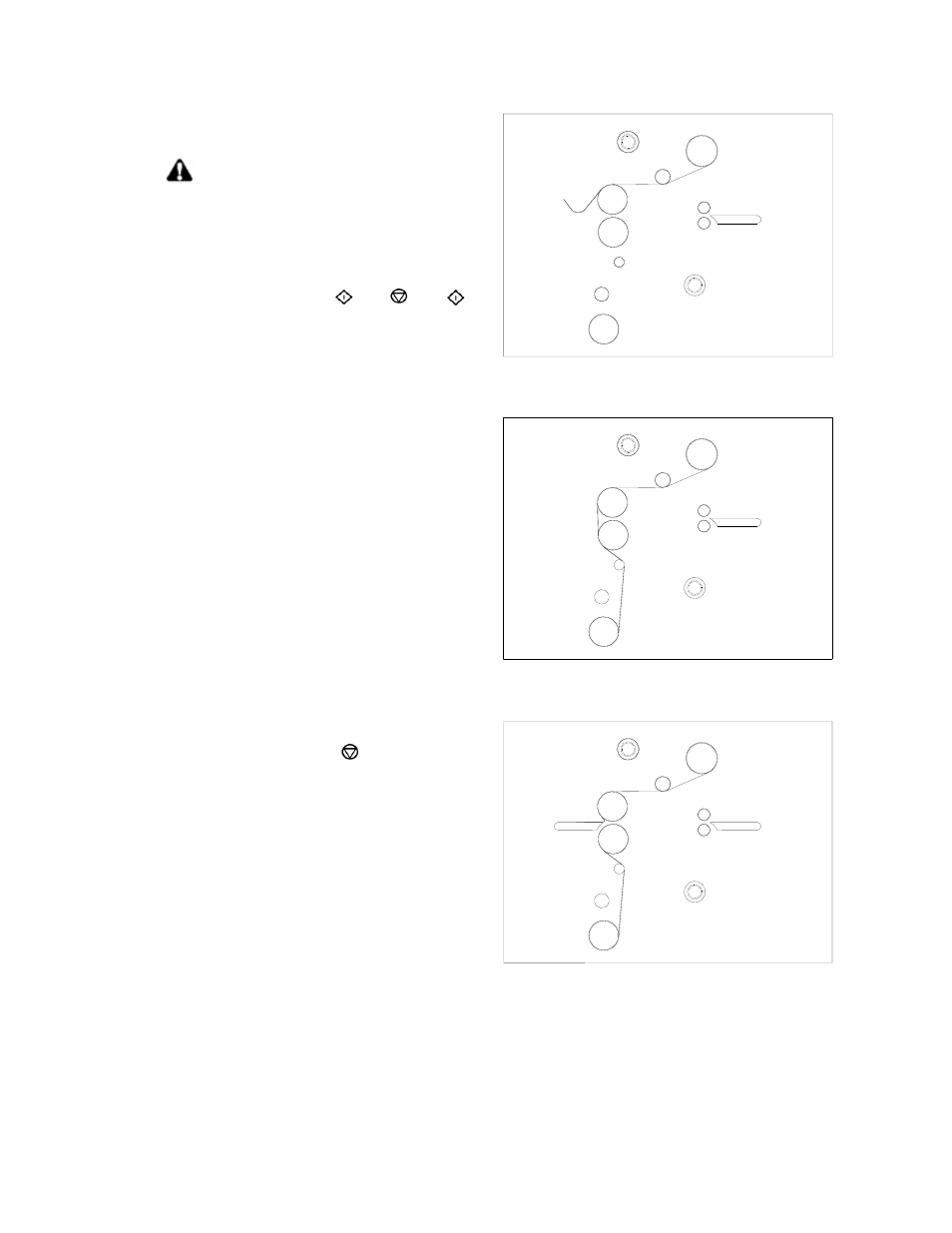

4. Pull the top roll film down under the upper idler bar

and allow to drape over the top heat roller (Fig. 19)

5. Pull the lower film behind the lower idler bar, Lower

the table Pull Film up towards the film draped over
the top heat roller and adhere the Lower Film to the
upper Film (Fig. 20).

6. Pivot the table back to its feeding position while

ensuring the threading card is on top of the feed table
(Fig. 21).

7. Use a threading card to push the two materials into

the heat roller nip.

8. Lower the main roller to initial contact with the

threading card.

9. Ensure forward is selected for Motor direction and

Press the Foot Switch

10. From the rear of the machine, guide the web over the

chill idler, if installed, and through the pull rollers.

11. Once the web has entered the pull roller nip, lower

the pull roller nip. Adjust unwind film tension; use as
little tension as possible to get smooth output.

12. Once the threading card has completely exited the

pull rollers, press the stop ( ) button.

13. Now refer to the section entitled START

LAMINATING.

FIGURE 19

FIGURE 20

FIGURE 21
