GBC 2064WF-1

Operation Manual

HEAT ROLLER

CHILLED ROLLER

Adhesive

Mount

Film

PSA

REWIND TUBE

Adhesive

Mount

Film

PSA

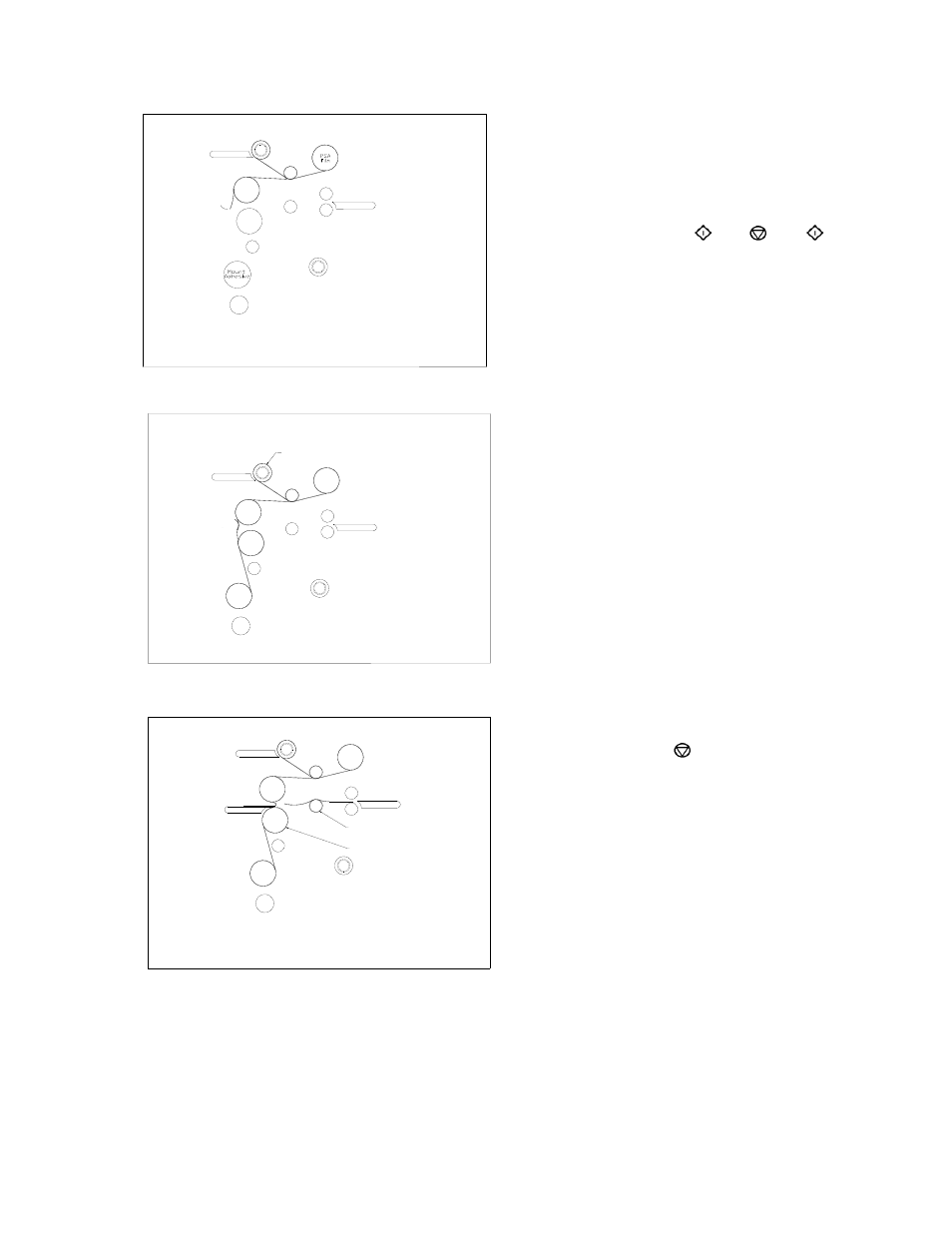

Webbing PSA Film/Mount Adhesive Using
Threading Card

The laminator should be cool to the touch before
Proceeding.

1. Turn the Power ON /OFF to On

2. Load the rolls of film as illustrated in (Fig. 22).

Ensure no brake tension is applied to the film
shafts.

3. Pull the top roll of film down under the idler bar

and up to the upper front rewind tube.

4. Place one piece of masking tape in the center of

the film and secure to the rewind tube.

5. Make two full wraps around the rewind tube,

and then score the laminate without cutting the
release liner. Pull the laminate down allowing it
to drape over the upper roller (Fig. 22).

6. Pull the mount adhesive up towards the film

draped over the upper heat roller (Fig. 23).

7. Stick the mount adhesive to the exposed

adhesive of the upper role.

8. Insert the table back to its feeding position

while ensuring the threading card is on top of
the feed table (Fig. 24).

9. Use a threading card to push the two materials

through the heat roller nip

10. Lower the main heated roller to bring the main

roller into initial contact with the threading card.
Ensure front is selected and press the foot
switch.

11. From the rear of the machine, guide the web

over the chill idler, if installed, and through the
pull rollers. Once the web has entered the pull
roller nip, close the pull roller nip –

12. Press the stop ( ) button when the threading

card has completely exited the pull rollers and
adjusts the film web tension using as little
tension as possible.

13. Now refer to the section titled START

LAMINATING.

FIGURE 22

FIGURE 23

FIGURE 24
