E-flite 3-Cell LiPo Balancing Charger, 0.8A User Manual
Page 5
11
Once.you.have.connected.the.charger.to.a.power.source.(Use.care.to.ensure.proper.polarity.when..
connecting.the.charger.to.the.power.source),.its.red.LED.will.flash.to.indicate.the.charger.has.power.and..

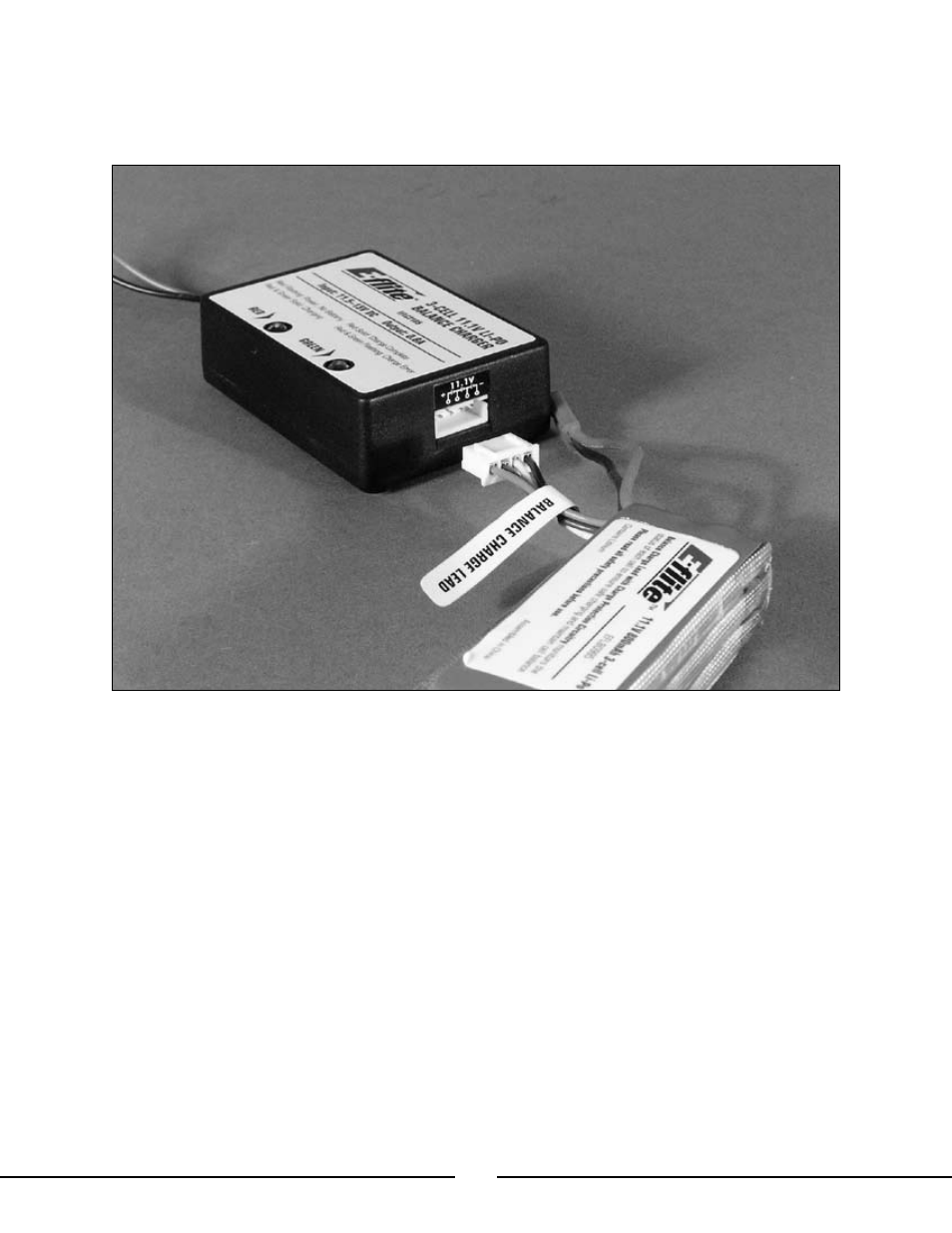

is.ready.to.begin.charging ..Connect.the.Li-Po.battery.pack.to.the.charger.using.the.specially.marked.Balance.
Charge.Lead ..The.connector.is.keyed.to.prevent.reverse.polarity.connection .
When.the.battery.is.properly.connected.and.charging.normally,.the.red.and.green.LED.indicators.will.glow.solid ..
Once.the.battery.has.been.fully.charged,.the.green.LED.will.go.out,.leaving.just.the.red.LED.glowing.solid ..The.
battery.can.now.be.removed.from.the.charger.and.installed.on.the.Blade™.CP.Pro.for.flight .
