2- to 3-Cell Li-Po Regulator

Instruction Manual | Bedienungsanleitung | Manuel d’utilisation | Manuale di Istruzioni

(EFLA120)

EN

IT

FR

DE

HINWEIS

Alle Anweisungen, Garantien und anderen

zugehörigen Dokumente können im eigenen

Ermessen von Horizon Hobby, Inc. jederzeit

geändert werden. Die aktuelle Produktliteratur

finden Sie auf horizonhobby.com unter der

Registerkarte „Support“ für das betreffende

Produkt.

Spezielle Bedeutungen

Die folgenden Begriffe werden in der

gesamten Produktliteratur verwendet, um auf

unterschiedlich hohe Gefahrenrisiken beim

Betrieb dieses Produkts hinzuweisen:
HINWEIS: Wenn diese Verfahren nicht korrekt

befolgt werden, können sich möglicherweise

Sachschäden UND geringe oder keine Gefahr

von Verletzungen ergeben.
ACHTUNG: Wenn diese Verfahren nicht

korrekt befolgt werden, ergeben sich

wahrscheinlich Sachschäden UND die Gefahr

von schweren Verletzungen.
WARNUNG: Wenn diese Verfahren

nicht korrekt befolgt werden, ergeben

sich wahrscheinlich Sachschäden,

Kollateralschäden und schwere Verletzungen

ODER mit hoher Wahrscheinlichkeit

oberflächliche Verletzungen.

WARNUNG: Lesen Sie die GESAMTE Bedi-

enungsanleitung, um sich vor dem Betrieb

mit den Produktfunktionen vertraut zu ma-

chen. Wird das Produkt nicht korrekt be-

trieben, kann dies zu Schäden am Produkt

oder persönlichem Eigentum führen oder

schwere Verletzungen verursachen.

Dies ist ein hochentwickeltes Hobby-Produkt. Es

muss mit Vorsicht und gesundem Menschen-

verstand betrieben werden und benötigt gewisse

mechanische Grundfähigkeiten. Wird dieses

Produkt nicht auf eine sichere und verantwortungs-

volle Weise betrieben, kann dies zu Verletzungen

oder Schäden am Produkt oder anderen Sachw-

erten führen. Dieses Produkt eignet sich nicht für

die Verwendung durch Kinder ohne direkte Über-

wachung eines Erwachsenen. Versuchen Sie nicht

ohne Genehmigung durch Horizon Hobby, Inc., das

Produkt zu zerlegen, es mit inkompatiblen Kom-

ponenten zu verwenden oder auf jegliche Weise

zu erweitern. Diese Bedienungsanleitung enthält

Anweisungen für Sicherheit, Betrieb und Wartung.

Es ist unbedingt notwendig, vor Zusammenbau,

Einrichtung oder Verwendung alle Anweisungen

und Warnhinweise im Handbuch zu lesen und zu

befolgen, damit es bestimmungsgemäß betrieben

werden kann und Schäden oder schwere Verlet-

zungen vermieden werden.

Nicht geeignet für Kinder unter 14 Jahren.
Dies ist kein Spielzeug.

REMARQUE

La totalité des instructions, garanties et autres

documents est sujette à modification à la

seule discrétion d’Horizon Hobby, Inc. Pour

obtenir la documentation à jour, rendez-vous

sur le site horizonhobby.com et cliquez sur

l’onglet de support de ce produit.

Signification de certains termes spécifiques

Les termes suivants sont utilisés dans

l’ensemble du manuel pour indiquer différents

niveaux de danger lors de l’utilisation de ce

produit:
REMARQUE: Procédures qui, si elles ne sont

pas suivies correctement, peuvent entraîner

des dégâts matériels ET éventuellement un

faible risque de blessures.
ATTENTION: Procédures qui, si elles ne sont

pas suivies correctement, peuvent entraîner

des dégâts matériels ET des blessures graves.
AVERTISSEMENT: Procédures qui, si

elles ne sont pas suivies correctement,

peuvent entraîner des dégâts matériels et

des blessures graves OU engendrer une

probabilité élevée de blessure superficielle.

AVERTISSEMENT: Lisez la TOTALITÉ du

manuel d’utilisation afin de vous familiar-

iser avec les caractéristiques du produit

avant de le faire fonctionner. Une

utilisation incorrecte du produit peut

entraîner sa détérioration, ainsi que des

risques de dégâts matériels, voire de

blessures graves.

Ceci est un produit de loisirs sophistiqué. Il doit

être manipulé avec prudence et bon sens et

requiert des aptitudes de base en mécanique.

Toute utilisation irresponsable de ce produit

ne respectant pas les principes de sécurité

peut provoquer des blessures, entraîner des

dégâts matériels et endommager le produit. Ce

produit n’est pas destiné à être utilisé par des

enfants sans la surveillance directe d’un adulte.

N’essayez pas de démonter le produit, de

l’utiliser avec des composants incompatibles ou

d’en améliorer les performances sans l’accord

d’Horizon Hobby, Inc. Ce manuel comporte

des instructions relatives à la sécurité, au

fonctionnement et à l’entretien. Il est capital de

lire et de respecter la totalité des instructions et

avertissements du manuel avant l’assemblage,

le réglage et l’utilisation, ceci afin de manipuler

correctement l’appareil et d’éviter tout dégât

matériel ou toute blessure grave.

14 ans et plus. Ceci n’est pas un jouet.

AVVISO

Tutte le istruzioni, le garanzie e gli altri

documenti pertinenti sono soggetti a

cambiamenti a totale discrezione di Horizon

Hobby, Inc. Per una documentazione

aggiornata sul prodotto, visitare il sito

horizonhobby.com e fare clic sulla sezione

Support del prodotto.

Terminologia

Nella documentazione relativa al prodotto

vengono utilizzati i seguenti termini per

indicare i vari livelli di pericolo potenziale

durante l’uso del prodotto:
AVVISO: indica procedure che, se non

debitamente seguite, possono determinare il

rischio di danni alle cose E il rischio minimo o

nullo di lesioni alle persone.
ATTENZIONE: indica procedure che, se non

debitamente seguite, determinano il rischio di

danni alle cose E di gravi lesioni alle persone.
AVVERTENZA: indica procedure che, se non

debitamente seguite, determinano il rischio di

danni alle cose, danni collaterali e gravi lesioni

alle persone O il rischio elevato di lesioni

superficiali alle persone.

AVVERTENZA: leggere TUTTO il

manuale di istruzioni e familiarizzare

con le caratteristiche del prodotto prima

di farlo funzionare. Un uso improprio del

prodotto può causare danni al prodotto

stesso e alle altre cose e gravi lesioni

alle persone.

Questo un prodotto sofisticato per appas-

sionati. Deve essere azionato in maniera

attenta e responsabile e richiede alcune

conoscenze basilari di meccanica. L’uso

improprio o irresponsabile di questo prodotto

può causare lesioni alle persone e danni

al prodotto stesso o alle altre cose. Questo

prodotto non deve essere utilizzato dai bambini

senza la diretta supervisione di un adulto. Non

tentare di smontare, utilizzare componenti

incompatibili o modificare il prodotto in nessun

caso senza previa approvazione di Horizon

Hobby, Inc. Questo manuale contiene le istruzi-

oni per la sicurezza, l’uso e la manutenzione

del prodotto. È fondamentale leggere e seguire

tutte le istruzioni e le avvertenze del manuale

prima di montare, impostare o utilizzare il

prodotto, al fine di utilizzarlo correttamente e

di evitare di causare danni alle cose o gravi

lesioni alle persone.

Almeno 14 anni. Non è un giocattolo.

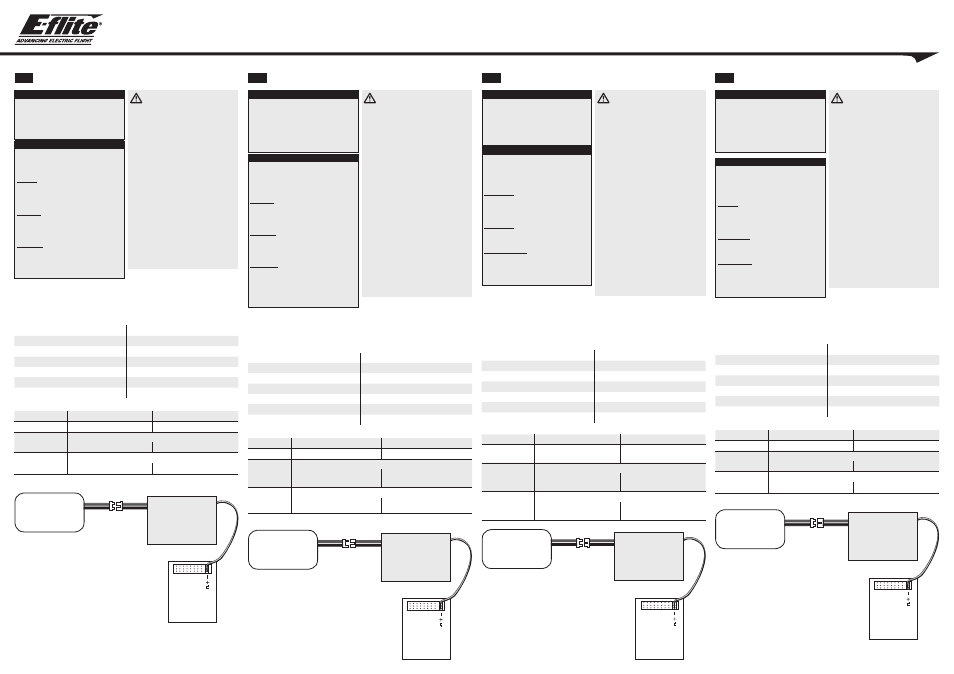

RECEIVER

EmpfängER

RéCEptEuR

RICEVEntE

REguLAtOR

REgLER

RéguLAtEuR

REgOLAtORE

EC2

COnnECtOR

EC2 AnsChLuß

pRIsE EC2

COnnEttORE EC2

BAttERY

AKKu

BAttERIE

BAttERIA

The E-flite

®

2- to 3-cell Li-Po regulator is capable of delivering a consistent 5.5 volts to your re-

ceiver from any 2- or 3-cell Li-Po battery. There is even a battery indicator LED built in to alert you
of your battery’s condition. The Li-Po regulator can be connected to any available receiver channel.

SpecificationS

Continuous Maximum Current 3.5A

Input Voltage 5.5 –12.6V

Output voltage 5.5V

Input Connector Types EC2

Output Connector Types standard servo connector

Dimensions (LxHxW) 35.5mm x 6.4mm x 25.8mm

Weight 19 g

LeD Battery inDicator

LED STATUS

2-CELL Li-Po

3-CELL Li-Po

Solid

Battery is charged above 7.6V

Battery is charged above 11.4V

Flashing

Recommended charging before flying

Battery is between 6.6 and 7.6V

Battery is between 9.9 and 11.4V

No LED

(connected battery)

DO NOT fLy BEfORE CHARGING

Battery is below 6.6V

Battery is below 9.9V

Der E-flite 2 bis 3 S Spannungsregler liefert 5,5 Volt konstante Empfängerstromversorgung aus
jedem 2–3S Li-Po Akku. Das Gerät ist mit einer Akkustatus Indikator LED ausgestattet. Der Li-Po
Spannungsregler kann an jeden beliebigen Kanal angeschlossen werden.

SpeZifiKationen

Maximaler Dauerstrom 3,5A

Eingangsspannung 5,5 –12,6V

Ausgangsspannung 5,5V

Anschlußtyp Stecker EC2

Anschlußtyp Ausgang Standard Servoanschluß

Maße 35,5mm x 6,4mm x 25,8mm

Gewicht 19 g

LeD aKKuStatuS inDiKator

LED STATUS

2-S Li-Po

3-S Li-Po

Leuchtet

Akku ist überhalb 7,6 V geladen

Akku ist überhalb 11,4 V geladen

Blinkt

Laden vor dem flug empfohlen!

Akkuspannung zwischen 6,6 und 7,6 V

Akkuspannung zwischen 9,9 und

11,4 V

Keine LED

(bei angeschlos-

senem Akku)

NICHT fLIEGEN, ERST LADEN!

Akkuspannung unter 6,6 V

Akkuspannung unter 9,9 V

Le régulateur de tension E-flite pour batterie 2 et 3S est conçu pour délivrer une tension constante
de 5.5V à votre récepteur à partir de n’importe quelle batterie Li-Po 2 ou 3S. Il est également
équipé d’une DEL indiquant l’état de votre batterie. Le régulateur de tension pour batterie Li-Po
peut être connecté à n’importe quelle voie disponible du récepteur.
caractériStiqueS techniqueS

Intensité maximale en continu 3,5A

Frein Désactivé Tension d’alimentation 5,5 –12,6V

Tension délivrée 5,5V

Prise d’alimentation EC2

Connecteurs des câbles de sortie Prise de servo standard

Dimensions 35,5mm x 6,4mm x 25,8mm

Masse 19 g

DeL D’état De La Batterie

STATUT DE LA DEL

BATTERIE Li-Po 2S

BATTERIE Li-Po 3S

Fixe

La tension de la batterie est au

dessus de 7.6V

La tension de la batterie est au

dessus de 11.4V

Clignotante

Charge recommandée avant d’effectuer un vol

Tension de la batterie située entre

6.6V et 7.6V

Tension de la batterie située entre

9.9V et 11.4V

Eteinte

(Batterie connectée)

NE PAS VOLER SANS AVOIR EffECTUE UNE RECHARGE

La tension de la batterie est en

dessous de 6.6V

La tension de la batterie est en

dessous de 9.9V

Il regolatore E-flite 2 o 3 celle LiPo è in grado di ricavare una tensione di 5,5V per alimentare il
ricevitore da qualsiasi batteria LiPo 2 o 3 celle. C’è anche un indicatore a LED per informare sulle
condizioni della batteria. Questo regolatore si può collegare a qualsiasi canale libero del ricevitore.

Specifiche tecniche

Corrente massima continua 3,5A

Voltaggio in ingresso 5,5 –12,6V

Voltaggio in uscita 5,5V

Tipo di connettori ingresso EC2

Tipo connettori uscita Connettore servocomandi standard

Dimensioni 35,5mm x 6,4mm x 25,8mm

Peso 19 g

inDicatore a LeD per La Batteria

STATO DEL LED

2-CELL Li-Po

3-CELL Li-Po

Fisso

Batteria carica oltre 7,6V

Batteria carica oltre 11,4V

Lampeggiante

Si consiglia di caricare prima di volare

Batteria tra 6,6 e 7,6V

Batteria tra 9,9 e 11,4V

Spento

(batteria collegata)

NON VOLARE PRIMA DI CARICARE

Batteria sotto 6,6V

Batteria sotto 9,9V
