E-flite P-47D Thunderbolt 400 ARF User Manual
Page 21

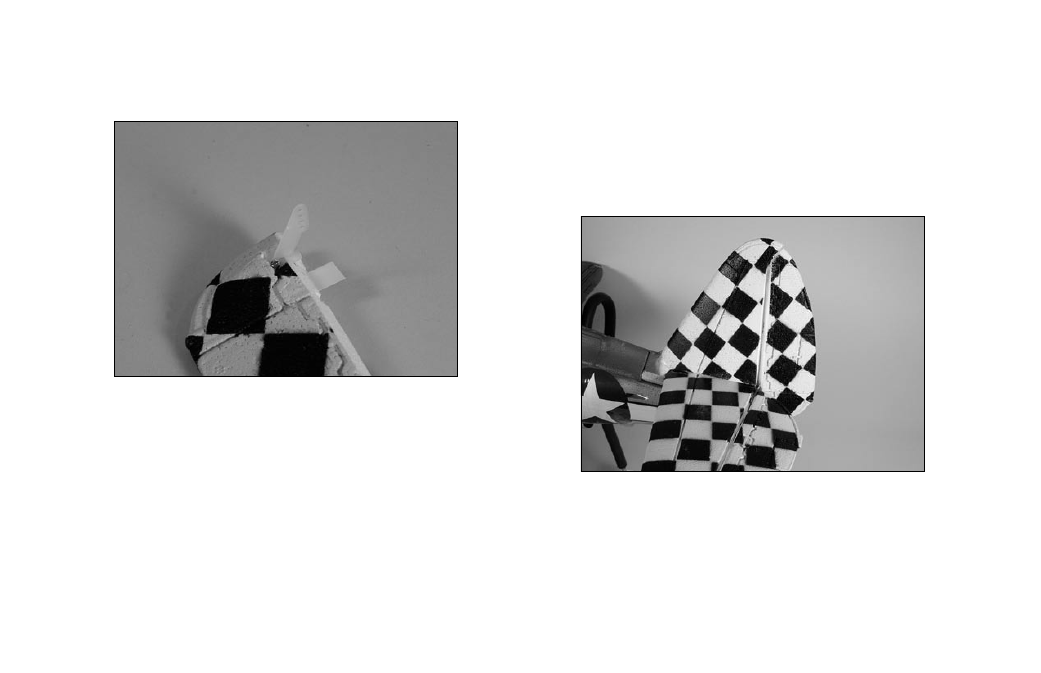

5. Install the control horn using the control horn
backplate and the two control horn screws.
6. Cut three slots in the fin for the rudder hinges.
Test the fit of the rudder to ensure the bevel and
hinge gap allow for plenty of travel without
binding. Once you have everything fit and
moving freely, use foam-safe CA to glue the
hinges to the fin and fuselage.
21
