E-flite P-47D Thunderbolt 400 ARF User Manual

Page 11



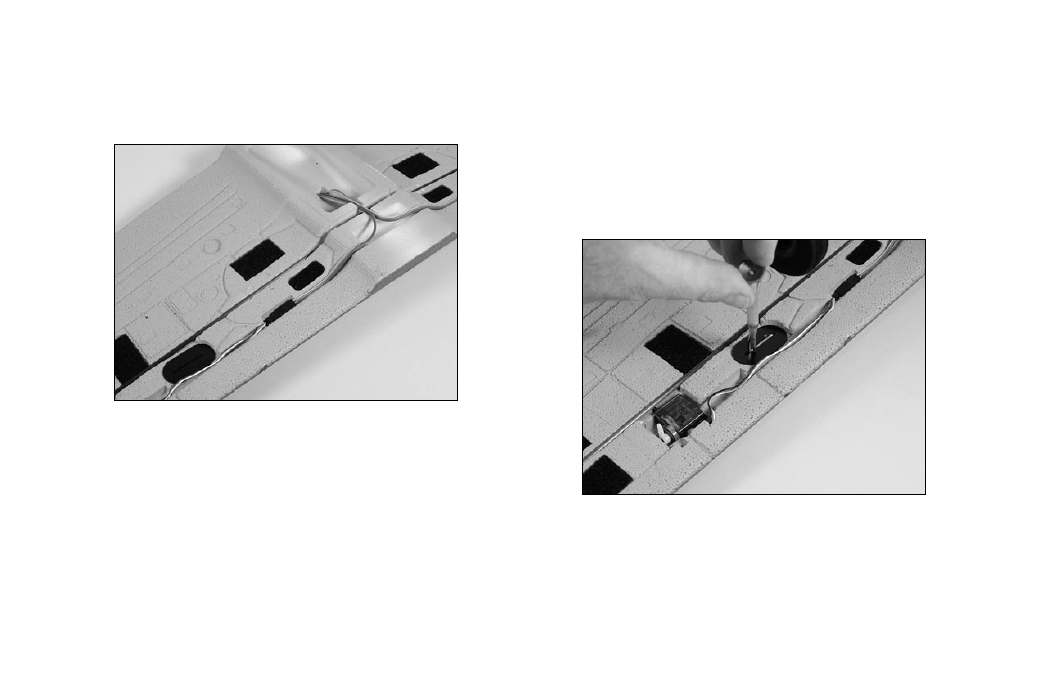

3. Attach the Y-Harness to both servos. Route the

single lead of the Y-Harness through the hole in
the center of the wing.

Hint: Use tape to secure the servo leads to the

Y-Harness so they won’t accidentally unplug.

Note: If using a radio with the appropriate

mixing capability, two 12" servo extensions

can be used instead of the Y-Harness for the

aileron servos.

Note: The landing gear is optional and can be

left off when flying from rough surfaces or tall

grass that could damage the gear. Skip to

Step 6 if the landing gear will not be installed.



4. Attach the main landing gear using four landing

gear mounting screws (2mm x 6mm).
