3 E-flite F-15 Eagle ARF Assembly Manual

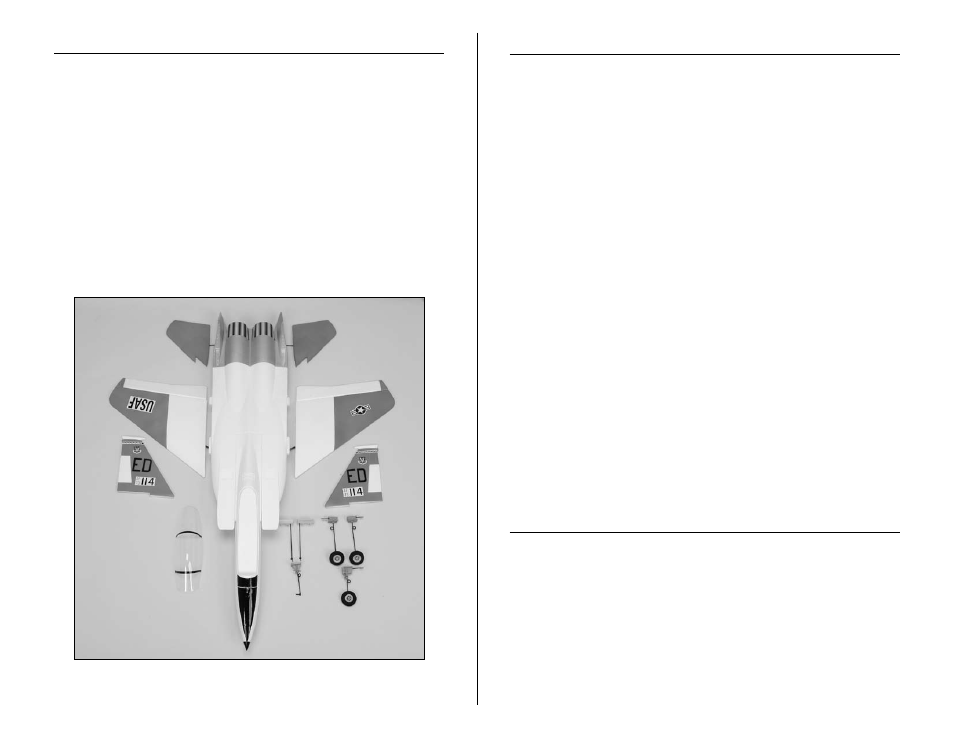

Contents of Kit/Parts Layout
Large Parts:
EFL7051 Wing Set
EFL7052 Fuselage
EFL7053 Main Hatch
EFL7054 Horizontal Stab Set
EFL7055 Vertical Fin Set
EFL7056 Power Hatch
EFL7057 Landing Gear Set
EFL7058 Wheel Set
EFL7059 Pushrod Set
EFL7060 Canopy
EFL7061 Decal Set
EFL7062 Retracts
Required Radio Equipment
You will need a minimum 4-channel transmitter, crystals, receiver,
and five sub-micro servos. You can choose to purchase a
complete radio system. If you are using an existing transmitter,
just purchase the other required equipment separately. We
recommend the crystal-free, interference-free Spektrum ™ DX6i
2.4GHz DSM ® 6-channel system. If using your own transmitter,
we recommend the E-flite ® S75 Sub-Micro Servos.
If you own the Spektrum DX6i radio, just add the AR6100E
DSM2 ™ 6-channel receiver and five (to eight) of our E-flite S75
Sub-Micro Servos.
Complete Radio System
SPM6600 DX6i DSM 6CH system
Or
SPMAR6100E AR6100E DSM2 6-Channel Receiver
Ultralite (for DX6i or DX7)
And
EFLRS75 7.5-gram Sub-Micro Servo (5–8)
(if using retracts)
EFLREX12L 12-inch Servo Extension, Lightweight (2)
(Optional retracts)
EFLREX18L 18-inch Servo Extension, Lightweight (3)
EFLRYH3 3-inch Y-Harness, Lightweight
(3 required, 4 when installing retracts)
Motor Setup
EFLM1340DF 420 Ducted Fan Brushless Outrunner,
3800Kv (2 required)
EFLA312b 40-amp Brushless ESC (2 required)
EFLB21003S 2100mAh 3-Cell 11.1V Li-Po (2 required)
