E-flite F-15 Eagle DF ARF User Manual
Page 14
14
E-flite F-15 Eagle ARF Assembly Manual

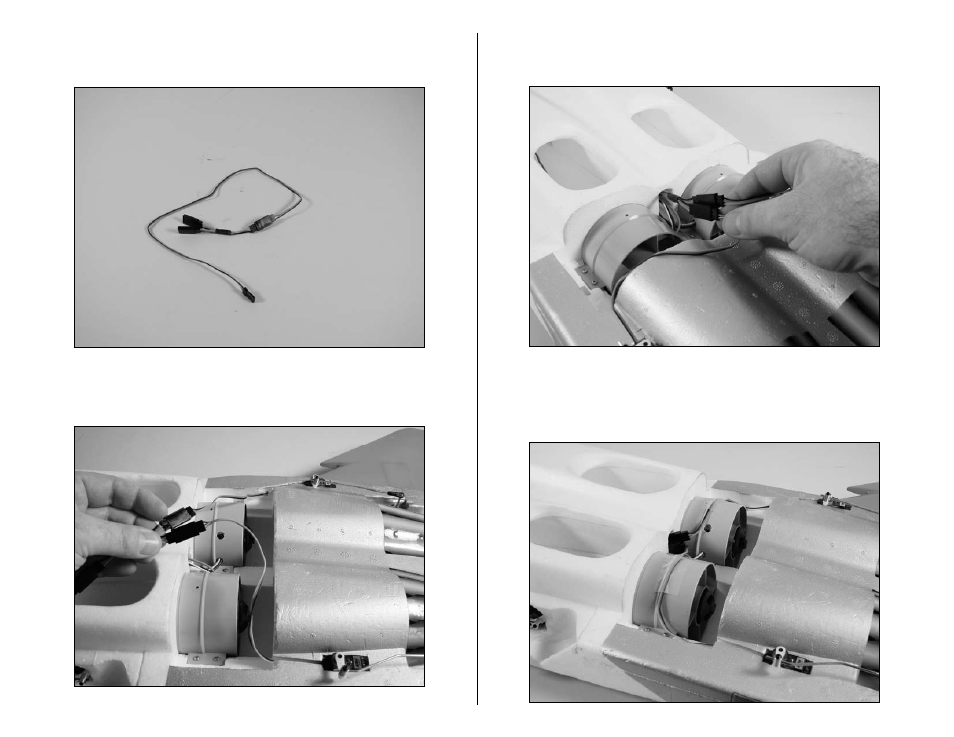

11. Secure a lightweight Y-harness to a lightweight
18-inch (457mm) servo extension.
12. Secure the elevator servos to the Y-harness using
string or a commercially available connector.
13. Slide the servo extension into the opening between
the fan tunnels at this time.
14. Use clear tape to secure the elevator servo leads
to the fan shroud. This will prevent the wiring from
interfering with the operation of the fans.
