E-flite Sukhoi SU-26m 480 ARF - Manual (Page 5)

5 E-flite Sukhoi SU-26m 480 ARF Assembly Manual
Make sure the wheel can rotate freely. If not, loosen
the 3mm lock nut so the 3mm nut can be backed
away from the wheel. Retighten the assembly
and check that the wheel can rotate freely.
 5. Repeat Steps 2 through 4 for the remaining wheel.
Optional Wheel Pants Installation
Required Parts
Fuselage assembly
Wheel pant (left and right) (EFL2863)
2mm x 4mm wood screw (4)
Required Tools and Adhesives
Phillips screwdriver: #1

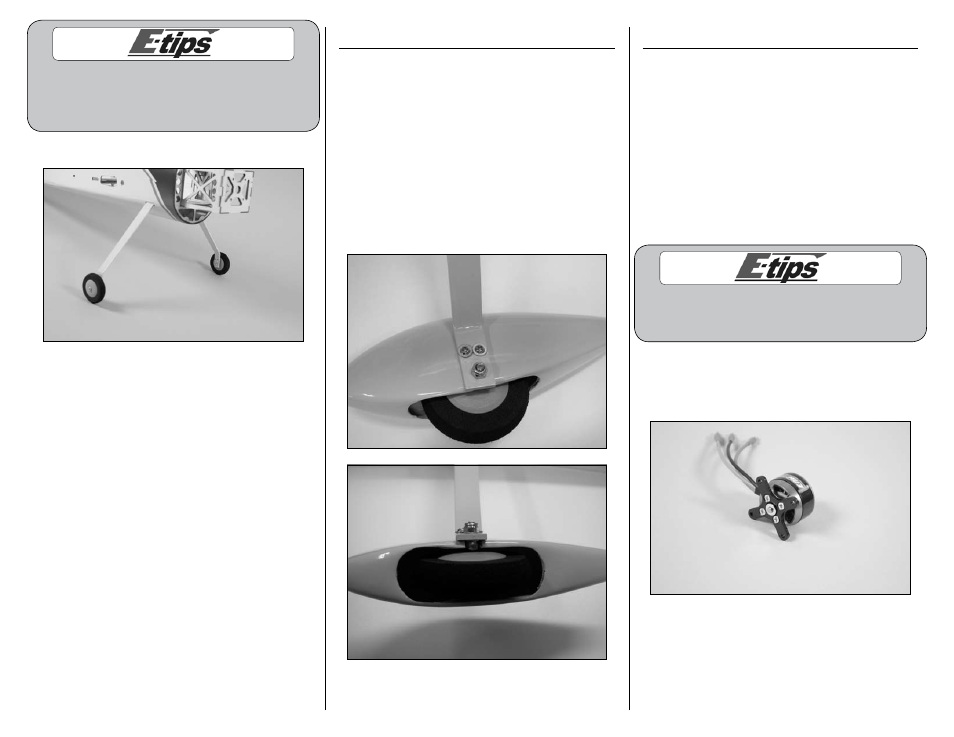

 1. Slide the wheel pant over the wheel. Use two
2mm x 4mm sheet metal screws to secure the
wheel pant to the landing gear. Use a #1 Phillips
screwdriver to tighten the screws. Repeat for
opposite side.
Outrunner Motor Installation
Required Parts
Fuselage Radio system
3S Li-Po battery
Plywood X-mount spacers (2)
Brushless motor with mounting hardware
Electronic speed control
4-40 x 5/8-inch socket head screw (4)
#4 washer (4)
Required Tools and Adhesives
Threadlock Tie wrap
Hex wrench: 3/32-inch
Phillips screwdriver: #2
This section covers the installation of the recommended
Park 480 Outrunner motor. The holes in the firewall
match the mounting pattern of the X-mount.
 1. Attach the supplied aluminum motor X-mount to
the motor using the screws provided with the motor.
Make sure to use threadlock on the screws before
tightening them with a #2 Phillips screwdriver.
