12 E-flite Sukhoi SU-26m 480 ARF Assembly Manual

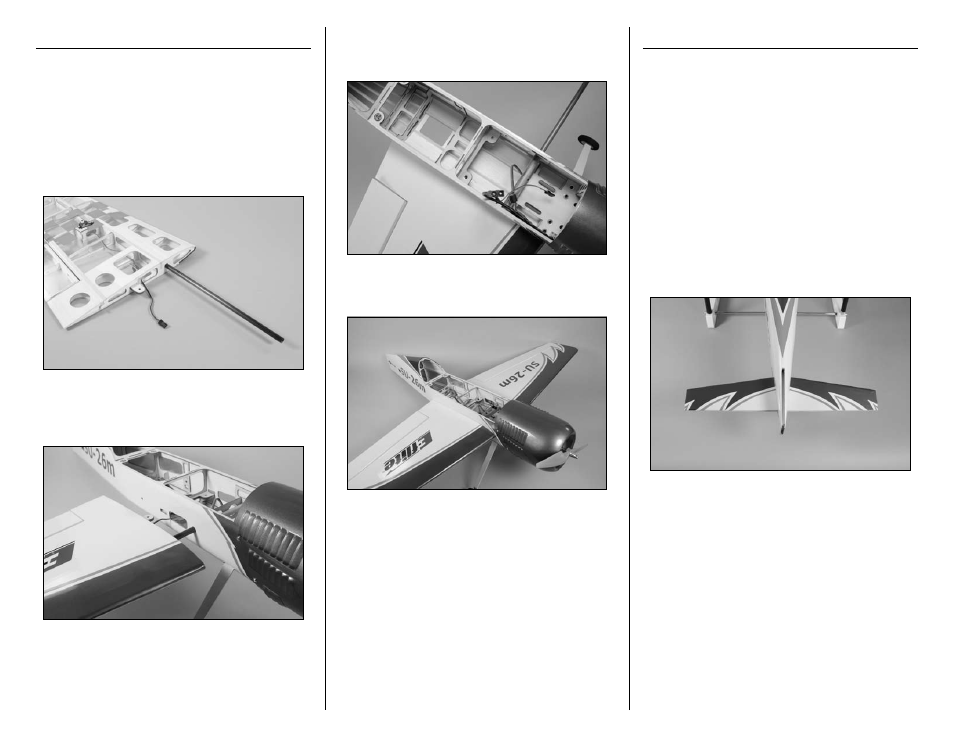

Wing Installation
Required Parts
Fuselage Wing (right and left)
Wing tube #4 washer (2)
4-40 x 3/8-inch machine screw (2)
Required Tools and Adhesives
Hex wrench: 3/32-inch
 1. Slide the wing tube into one of the wing panels.
 2. Slide the wing panel with tube into position on
the fuselage. Make sure to guide the aileron servo
extension in the hole in the side of the fuselage.
 3. Secure the panels using a 4-40 x 3/8-inch
machine screws and #4 washers. Use a 3/32-inch
hex wrench to tighten the socket head screw.
 4. Repeat Steps 2 and 3 to attach the remaining
wing panel to the fuselage.
Stabilizer and Elevator
Required Parts
Fuselage w/wing installed
Stabilizer Elevator
CA hinge (6)
Micro control horn with backplate
Required Tools and Adhesives
Hobby knife Felt-tipped pen
Ruler T-pins
Thin CA Medium CA
Sandpaper Paper towls
Hobby knife with #11 blade
 1. Position the stabilizer into the slot in the aft end
of the fuselage. Check that the stabilizer is centered
in the fuselage.
