E-flite Sukhoi SU-26m 480 ARF User Manual
Page 20

20
E-flite Sukhoi SU-26m 480 ARF Assembly Manual

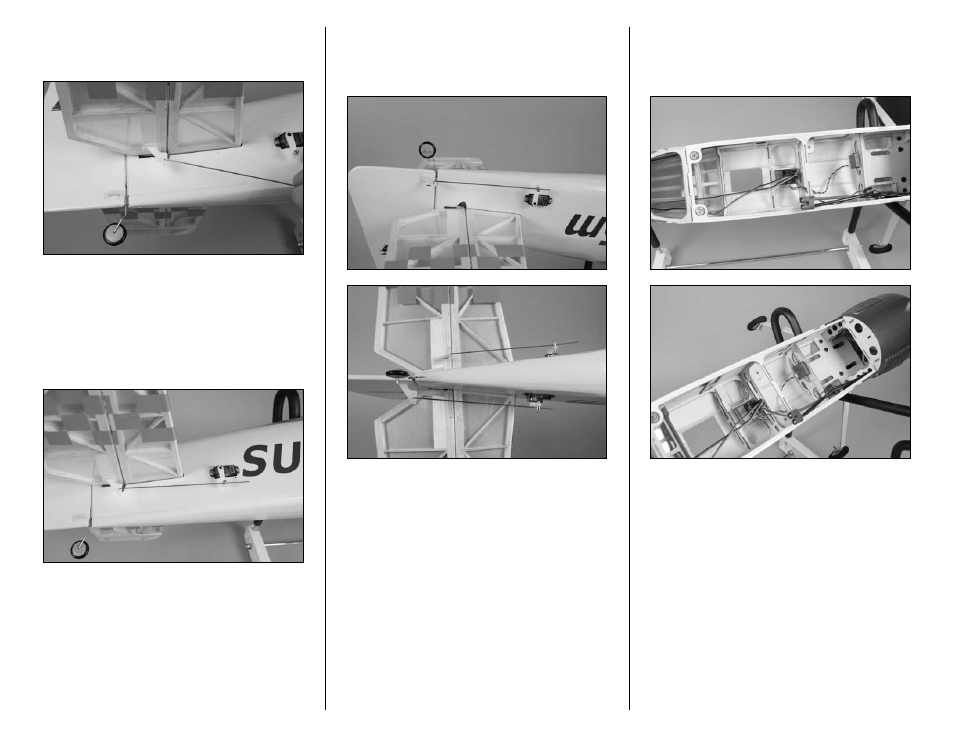

8. Insert the bend in the 4
1
/
2
-inch (115mm)
pushrod wire into the middle hole of the elevator
control horn.
13. With the radio system on, make sure to center
the elevator trim and stick. Make sure the elevator
servo is operating properly using the transmitter.
Slide the pushrod wire through the micro connector
on the servo horn. Center the elevator, and secure
the position of the wire using the 2mm x 4mm
screw and a #0 Phillips screwdriver.
14. Repeat Steps 1 though 13 to install the rudder
servo and linkage. The linkage will also connect to
the center hole of the rudder control horn and to
the outside hole of the 3D servo horn.
15. Use hook and loop tape to mount the receiver
and remote receiver in the fuselage. Plug the
elevator, rudder and speed control leads into the
appropriate ports of the receiver.
