Model 5600SE Downflow
6
Control Start-up Procedures
Display
In normal operation the Time Of Day display alternates with Volume Remaining display. As treated water is used, the
Volume Remaining display counts down (in gallons) from a maximum value to zero or (----). Once this occurs a
regeneration cycle initiates immediately or delayed to the set Regeneration Time. Water flow through the valve is
indicated by the flashing Flow Dot Indicator.
Set Time of Day
When the valve is In Service, push either the Set Up or Set Down button once to adjust the Time Of Day by one digit.
Push and hold to adjust by several digits.

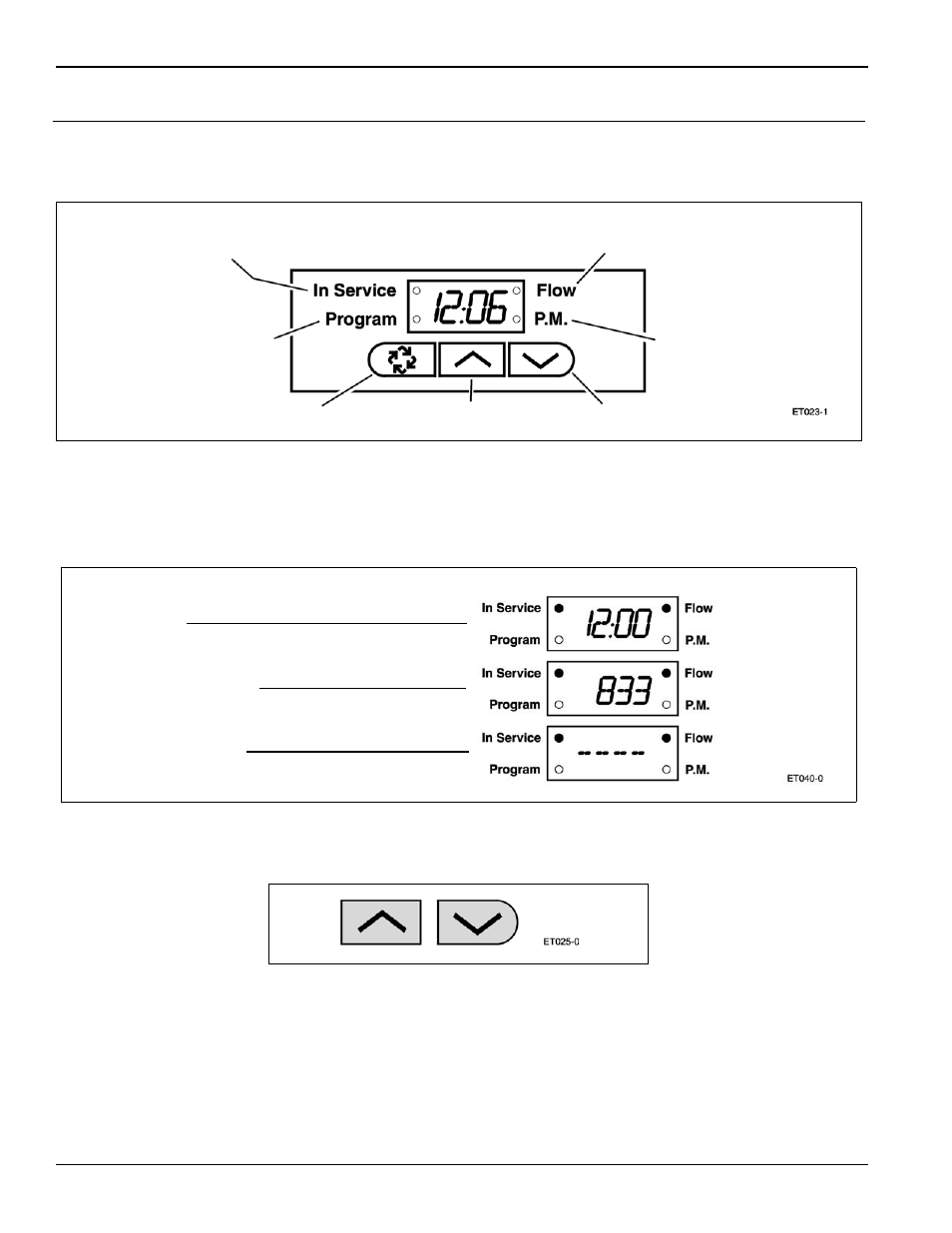

Figure 1: 5600SE Display
Figure 2: Time of Day and Volume Remaining
Figure 3: Set Up and Set Down Buttons
P.M. indicator
Set Down button
Water Flow - Flashing Dot
Set Up button Extra Regeneration button
Program Mode - Dot On
Valve In Service - Dot On
Regeneration Tonight - Flashing Dot
Time of Day
833 gallons of treated
0 gallons of treated
water remaining
water remaining
