Model 5600SE Downflow
24
2310 Safety Brine Valve

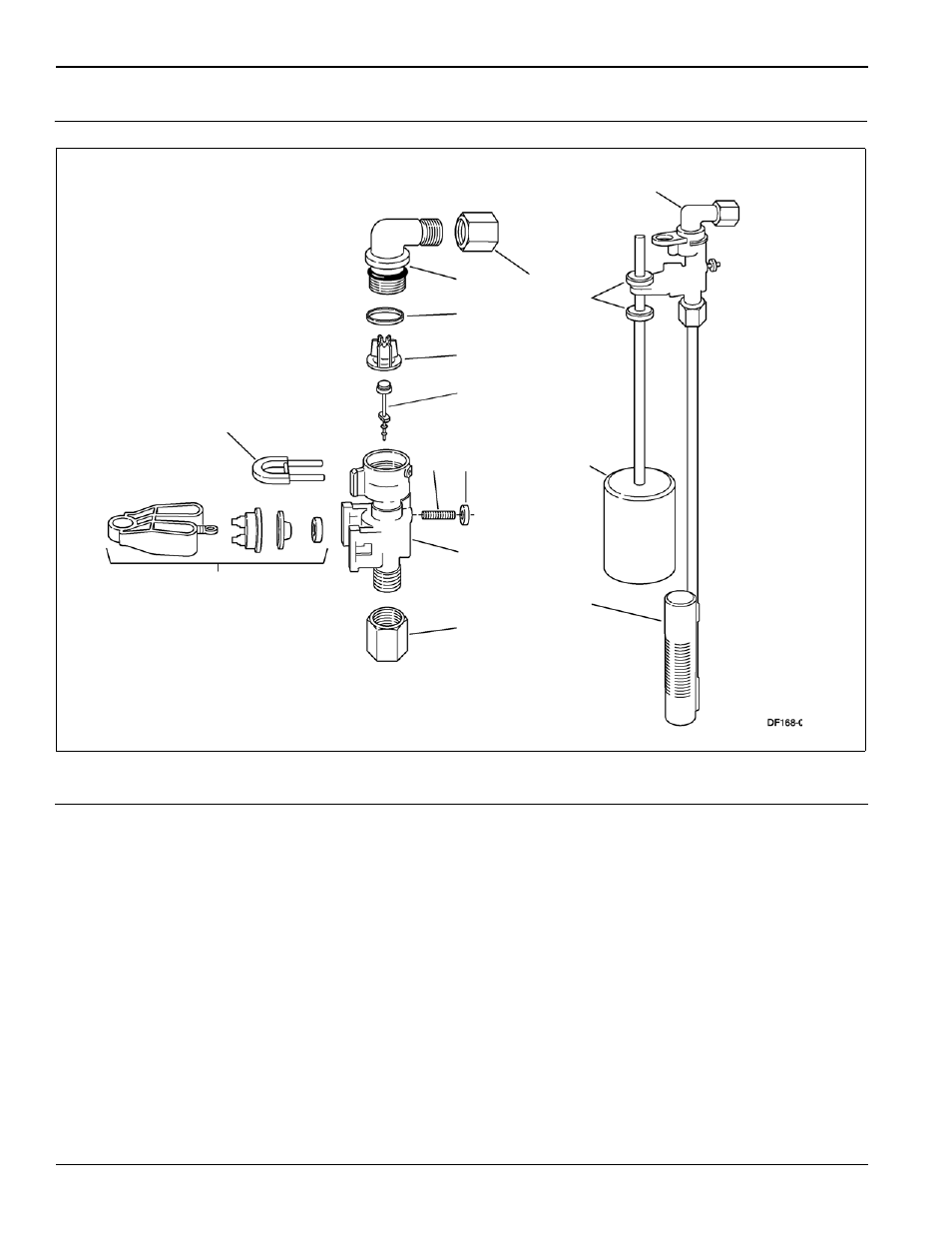

Figure 21: 2310 Safety Brine Valve
Item Number No. Req’d Part Number Description
1 1 19645 safety brine valve body
2 1 19803 safety brine valve arm assembly
3 1 19804 stud, 10-24
4 1 19805 nut, 10-24
5 1 19652-01 poppet and seal
6 1 19649 flow dispenser
7 1 11183 o-ring, 017
8 1 19647 elbow, safety brine valve
9 2 19625 nut assembly, 3/8
10 1 18312 retaining clip
11 1 60014 safety brine valve, 2310 (includes items 1-10)
12 2 10150 grommet (included with item 13)
13 1 60068 float assembly, 2310
14 1 60002 500 air check assembly
