Watts Fleck 5600 Plastic Valve - Manual (Page 22)

Model 5600SE Downflow
22
Bypass Valve Assembly, Brass

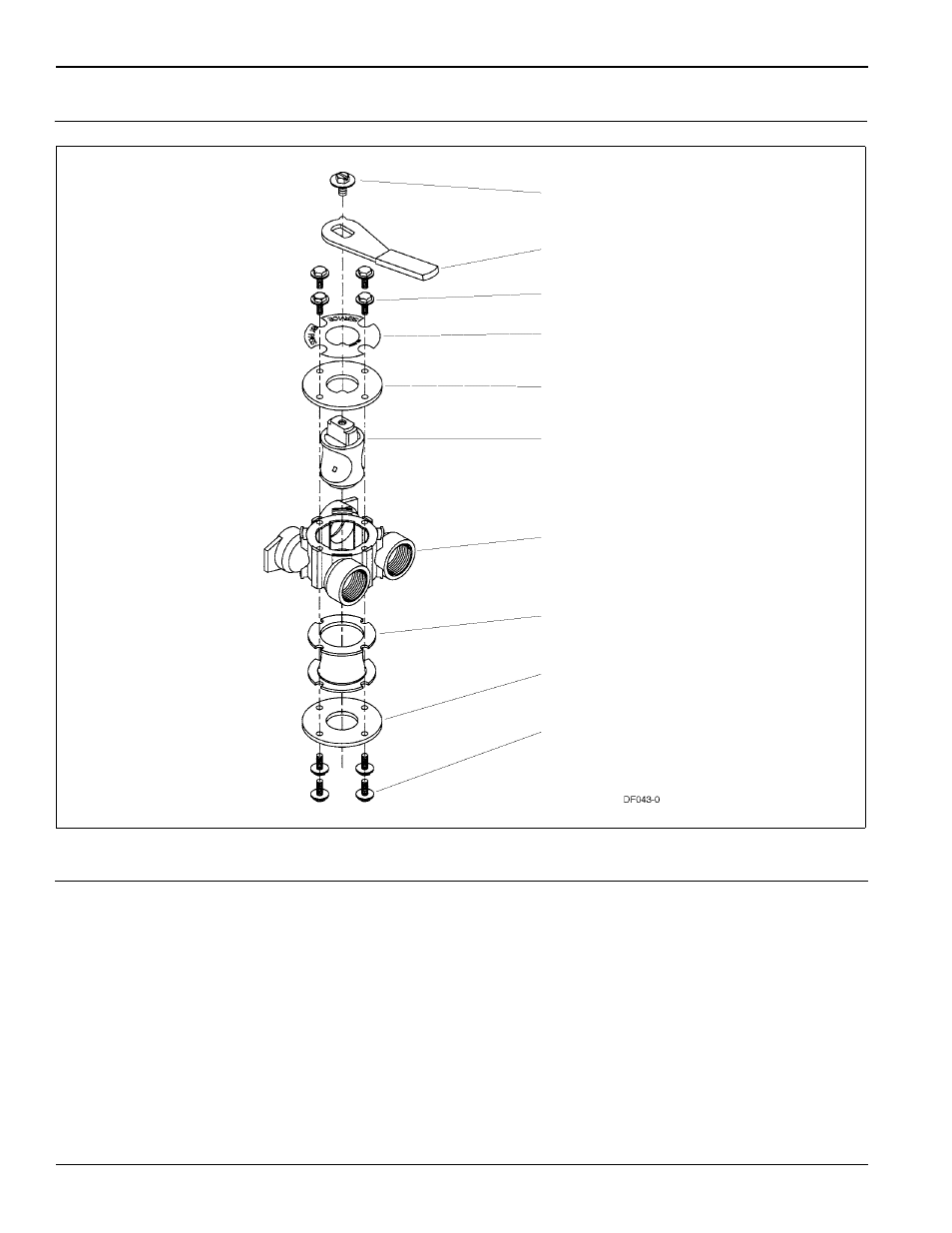

Figure 19: Bypass Valve Assembly, Brass
Item Number No. Req’d Part Number Description
1 1 17290 bypass valve body, 3/4"
1 17290NP bypass valve body, 3/4" nickel plated
1 13399 bypass valve body, 1"
1 13399NP bypass valve body, 1", nickel plated
2 1 11726 seal, bypass
3 1 11972 plug, bypass
4 1 11978 side cover
5 1 13604-01 label
6 8 15727 screw
7 1 11986 side cover
8 1 11979 lever, bypass
9 1 11989 screw, hex head, 1/4-14
