5

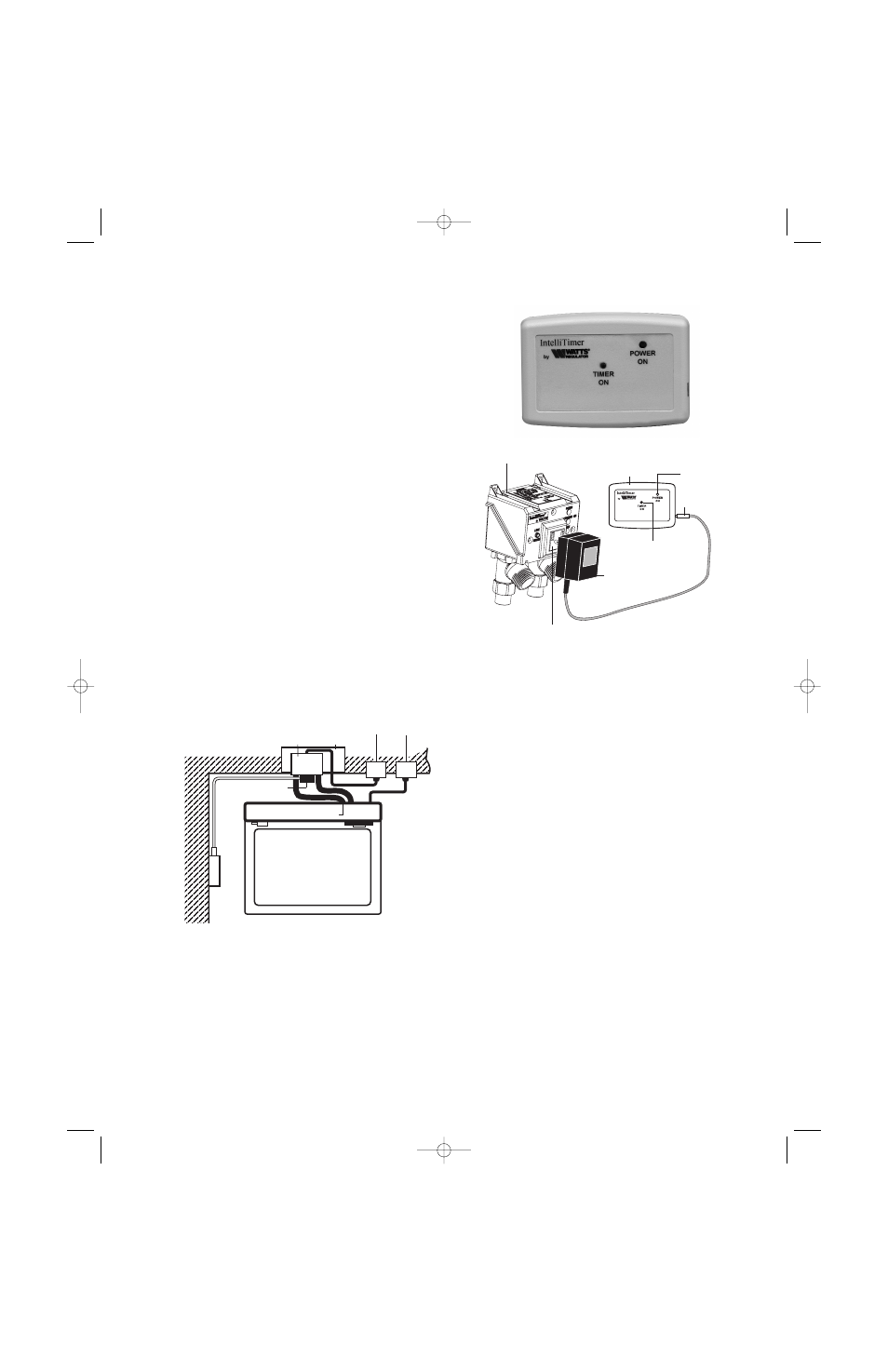

Accessories: Watts A2-IntelliTimer
Push On
Push Off
Power Lamp
Power Jack
Low Voltage
Power Supply
IntelliFlow ®
Power Outlet
IntelliFlow ®
Power Cord
IntelliTimer
The Watts A2-IntelliTimer is an optional accessory used in con-
junction with the Watts IntelliFlow
® Automatic Washing Machine
Shutoff Valve. It is a remote timer which allows the IntelliFlow ® to
be used in applications where the washing machine or a combi-
nation washer/dryer is 240VAC powered. (The IntelliFlow
® is not
compatible with 240VAC powered appliances). The timer initi-
ates a two-hour cycle when the button is depressed.
The A2-IntelliTimer low voltage power supply is plugged into
the IntelliFlow
® power outlet. The remote solid-state timer is
installed in a location that is convenient to the user and connect-
ed to the low voltage power supply.
Activation of the push button on the timer causes current flow,
which is detected by the IntelliFlow
® . The IntelliFlow ® then actu-
ates the solenoid valves, allowing water to flow to the washing
machine. This also begins a timing sequence of two hours,
which, upon its completion de-energizes the IntelliFlow
® , shut-
ting off the flow of water to the washing machine. The timing
sequence can be interrupted by activating the push button a
second time.
A Green LED is illuminated whenever the A2-IntelliTimer is energized.
Note: For calibration procedure see Page 4, “Calibration using
IntelliTimer Accessory”.
Typical Installation
IntelliFlow ®
Washer Hoses
Washing
Machine
Low Voltage
Power Supply
IntelliTimer
Wall Box
Power to
IntelliFlow
®
Power to
Washing
Machine
120
VAC
240
VAC
