Watts Divertaflo M9400 Series - Manual

For use on
Autotrol Control Valves
SPECIAL FEATURES OF M9400 VALVES
• Rugged/durable brass bypass valve.
• Streamlined/compact/good looking.
• Dependable/very easy to operate/easy to service.
• Eliminates the need for a grounding strap.
• Maximum flow/great performance.
• Simplest valve available.
• Each valve has flow arrows plus "in" and "out" and "drain"
markings cast into the body.
• Same performance as our regular Divertaflo valve series - push
rods are interchangeable.
• Available in three valve models ( 3 ⁄ 4 " (20mm) sweat, 3 ⁄ 4 " (20mm)
NPT and 1" (25mm) sweat piping).
• All valves offer a 1 ⁄ 2 " (15mm) F.I.P. threaded drain port.
• All valves offered in the Custom Label series.
• Phillips pan head screws normally furnished with each valve.
• Screw mounting hole pattern is wider than on current fiber
glass valves. This makes screw installation much easier.
• Plenty of finger room to install/tighten the regular brass mount-
ing screws. Unlike present fiberglass valves, there is no neces-
sity to furnish special carriage mounting bolts.
Parts List
Item Description
P/N Qty. Per Valve
End cap, rod 44442 1
Push rod 44441 1
O-rings, valve 34443 2
Valve body, brass (see styles below) 1
3 ⁄ 4 " sweat M400 —
1" sweat M401 —
3 ⁄ 4 " F.I.P. M402 —
Nut, brass mtg. hex 65700-2 4
Screw, brass mtg. 3 ⁄ 4 " (20mm) 65700-4 4
O-ring, large manifold 65831 2
O-ring, small manifold 65830 1
Hardware Kit (complete package for one valve - P/N 60034)
* A complete valve push nut including four lubricated rings is
available (P/N 4444)
IS-M9400
""DDIIVVEERRTTAAFFLLOO""

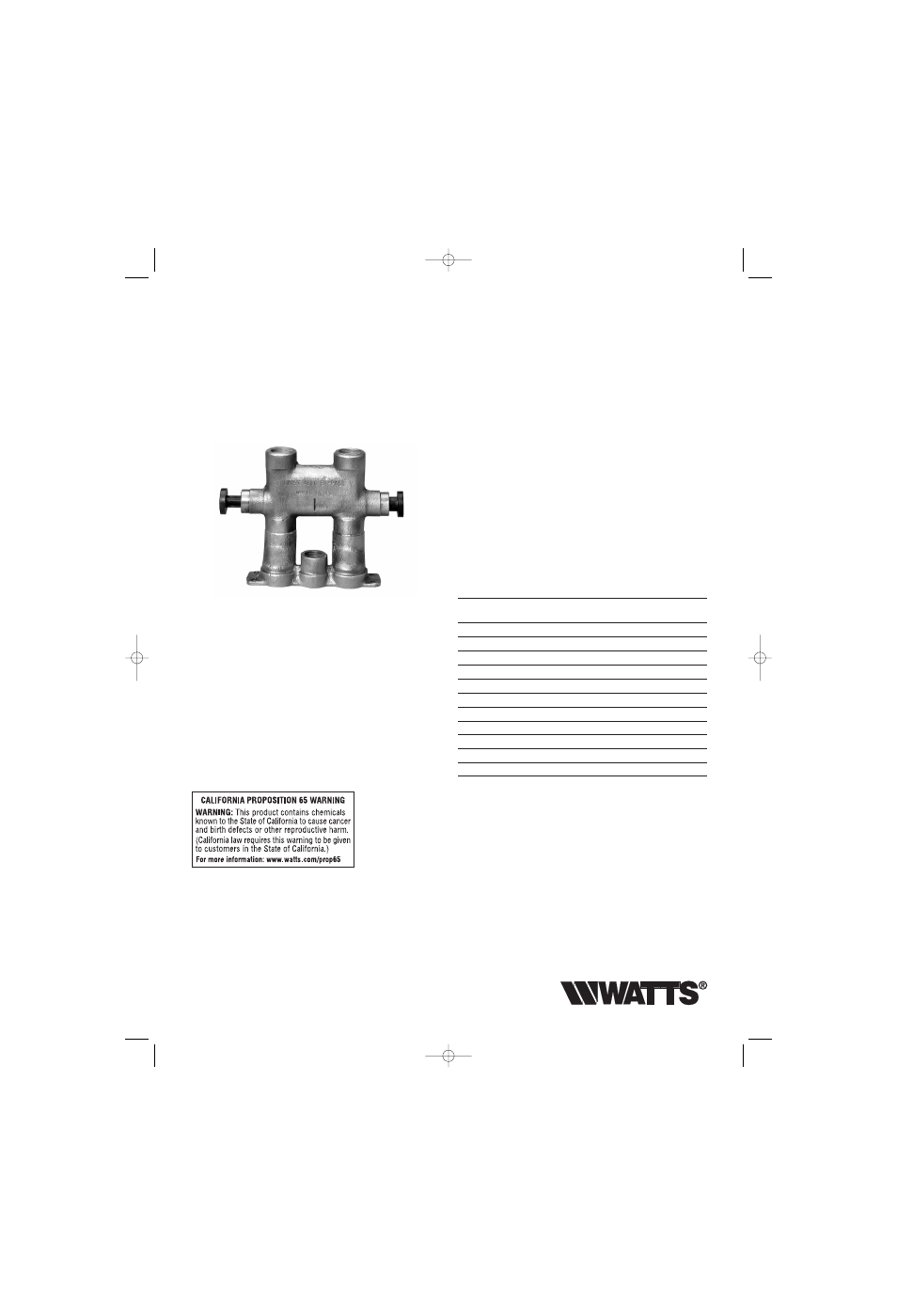

1" copper sweat shown (P/N M9401)
Also available
{ 3 ⁄ 4 " (20mm) copper sweat (P/N M9400)
3 ⁄ 4 " (20mm) F.I.P. thread (P/N M9402)
Limited Warranty: Watts Regulator Co. (the “Company”) warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of origi-
nal shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge.
THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES,
EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or con-
sequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges,
delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be
invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product.
Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limita-
tions may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your
rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT.
Series M9400 Valves
Brass Bypass Valve
