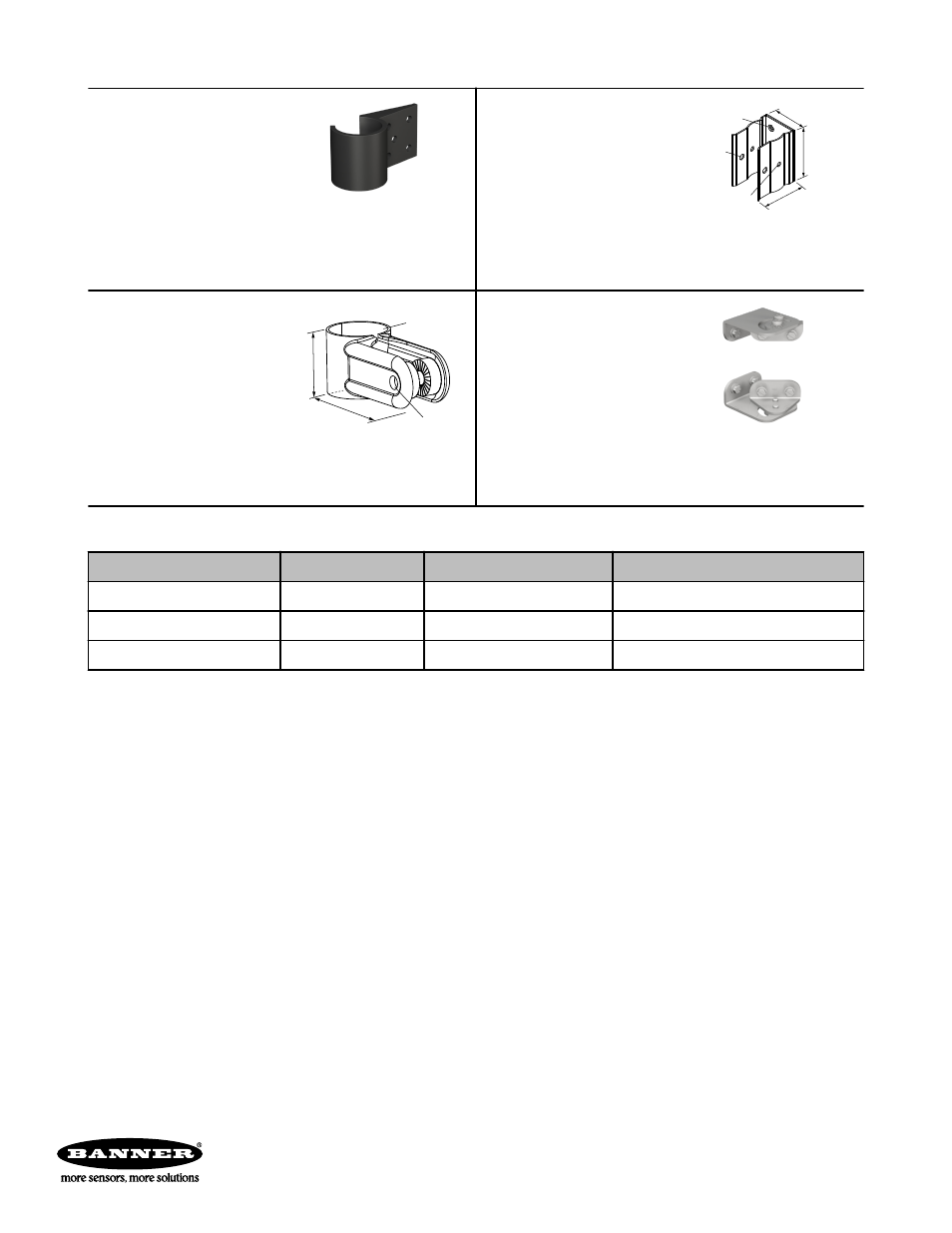

Banner PVD100 Pallet Sensor - Manual (Page 9)

SMBPVA2
• Set of 4 molded brackets
• Snaps onto standard 28
mm (1.1 in) diameter pipe
• 2 required per sensor
SMBPVA7
• One-piece bracket for
mounting to 28 mm (1.1 in)
diameter pipe
• Black-painted steel
• Requires SMBPVA..C for
mounting at an angle ±90°
A
B
C
32
51
41
A = M4 x 0.5, B = ø 5.2, C = ø 4.2
SMBPVA8
• Heavy-duty 2-part bracket
mounts to 28 mm (1.1 in)
diameter pipe
• Cold-rolled steel with zinc
finish
• Requires SMBPVA..C for
mounting
A=ø 30.5, B=ø 7.1
65
33
A
B
SMBPVA9
• Pair of two-piece swivel
brackets
• Mount directly to sensor or
to PVD or PVA protective
brackets
• Designed for mounting
sensor to "look down"
Retroreflective Tape
Model Reflectivity Factor Maximum Temperature Size
BRT-THG-1-100 0.7 +60 °C (+140 °F) 25 mm (1 in) wide, 2.5 m (100 in) long
BRT-THG-2-100 0.7 +60 °C (+140 °F) 50 mm (2 in) wide, 2.5 m (100 in) long
BRT-THG-3-100 0.7 +60 °C (+140 °F) 75 mm (3 in) wide, 2.5 m (100 in) long
Banner Engineering Corp Limited Warranty
Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of
shipment. Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture which, at the time it is returned
to the factory, is found to have been defective during the warranty period. This warranty does not cover damage or liability for misuse,
abuse, or the improper application or installation of the Banner product.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (IN-
CLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND
WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR TRADE USAGE.
This Warranty is exclusive and limited to repair or, at the discretion of Banner Engineering Corp., replacement. IN NO EVENT SHALL
BANNER ENGINEERING CORP. BE LIABLE TO BUYER OR ANY OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPEN-
SES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES RESULTING FROM ANY
PRODUCT DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER ARISING IN CONTRACT OR WAR-
RANTY, STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE.
Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any obligations or
liabilities relating to any product previously manufactured by Banner Engineering Corp.
PVD Series Parts Verification Sensor
