Output Rating
150 mA maximum
OFF-state leakage current: less than 10 microamps
ON-state saturation voltage: NPN — less than 1V dc at
150 mA; PNP — less than 2V dc at 150 mA
Output Protection
Protected against false pulse on power-up and short
circuit of outputs
Output Response Time
400 ms (includes standard 100 ms ON-delay and 100
ms OFF-delay)
Delay at Power-Up
Less than 1.0 second
Connections
5-conductor PVC-jacketed 2 m (6.5 ft) cable which is
either unterminated or terminated with a 5-pin Euro-
style quick-disconnect connector, depending on model.
Cable diameter is 3.3 mm (0.13 in).
Environmental Rating
NEMA 2; IEC IP62
Operating Conditions
Temperature: 0 °C to +50 °C (+32 °F to +122 °F)
Humidity: 90% at +50 °C maximum relative humidity
(non-condensing)
Certifications

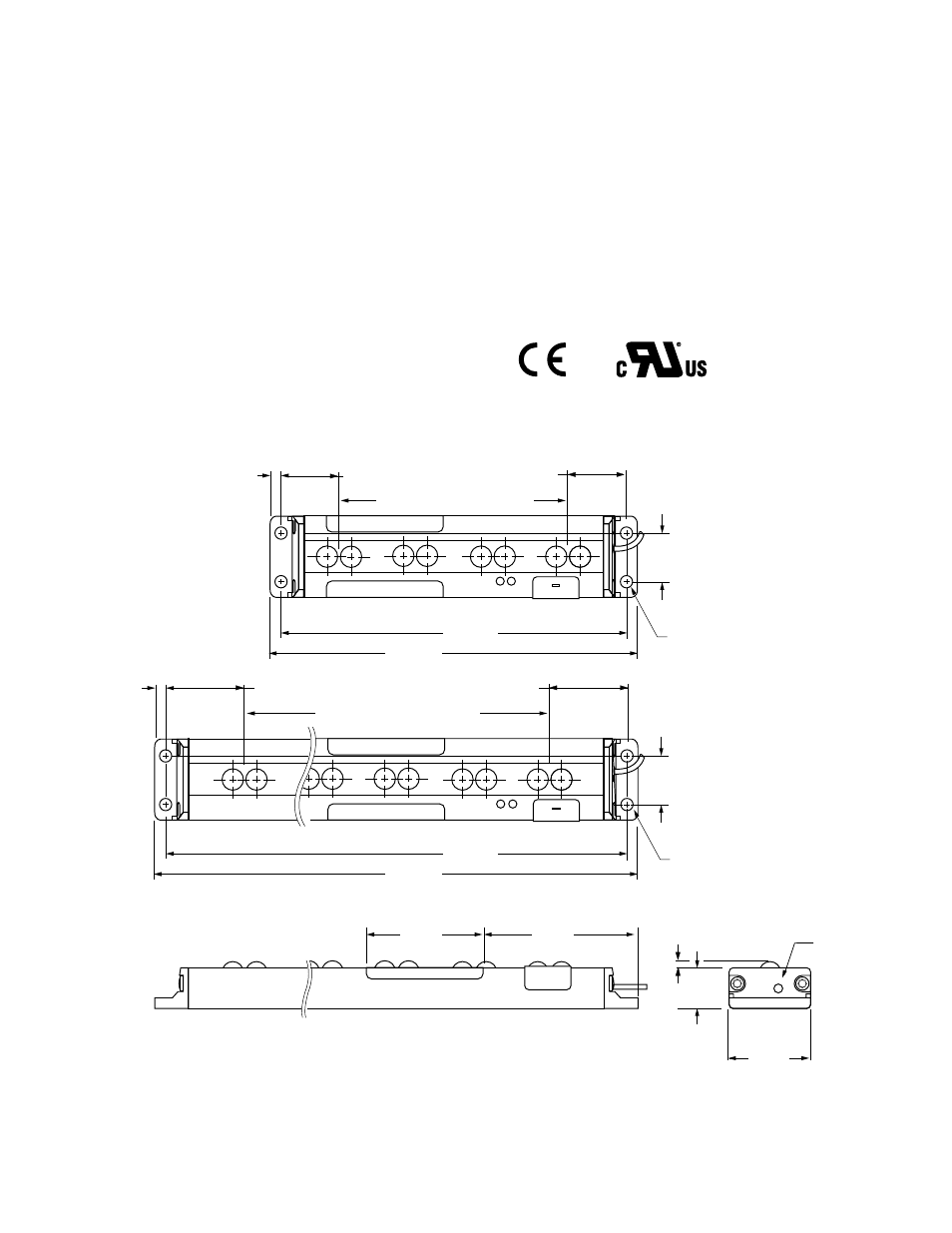

Dimensions
MODE
MODE
266.4 mm
(10.49")
258.6 mm
(10.19")
71.8 mm
(2.83")
43.2 mm
(1.70")
4 x ø4.45 mm
(0.175")
15.0 mm
(0.59")
30.0 mm
(1.18")
Cable
18.0 mm
(0.71")
137.8 mm
(5.43")
130.0 mm
(5.12")
3.9 mm
(0.15")
3.9 mm
(0.15")
4 x ø4.45 mm
(0.175")
18.0 mm
(0.71")
21.1 mm
(0.83") 22.1 mm
(0.83")
29.2 mm
(1.15") 29.2 mm
(1.15")
Minimum Object Detection Zone
Minimum Object Detection Zone
1.4 mm
(0.06")
PVD Series Parts Verification Sensor
