Status Indicators/Troubleshooting
MODE
Status Indicator #1
Status Indicator #2

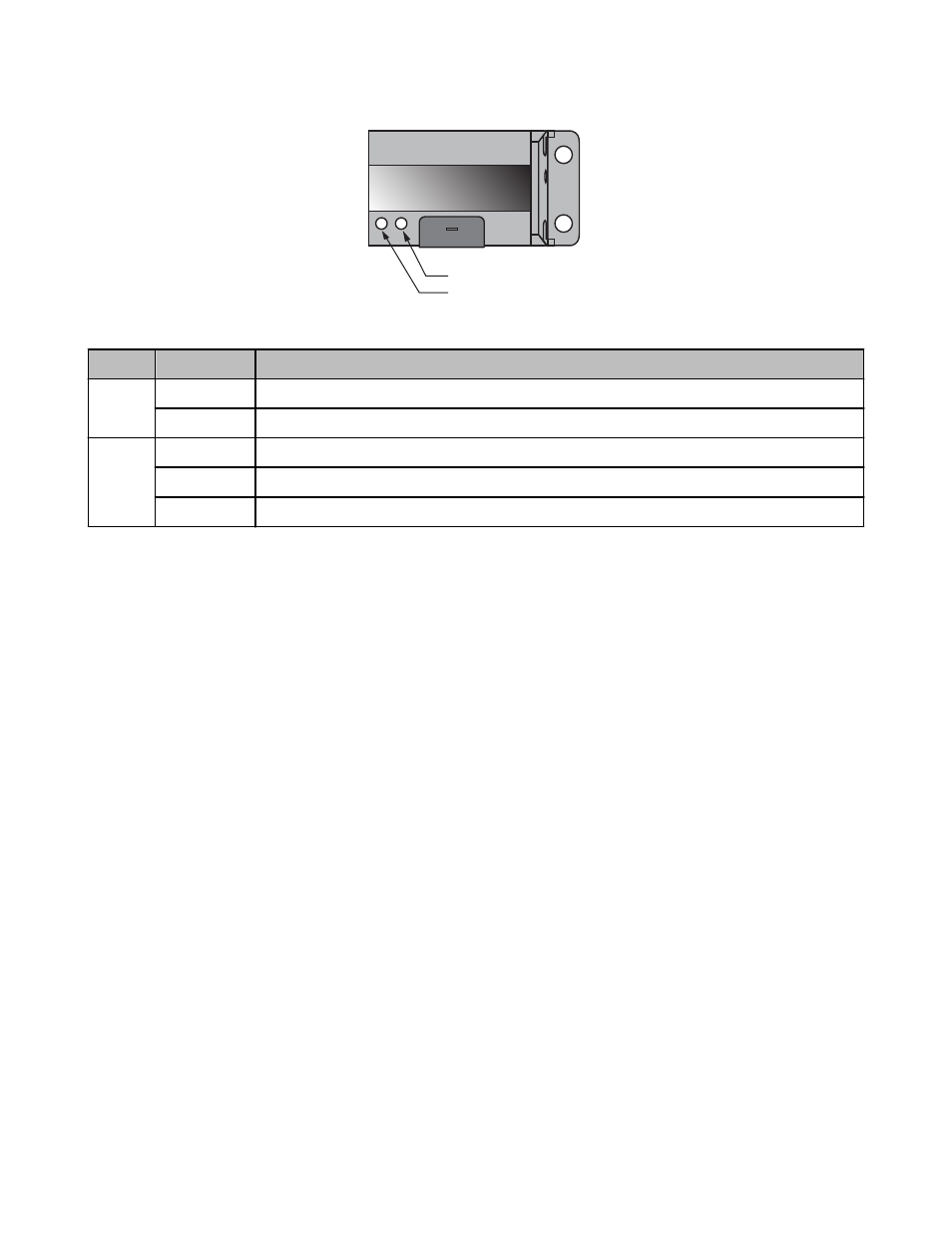

Figure 7. Status indicators
Indicator Condition Description
#1 Steady Yellow Output is active (Changing Switch #2 to N.C. turns the yellow indicator ON when the system is clear)
OFF Output is inactive (Changing Switch #2 to N.O. turns the yellow indicator ON when the system is blocked)
#2 Steady Green Power is ON and system is OK
Flashing Green Blanking is enabled
OFF Power is OFF
Specifications
Supply Voltage and Current
Input Voltage: 12 to 30V dc (10% maximum ripple at
10% duty cycle)
Input Current: Less than 40 mA @ 24V dc and less
than 70 mA @ 12V dc (exclusive of load)
Supply Protection Circuitry
Protected against reverse polarity and transient over-
voltages
Sensing Beam
Visible red, 630 nm
Sensing Range
Retroreflective applications: 2 m (6.5 ft) using 25
mm (1 in) wide retroreflective tape
Diffuse applications: 400 mm (15.7 in) with 18% re-
flectivity gray card target
Sensing Height
4-channel models: 111 mm (4.4 in)
8-channel models: 240 mm (9.4 in)
Beam Spacing
28.6 mm (1.125 in)
Output Configuration
User-selectable via DIP switch:
1 open-collector PNP (current sourcing) or 1 open-col-
lector NPN (current sinking)
Sensing Resolution
See Dimensions on page 6 for Minimum Object De-
tection Zone
Retroreflective: 51 mm at 406 mm range, 100 mm at
2 m (2.0 in dia. at 16 in range, 3.9 in at 6.5 ft); see
Figure 2. Minimum object detection size (retroreflective
operation)
on page 2
Diffuse: 55 mm dia. at 400 mm range (2.16 in at 15.7
in range)
Indicators
Green LED: Power ON/OFF
Yellow LED: Output ON/OFF
Job Light (Diffused Green LED): Turned ON and OFF
by applying an external signal to the Job input (white
wire). The job lights will be active high or active low,
depending on DIP switch 4 selection.
Error Light (Diffused Red LED): Turned ON and OFF
by detection of an output event when job light is not
ON.
Adjustments
4 DIP switches, located behind access panel (default
setting is ON position)
Construction
Black painted aluminum housing; acrylic lenses; ther-
moplastic polyester end caps; thermoplastic elastomer
programming switch cover; stainless steel mounting
brackets and hardware
PVD Series Parts Verification Sensor
