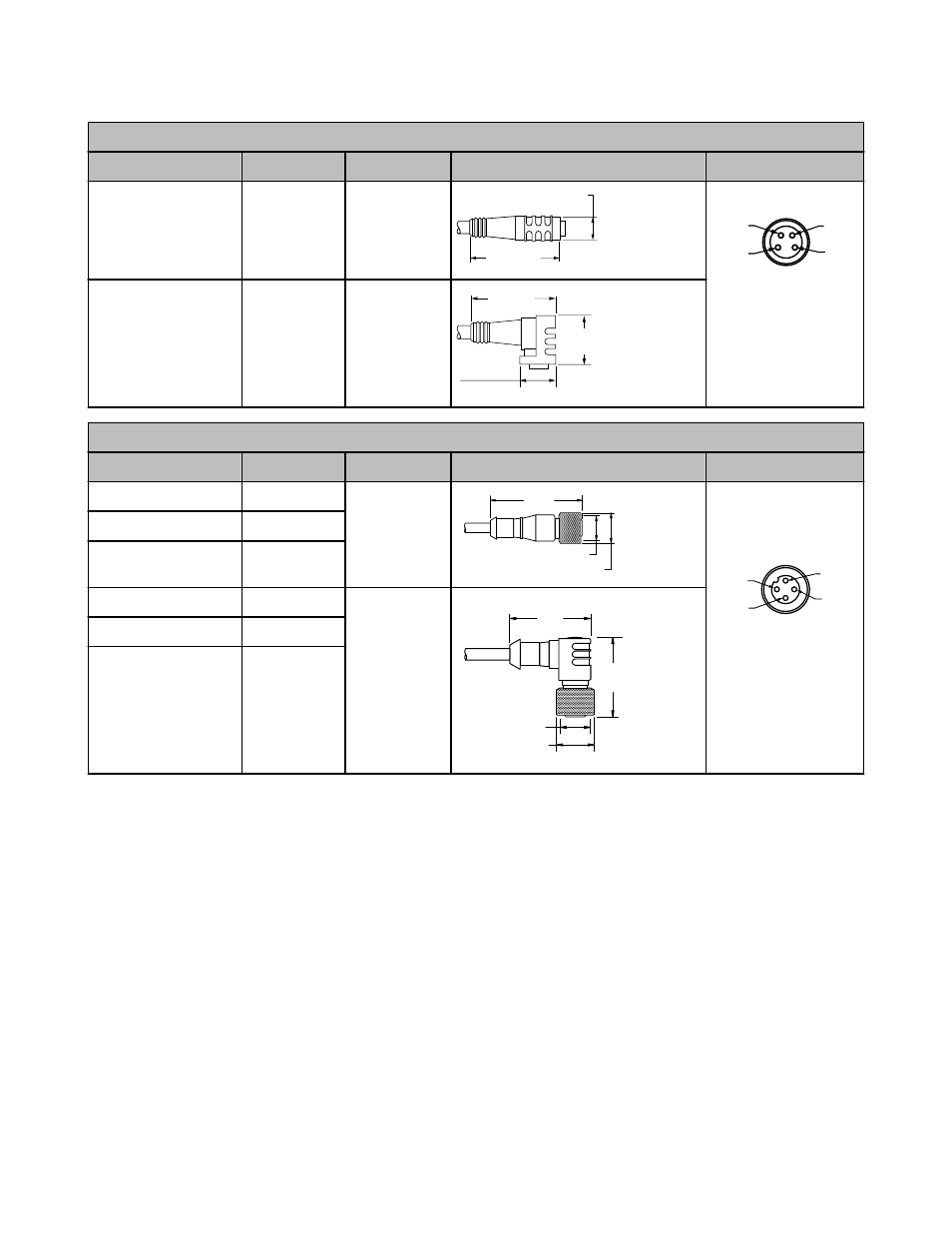

Quick-Disconnect (QD) Cordsets
4-Pin Snap-On M8/Pico-Style Cordsets with Shield
Model Length Style Dimensions Pinout
PKG4S-2 2.00 m (6.56 ft) Straight ø10 mm max.
(0.4")
28 mm max.
(1.1")
4
3 1
2
1 = Brown
2 = White
3 = Blue
4 = Black
PKW4ZS-2 2.00 m (6.56 ft) Right Angle
20 mm
(0.8")
25 mm max.
(1.0")
ø12 mm max.
(0.5")
4-Pin Threaded M12/Euro-Style Cordsets with Shield
Model Length Style Dimensions Pinout
MQDEC2-406 1.83 m (6 ft) Straight
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
1 = Brown
2 = White
3 = Blue
4 = Black
MQDEC2-415 4.57 m (15 ft)
MQDEC2-430 9.14 m (30 ft)
MQDEC2-406RA 1.83 m (6 ft) Right-Angle
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
MQDEC2-415RA 4.57 m (15 ft)
MQDEC2-430RA 9.14 m (30 ft)
