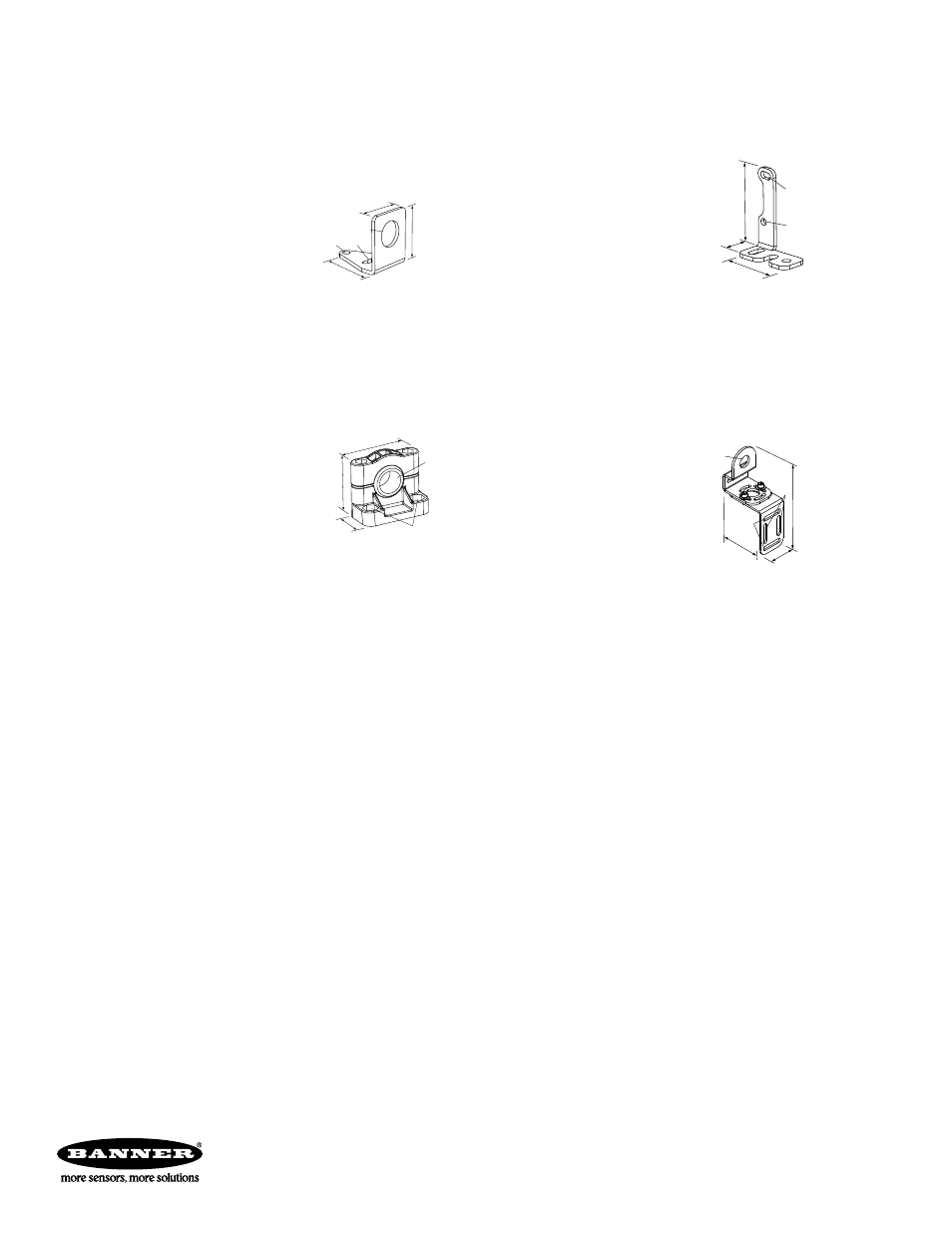

Mounting Brackets
All measurements are listed in millimeters.
SMB18A
• Right-angle mounting
bracket with a curved slot
for versatile orientation
• 12-ga. stainless steel
• 18 mm sensor mounting
hole
• Clearance for M4 (#8)
hardware
30
41
46
A B
C
Hole center spacing: A to B = 24.2
Hole size: A = ø 4.6, B = 17.0 × 4.6, C = ø 18.5
SMBQS18RA
• Right-angle mounting
bracket
• 14-ga. 304 stainless steel
42
17
32
A
B
Hole center spacing: A to B=20.3
Hole size: A =4.3 × 9.3, B=ø 4.3
SMB18SF
• 18 mm swivel bracket with
M18 × 1 internal thread
• Black thermoplastic polyester
• Stainless steel swivel locking
hardware included
B
A
51
42
25
Hole center spacing: A = 36.0
Hole size: A = ø 5.3, B = ø 18.0
SMB18UR
• 2-piece universal swivel
bracket
• 300 series stainless steel
• Stainless steel swivel lock-
ing hardware included
• Mounting hole for 18 mm
sensor
137
64
42
B
A
C
Hole center spacing: A = 25.4, B = 46.7
Hole size: B = 6.9 × 32.0, C = ø 18.3
