Teaching Minimum and Maximum Limits
General Notes on Programming
• The sensor returns to Run mode if the first TEACH condition is
not registered within 120 seconds.
• After the first limit is taught, the sensor remains in Program mode
until the TEACH sequence is finished.
• To exit Program mode without saving any changes, press and
hold the programming push button for more than 2 seconds (be-
fore teaching the second limit). The sensor reverts to the last
saved limits.
Output OFF Output ON Output OFF
Minimum
Limit
Maximum
Limit
Output ON Output ON Output OFF
Minimum
Limit
Maximum
Limit
Normally Closed Operation
Normally Open Operation

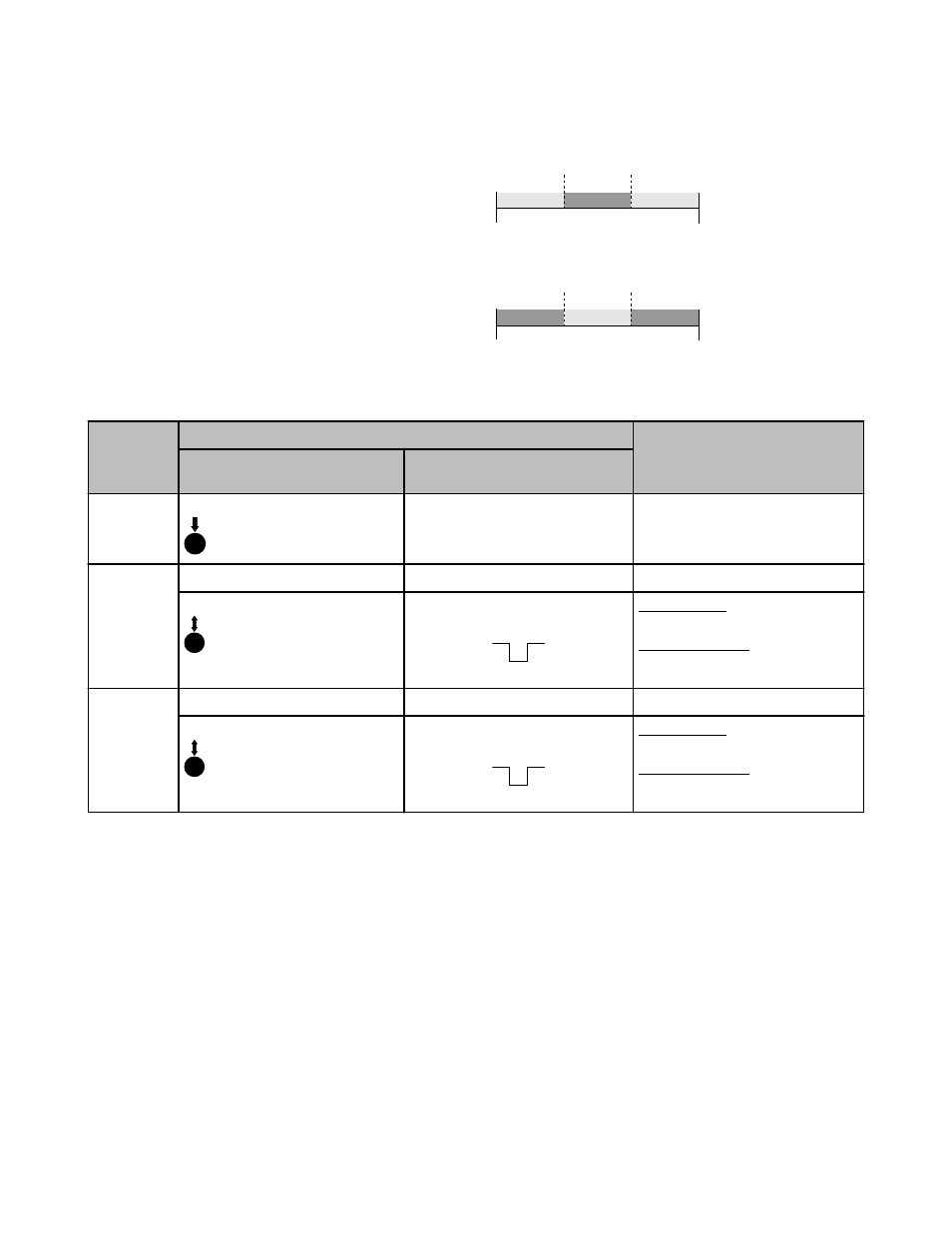

Figure 3. Teaching independent minimum and maximum
limits
Procedure Result
Push Button (0.04 sec ≤ Click ≤ 0.8
sec)
Remote Line (0.04 sec < T < 0.8 sec)
Programming
Mode
Press and hold push button No action required; sensor is ready for 1st
limit teach Output LED: ON Red
Power LED: ON Green (good signal) or
ON Red (no signal)
Teach First
Limit
Position the target for the first limit Position the target for the first limit Power LED: Must be ON Green
"Click" the push button Single-pulse the remote line
T
Teach Accepted
Output LED: Flashing Red
Teach Unacceptable
Output LED: ON Red
Teach Second
Limit
Position the target for the second limit Position the target for the second limit Power LED: Must be ON Green
"Click" the push button Single-pulse the remote line
T
Teach Accepted
Output LED: Yellow or OFF
Teach Unacceptable
Output LED: Flashing Red
