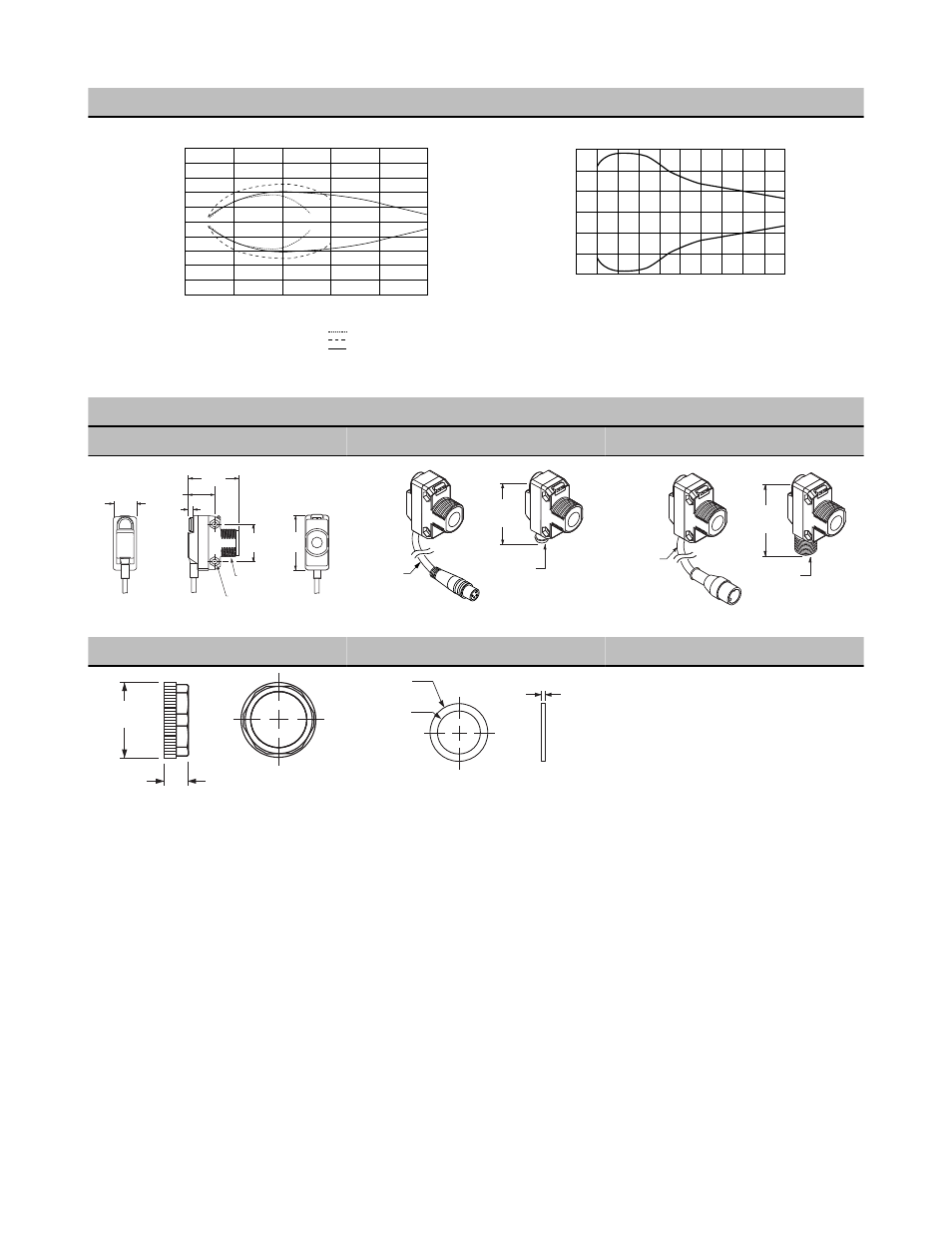

QS18U Effective Beam Pattern (Typical) QS18U Maximum Target Rotation Angle
Lateral Distance (mm) -20
-10
-30
-40
10
20
0
30
40
50
-50
0 200 100 300 400 500
Sensing Distance (mm) 2.5 mm rod
8 mm rod
50 mm x 50 mm plate
Target Rotation
Sensing Distance (mm)
-5°
-10°
-15°
5°
0
10°
15°
0 100 200 300 400 500
Dimensions
Cabled Models Pico-Style QD Models Euro-Style QD Models
15.0 mm
(0.59")
33.5 mm
(1.32")
3 mm
(0.12")
17.1 mm
(0.67")
24.1 mm
(0.95")
35.0 mm
(1.38")
M18 x 1 Thread
Max. Torque 2.3 Nm (20 in-lbs)
ø 3.3 mm (0.13")
Max. Torque 0.6 Nm (5 in-lbs)
150 mm (6")
Pico-style
Pigtail
41.5 mm
(1.63")
Integral
4-pin
Pico-Style QD
150 mm (6")
Euro-style
Pigtail
49 mm
(1.93")
Integral
4-pin
Euro-Style QD
Locknut (included with all models) Washer (included with all models) M3 Hardware Packet Contents
8.0 mm
(0.32")
24.2 mm
(0.95")
1.6 mm
(0.06")
Ø 17.8 mm
(0.70")
Ø 23.9 mm
(0.94")
• 2 – M3 x 0.5 x 20 mm SS Screw
• 2 – M3 x 0.5 SS Hex Nut
• 2 – M3 SS Washer
WORLD-BEAM QS18U Ultrasonic Sensors
