SM30 Series 30 mm Barrel Sensor
Supply Voltage and Current Emitters: 12 to 240V ac (50/60 Hz) or 10-30V dc at 20 mA, 10% maximum ripple
DC Receivers: 10 to 30V dc at 10 mA maximum (exclusive of load); 10% maximum ripple
AC Receivers: 24 to 240V ac (50/60 Hz)
Supply Protection Circuitry Protected against reverse polarity and transient voltages
Output Configuration DC Receivers: Bi-Modal™ output (PNP sourcing or NPN sinking). Selection of light/dark operate and sourcing or
sinking configuration dependent on hookup.
AC Receivers: SPST solid-state switch; light operate (LO) or dark operate (DO) dependent on model.
Output Rating DC Receivers: 250 mA continuous
Output saturation voltage (PNP & NPN configuration) < 1 volt at 10 mA and < 2 volts at 250 mA
Off-state leakage current < 10 microamps
AC Receivers: Maximum steady-state load capability is 500 mA
Inrush capability: 10 amps for 1 second (non-repeating)
Off-state leakage: current < 1.7 mA rms
On-state voltage drop: < 3.5 volts rms across a 500 mA load; < 5 volts rms across a 15 mA load
Output Protection Circuitry Outputs of dc receivers are short circuit protected
Output Response Time 10 milliseconds on/off
Repeatability “A” frequency models: 1 ms
“B” frequency models: 1.5 ms
“C” frequency models: 2.3 ms
Indicators Internal red LED, visible through the lens or from side of the sensor.
Emitters: Red “Power ON” indicator LED
DC Receivers: Lights whenever receiver sees its modulated light source
AC Receivers: Lights whenever receiver’s output is conducting
Construction Fully epoxy-encapsulated tubular threaded housing, positive sealed at both ends, quad-ring sealed acrylic lens.
Plastic models: 30 mm diameter thermoplastic polyester housing and jam nuts.
Stainless Steel models: 30 mm diameter 303 stainless steel housing and jam nuts.
Environmental Rating Exceeds NEMA 6P and IEC IP67 standards
Connections PVC-jacketed 2 m or 9 m cables or Mini-style quick-disconnect (QD) fitting are available. QD cables are ordered
separately. See page 4.
Operating Conditions Temperature: -40° to +70° C (-40° to +158° F)
Relative humidity: 90% at 50° C (non-condensing)
Certifications

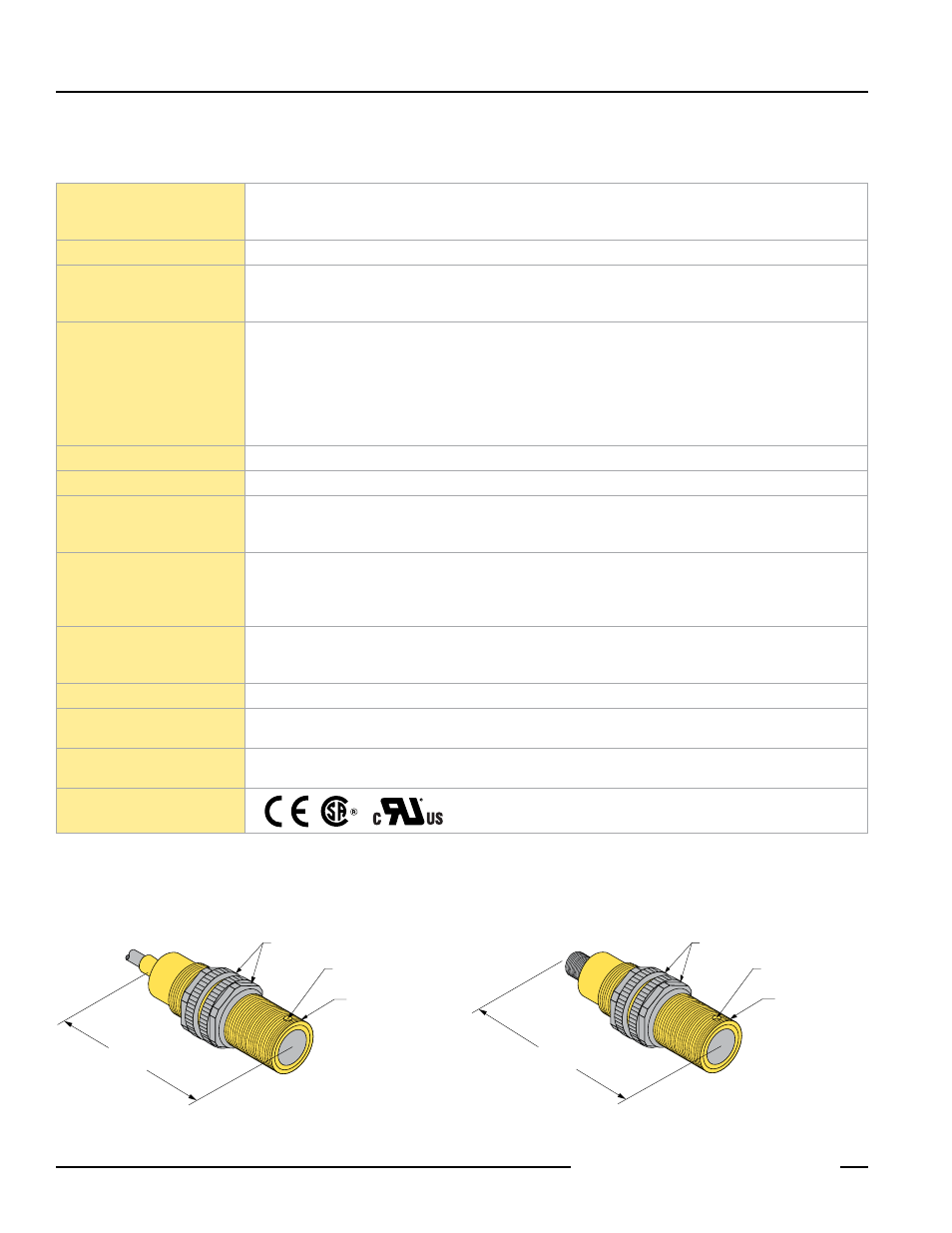

Specifications
Dimensions
Cabled Models QD Models
Jam Nuts
(2 Provided)
Alignment
Indicator (Receivers)
M30 x 1.5
Thread
102 mm
(4.0")
Jam Nuts
(2 Provided)
Alignment
Indicator (Receivers)
M30 x 1.5
Thread
114 mm
(4.5")
